Isolation of DNA polymerase I

1

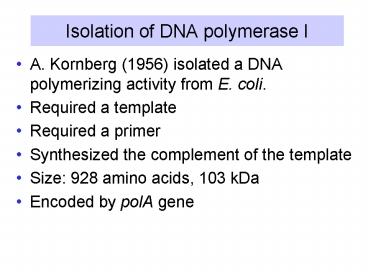

Isolation of DNA polymerase I

• A. Kornberg (1956) isolated a DNA polymerizing
  activity from E. coli.
• Required a template
• Required a primer
• Synthesized the complement of the template
• Size 928 amino acids, 103 kDa
• Encoded by polA gene

2
Reaction catalyzed by DNA Pol I

• Add dNMP (from dNTP) to 3 end of a growing chain
• Release pyrophosphate (PPi)
• Reversible pyrophosphorolysis
• Requires template, primer, Mg, and all 4 dNTPs

3
DNA Pol I adds a nucleotide and releases PPi
4
Subsequent hydrolysis of pyrophosphate
Catalyzed by a separate enzyme
pyrophosphatase Helps drive the reaction forward
(toward synthesis)
5
Exo- vs. Endonucleases

• Exonucleases remove nucleotides from the ends of
  DNA (and/or RNA) molecules.
• Catalyze hydrolysis of phosphodiester bonds
• Will NOT work on circular DNA
• Endonucleases cleave in the middle of DNA (and/or
  RNA) molecules.
• Catalyze hydrolysis of phosphodiester bonds
• DO work on circular DNA

6
DNA Pol I is a 3 to 5 exonuclease

• Provides a proofreading function
• If an incorrect nucleotide is added, the enzyme
  recognizes the mismatch and removes the incorrect
  nucleotide.
• The incorrect nucleotide is removed by
  hydrolysis.
• Proofreading is common to many but not all DNA
  polymerases.

7
Chain elongation by DNA polymerase I
8
Excision of incorrect nucleotide by 3-5
exonuclease activity of DNA polymerase I
9
DNA Pol I is a 5 to 3 exonuclease

• Removes nucleotides in base-paired regions
• Can remove DNA or RNA
• Physiological function appears to be repair of
  damaged DNA and removal of RNA primers from
  Okazaki fragments
• Can be used to label DNA in vitro by nick
  translation
• Not a common activity of other DNA polymerases

10
5 to 3 exonuclease activity
11
DNA Pol I is a multi-domain protein

• Cleavage by the protease subtilisin can separate
  the 5 to 3 exo from the polymerase and
  proofreading 3 to 5 exo.
• Polymerase 3 to 5 exonuclease are in the
  remaining Klenow fragment
• Polymerase active site is in the palm of the
  cupped right hand
• 3 to 5 exonuclease is about 25 Angstroms away
• Klenow fragment has two functional domains

12
3 functional domains in 1 polypeptide
13
Polymerase domain resembles a cupped right hand
14
Many DNA polymerases have a similar structure

• DNA polymerase from Thermus aquaticus
• Polymerase
• 3 to 5 exo domain is present but inactive
• 5 to 3 exo is also present
• Cupped right hand structure also seen in
• T7 RNA polymerase
• HIV reverse transcriptase (RNA dependent DNA
  polymerase
• Others
• DNA Pol I founding member of ONE class of
  polymerases

15
Null mutants at polA (encoding DNA Pol I) are
viable!
16
DNA polymerase III

• Enzyme used during replication
• Multisubunit protein
• High processivity

17
DNA polymerase III DNA Pol III

• Discovered in extracts of polA- cells, i.e.
  lacking DNA Pol I
• DNA Pol III is the replicative polymerase
• Loss-of-function mutations in the genes encoding
  its subunits block DNA replication (dna mutants)
• Highly processive
• Multiple subunits
• Also discovered DNA Pol II in polA- extracts
  (role in DNA repair)

18
DNA Pol III Low abundance but high processivity
Comparison Pol I Pol III core Pol III
holo molecules per cell 400 40 10 nts
polymerized min-1 (molecule enz)-1 600 9000 42,
000 processivity nts polymerized per
initiation 3-188 10 gt105 5' to 3'
polymerase 3' to 5' exo,
proofreading 5' to 3' exo - -
19
Processivity

• Amount of polymerization catalyzed by an enzyme
  each time it binds to a template.
• Measured in nucleotides polymerized per
  initiation
• High processivity of DNA Pol III results from
  activities of non-polymerase subunits

20
Subunits of DNA Pol III and functions
Functional Mass component Subunit
(kDa) Gene Activity Core polymerase a 129.9 polC
dnaE 5' to 3' polymerase e 27.5 dnaQmutD 3'-
5' exonuclease q 8.6 Stimulates e
exonuclease Linker protein t 71.1 dnaX Dimerize
s cores Clamp loader g 47.5 dnaX Binds ATP
(aka g complex) d 38.7 Binds to b
(ATPase) d' 36.9 Binds to g and
b c 16.6 Binds to SSB y 15.2
Binds to c and g Sliding
clamp b 40.6 dnaN Processivity factor
21
Synergism among subunits

• Activities of polymerase (a) and 3 to 5
  exonuclease (e) are higher in the core (aeq) than
  in individual subunits.
• The g complex has 6 subunits that work together
  to load and unload the clamp (b2) for processive
  synthesis

22
Subassemblies have distinct functions
e
e
23
Processivity factor beta2 Sliding clamp

• The b subunit forms a homodimer.
• The structure of this homodimer is a ring.
• The ring encloses DNA, thereby clamping the DNA
  Pol III holoenzyme to the template.
• An enzyme that is clamped on cannot come off
  easily, and thus will be highly processive.

24
Gamma complex Clamp loader/unloader

• The g complex (g2dd'cy) loads the b dimer clamp
  onto a primer-template.
• Bind the clamp (b dimer) onto the loader (g
  complex) need ATP
• Exchange the clamp from the loader to the core
  need ATP hydrolysis
• Unload the clamp when polymerase reaches a
  previously synthesized Okazaki fragment need ATP

• The ATP-bound form of the g complex can bind the
  clamp
• The ADP-bound form releases the clamp

25
Loading the beta2 clamp
26
Unloading the beta2 clamp
27
Model for gamma complex loading beta clamp
Jeruzalmi, ODonnell and Kuriyan (2001) Cell 106
429-441
28
Asymmetric dimer of DNA PolIII simultaneous
replication of both strands of DNA

• The 2 catalytic cores of DNA Pol III are joined
  by the tau subunits to make an asymmetric dimer.
• Model one holoenzyme synthesizes both strands at
  a replication fork.
• One core synthesizes the leading strand
• Other synthesizes the lagging strand.
• If the template for lagging strand synthesis is
  looped around the enzyme, then both strands are
  synthesized in the direction of fork movement.

29
One holoenzyme, 2 templates
30
Simultaneous replication of both strands of DNA
31
Eukaryotic replicative DNA polymerases

• Nuclear DNA replication
• a primase plus low processivity polymerase
• d both leading and lagging strand synthesis
• e may be used in lagging strand synthesis

32
Eukaryotic DNA polymerases in replication
33
PCNA is homologous to beta2 clamp
Mammalian PCNA is a trimer, each monomer of
which has two similar domains.
The beta subunit of E. coli DNA Pol III is a
dimer, each monomer of which has three similar
domains.
The domains in each are very similar, and the net
result is a ring of 6 domains. The two proteins
are structurally homologous and have similar
functions.
34
Similarities between bacterial and eukaryotic
replication machinery
Function E. coli Pol III Eukaryotic Leading and
lagging asymmetric polymerase d strand
synthesis dimer Sliding clamp b subunit
PCNA Clamp loader g-complex RFC Primase DnaG
polymerase a Single strand binding SSB RFA Sw
ivel Gyrase (Topo II) Topo I or II (Maintain
DNA topology)
35
Additional eukaryotic DNA polymerases

• Nuclear repair DNA polymerases b and e
• Mitochondrial DNA replication g
• Plus
• Reverse transcriptase
• Terminal deoxynucleotidyl transferase
• Telomerase

36
