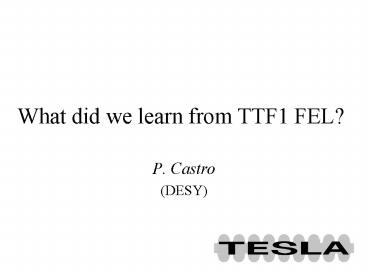

What did we learn from TTF1 FEL?

• P. Castro
• (DESY)

2
Just to mention...

• Coupler effect in beam dynamics
• Energy oscillations in detuned cavities
• Long bunch train operation
• Gun trips/operation (covered by K. Flöttmann)
• Golden orbits in undulator

3
Index

• 1) Bunch compression
• 2) Diagnostics
• 3) Stability
• 4) Reproducibility

4
1) Longitudinal bunch compression
magnetic bunch compression
5
Long. bunch profile measurements at TTF1
streak camera measurements of dipole radiation
with a bandpass filter 515 5 nm
coherent transition radiation interferometry
long. phase space tomography
all single meas.
average
3 mm 10 ps
6
(Simulation)
Compression at TTF1
momentum
7
(Simulation)
Compression at TTF1
momentum
8
(Simulation)
Compression at TTF1
momentum
9
Coherent Synchrotron Radiation (CSR)
coherent radiation for l gt sz
coherent power
R
e
N ? 6?109
Power
incoherent power
sz
effect
Wavelength
bend-plane emittance growth
vacuum chamber cutoff
DE/E 0
10
CSR effects in TTF1
screen
11
CSR effects in TTF1
screen
12
CSR effects in TTF1
screen
T. Limberg, P. Piot, et al.
TraFiC4 simulation
energy
13
Ability to tune the length of radiation pulse
demonstrated at TTF1
long. modes M ? 2 - 3
compressor settings 1 short bunches
tlen 50 fs
compressor settings 2 long bunches
long. modes M ? 6 - 10
tlen 100 fs
sz between 30 and 100 fs
10 and 30 µm
14
Bunch compression (summary)

• long. profile well understood very short peak
  observed in agreement with photon beam
  measurements
• strong CSR effect on beam energy observed
• photon pulse length tuned between 30 and 100 fs
  (using two bunch compressors)

15
2) Beam diagnostics

• long. profile monitors at resolution limit
• new techniques needed EOS, deflecting cavity,
• emittance meas. (quad. scan, wirescanner)
  initially failed
• BPMs in undulator and/or just upstream useful for
  reproducibility of SASE
• photon diagnostics were essential

16
Photon diagnostics
First spectrum of SASE at TTF1
17
Photon intensity monitor

• large range
• non-destructive
• position sensitive
• absolute calib. 50
• signal decay in bunch train

mostly used for SASE optimization
18
saturation at 98 nm (10 Sept. 2001)
19
saturation at 98 nm (10 Sept. 2001)
fluctuations at 9 m
20
saturation at 98 nm (10 Sept. 2001)
fluctuations at 14 m
fluctuations at 9 m
21
saturation at 98 nm (10 Sept. 2001)
fluctuations at 14 m
fluctuations at 9 m
22
Essential photon beam diagnostics

• single bunch spectrum measurement wavelength and
  intensity
• intensity meas. (non-destructive preferred)
• position monitor photon beam not always on axis

integrated into control system for optimization
and for correlation studies!
23
3) SASE stability at TTF1
Long term stability
Stability in bunch train
E ?J
? ?s
SASE gain 106 (a factor 10 below saturation)
4 hours SASE operation
24
SASE stability at TTF1
Long term stability
Stability in bunch train
E ?J
? ?s
SASE gain 106 (a factor 10 below saturation)
4 hours SASE operation
25
Time jitter of the electron beam
Measured with streak camera by Ch.Gerth et al.
(Proc. FEL Conf. 2002)
26
Beam stability (summary)

• good stability for SASE in TTF1
• timing jitter measured 0.6 ps RMS
• requirements for TTF2

minutes of timing meeting 30.4.03
1 0.6 mm 2 ps
27
4) Reproducibility of SASE

• once SASE found/seen SASE found again
  after other experiments, shutdowns, etc.
• high sensitivity to magnet settings/cycling
• change to new energy/wavelength was a challenge

all parameters have to be correct
low energy / oversized magnets
compression and optics changes
28
Wavelength tunability
detuning cavities
1st lasing
changing klystron 2 settings (modules ACC1 and
ACC2)
29
first lasing
later lasing was found with bunches of about 3 nC
saturation was achieved with bunches of about 3 nC
