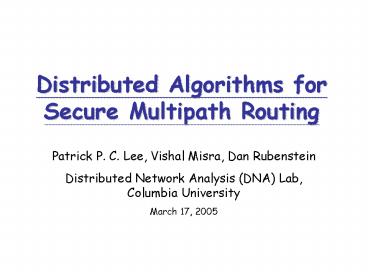

Distributed Algorithms for Secure Multipath Routing

1
Distributed Algorithms for Secure Multipath
Routing
Patrick P. C. Lee, Vishal Misra, Dan
Rubenstein Distributed Network Analysis (DNA)
Lab,Columbia University March 17, 2005
2
Outline

• Motivation
• Why do we use multipath routing to achieve
  security?
• Security objectives
• Distributed algorithms
• Bound-Control algorithm
• Lex-Control algorithm
• Simulation results

3
Motivation

• Problem of single-path routing

source
sink

• An attack/failure shuts down the entire session.

4
Motivation

• Protection with multipath routing

source
sink

• An attack/failure causes less damage.

5
Goals

• Determine the multipath routes that achieve the
  best security
• Minimize the worst-case data loss with/without
  bandwidth constraints
• Minimize severe data loss with/without
  bandwidth constraints based on lexicographic
  optimization
• Implement a distributed solution
• No need to know the global network topology
• Allow nodes to locally decide link costs
• Suitable for independently administered networks
  (e.g., RON)

6
Previous Work

• Lexicographic optimization Minimize a
  non-increasing link-cost sequence a (a1, a2, ,
  an)
• Find a, where a (a1, a2, , an) a
  (a1, a2, , an) for every link-cost sequence a
• Georgiadis et al.s solution ToN 02
• Recursively solve minimax problems on subgraphs
• Limitations
• Centralized solution
• Does not consider varied bandwidth constraints

7
Our Work

• Develop two distributed algorithms Bound-Control
  and Lex-Control
• Support fixed-rate model and maximal-rate model
• Fixed rate a data session sends data at a fixed
  rate
• Maximal rate a data session sends data at the
  maximal rate across all network links (i.e.,
  equiv. to min-cut)
• Suitable for overlay networks and ad hoc networks
• Prove their optimality in response to single-link
  attacks.
• Evaluate the algorithms via simulations in
  response to single-link and multi-link attacks.

8
Model Assumptions

• Static network topology
• Single source-sink pair
• Easily generalized to networks with multiple
  customers/providers
• Infrequent link attacks/failures
• Optimize solutions for single-link attacks
• Evaluate performance for both single-link and
  multi-link attacks

9
How to Quantify the Cost of a Single-link Attack?

• Attack cost of link l al xl cl
• xl proportion of session data allocated to link
  l
• cl - security constant
• Measure the vulnerability of link l to an attack
• Possible physical interpretations
• Attack success probability
• Proportion of xl lost during an attack
• In practice, security constants can be obtained
  from security monitoring systems or statistical
  measurements

10
Example of Setting Security Constants
More vulnerable to attacks (e.g., cl 0.9)
Wireless link
sink
source
Wired link
Less vulnerable to attacks (e.g., cl 0.1)

• In subsequent discussion of objectives, assume
  cl 1 for all links, i.e., attack cost data
  loss.

11
Objective 1
One possible data allocation.
5
5
Fixed data rate 10Mb/s
5
source
sink
5
5
5

• Minimize the worst-case data loss under the
  single-link attack

12
Objective 1
Another possible data allocation.
5
Fixed data rate 10Mb/s
5
5
5
source
sink
5
5
13
Objective 1
Another possible data allocation.
5
5
Fixed data rate 10Mb/s
5
5
source
sink
5
5

• Worst-case data loss cannot be less than 50

14
Objective 2
6
6
Fixed data rate 10Mb/s
6
source
sink
4
4
4

• Minimize the worst-case data loss subject to
  bandwidth constraints

15
Objective 3
Fixed data rate 10Mb/s

• Minimize the ith worst-case data loss subject to
  bandwidth constraints, given already minimized
  attack costs for the worst-case, 2nd
  worst-case,, (i-1)th worst-case.

16
Solving Objective 1 Preflow-Push

• Map minimax problem to max-flow problem
• Preflow-push algorithm Goldberg Tarjan, 89
• Nodes find the maximum flow from source to sink
  in a distributed fashion.
• Basic idea of solving Objective 1 Ahuja, 86
• Each node sets capacity constraints of its
  outgoing links cap(l) 1/cl.
• Nodes solve max-flow problem under capacity
  constraints in a distributed fashion.
• Each node allocates data for its outgoing
  links(link flow) / (max flow).

17
Solving Objective 2 Bound-Control

• Bandwidth constraint fraction bound bl
• bl (bandwidth of link l) / (session data rate)
• Capacity constraint cap(l) min(1/cl, blf)
• f flow reaching the sink
• Upper bound in max-flow problem
• Basic idea of solving Objective 2
• Repeat
• Distributed execution of Preflow-Push
• Each node adjusts capacity constraints for its
  outgoing links
• Until capacity constraints satisfied

18
Solving Objective 3 Lex-Control

• Basic idea solve lexicographic optimization
• Repeat
• Distributed execution of Bound-Control
• Each node identifies critical linksamong its
  outgoing links
• Until all critical links spotted
• Critical Links
• Links whose data allocation has to be fixed to
  preserve the optimal attack cost
• In practice, Lex-Control provides the necessary
  resilience in 3 or 4 lexicographic iterations.

19
Recap of Algorithms
Lex-Control algorithm
Bound-Control algorithm
Preflow-Push algorithm
Hierarchical solution to the three security
objectives
20
Experimental Setup

• Consider three random networks generated by
  BRITE
• 200 nodes, 600 links
• 200 nodes, 800 links
• 200 nodes, 1000 links
• Randomly assign security constants (0 to 1) and
  bandwidths (1 to 5 Mb/s) for all links
• Metrics
• Attack cost
• Number of executions of Preflow-push
• Routing overhead

21
Experiment 1 Bound-Control

• Minimized worst-case attack cost vs. different
  session throughputs

22
Experiment 1 Bound-Control
Network setting Attack cost
200 nodes, 600 links 0.73
200 nodes, 800 links 0.72
200 nodes, 1000 links 0.78

• Single shortest path approach

Network setting Attack cost
200 nodes, 600 links 0.34
200 nodes, 800 links 0.19
200 nodes, 1000 links 0.16

• Bound-Control (for maximal-rate model)

• Bound-Control reduces the worst-case attack cost
  by 50-70.

23
Experiment 2 Lex-Control

• Number of links with severe attack cost vs.
  number of lexicographic iterations.
• Attack cost is severe if its at least 25 of the
  worst-case attack cost.
• E.g., for the attack-cost sequence (1, 0.5, 0.25,
  0.1, 0.1), number of links with severe attack
  cost is 3.

24
Summary of Experiments

• Bound-Control vs. Single-Path Routing
• Reduce the worst-case attack cost by 50-70
• Lex-Control vs. Bound-Control
• Reduce of links with severe attack costs by
  50
• Reduce aggregate attack cost in multi-link
  attacks
• by 40 in the uniform 50-link attack
• by 23 in the proportional 5-link attack
• by 12 in the worst-case 5-link attack
• 3 or 4 lexicographic iterations are enough

25
Conclusions

• In this talk
• Proposed two distributed algorithms Bound-Control
  and Lex-Control that optimize respective security
  objectives.
• Illustrated performance of Bound-Control and
  Lex-Control via simulation analysis.
• More details in the paper
• Optimality proof
• Simulation results for multi-link attacks
