Title: Sulfur's Effect on Cu111 Surface Morphology


1

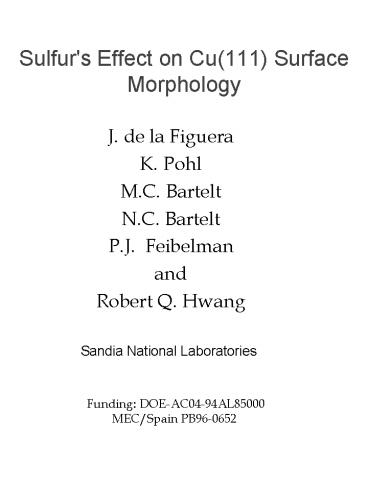

Sulfur's Effect on Cu(111) Surface Morphology
J. de la Figuera K. Pohl M.C. Bartelt N.C.
Bartelt P.J. Feibelman and Robert Q. Hwang
Sandia National Laboratories
Funding DOE-AC04-94AL85000 MEC/Spain PB96-0652
2
Sulfur on Cu(111)
  • Learn about the evolution of nanoscale morphology
    of surfaces under gas exposure
  • Cu(111)
  • benchmark system for morphology evolution. Well
    studied in the clean case.
  • Interest in smaller and smaller features for the
    Cu-interconnect technologies
  • Sulfur is a common contaminant!

3
Cu/Ru(0001) Cu(111) Mesas
2 mm
500nm
  • Up to 100ML of Cu on Ru(0001)
  • Annealed to 650 C
  • Cu/Ru(0001) grows layer-by-layer only for lt3ML
  • Add additional 1-5ML to form mounds

4
Morphology changes rapidly on Cu mesas upon S
exposure
20ML
1 mm x 1 mm
19min
  • Islands adopt a triangular shape
  • Mounds flatten FAST!
  • Coarsening between same level terraces!

43min
Critical S exposure 0.1L, rate 10-10 torr
5
Hexagonal to Triangular Shape Change
Compact steps in fcc(111) surfaces Step type A
(100) microfacets Step type B
(111) microfacets
6
A
A
B
B
A-steps recede faster upon S exposure
7
Which side disappears faster?
We need to find the orientation of the Cu(111)
mesa
The hcp substrate prevents determination of the
orientation by any means other than a local probe
like STM...
Upper Cu(111) terrace
B step
Lower Cu terrace
8
Aspect ratio for clean Cu(111)
The observed ratio between both types of steps in
clean Cu(111) islands is close to 1
  • Ab-initio GGA calculations give
  • EA 0.27eV/atom
  • EB 0.28eV/atom
  • From that ratio, the equilibrium shape (following
    Wulff construction) is
  • LB/LA1.14

9
Sulfur on Cu(111) steps
  • From ab-initio calculations
  • S prefers to bind to A-type steps

Same S-Cu tetramer unit found on
and Cu(111)
On Cu(100)
1st layer S
2nd layer S
Cu
M. Foss et al, Surf. Sci. 388,5 (1997)
M.L. Colaianni et al, PRB 50,8798 (1994)
10
Sulfur atoms appear in (2x1) geometry at steps
  • GGA calculations using the (2x1) S position at
    steps,
  • EA 0.11eV/atom (preferred, fourfold hollow-like
    sites)
  • EB 0.15eV/atom
  • From that ratio, the equilibrium shape is
  • LA/LB2.4

B
A
11
Analysis of STM image sequences showing island
decay
  • Decay rate 103 atoms/sec
  • Area decays linearly
  • Attachment-detachment limited?
  • The sulfur effects begin upon exposures of 0.1L

12
A decrease in the Schwoebel barrier?
On clean Cu(111), EES.22eV (M. Giesen and H.
Ibach, Surf. Sci. 431 (1999) 109)
  • Although the Schwoebel barrier may be modified,
    it does not explain the fast coarsening on the
    same terrace
  • In experiments where the Schwoebel barrier is
    assumed to disappear, the island decay is still
    gt102 slower than with S

Decrease in the Schwoebel barrier is NOT enough!
M. Giesen et al., Phys. Rev. Lett. 80 (1998) 552.
13
Is Cu atom detachment from islands irreversible?
t15min
06_25_99/m110
06_25_99/m124
t21min
t19min
06_25_99/m127
06_25_99/m129
  • On the same level, some islands ripen
  • The detachment is NOT irreversible
  • But it may be modified by the presence of sulfur
    at the island steps and in the adatom sea

14
Modified reattachment to step edges?
  • S may inhibit reattachment

A
B
15
Problems in Cu/Ru(0001) vs Cu(111)
  • Higher density of dislocations than in bulk Cu
    crystals due to the network of misfit
    dislocations at the Cu-Ru interface

Dissociated edge threading dislocation emerging
at the mesa surface
  • The reactivity towards sulfur of the areas
    between mesas (mainly 2ML Cu) is different than
    Cu(111)

Decay behavior of mesas depends on a large
neighbor-hood
10ML
t135min
750nm
16
Summary
  • We have observed the evolution of Cu(111)
    structures grown on Ru(0001)
  • Sulfur induces
  • Fast decay of mounds!
  • Fast ripening!
  • Our observations of coarsening on the same
    terrace ruled out that the observations could be
    explained
  • By a lowering of the Schwoebel barrier
  • By irreversible detachment of Cu from islands
  • We expect these features to reflect the
    modification of the reattachment at island step
    edges
