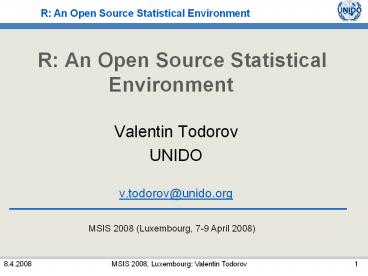

R An Open Source Statistical Environment

• Valentin Todorov
• UNIDO
• v.todorov_at_unido.org

MSIS 2008 (Luxembourg, 7-9 April 2008)
2
Outline

• Introduction the R Platform and Availability
• R Learning Curve (is R hard to learn)
• R Extensibility (R Packages)
• R and the others (Interfaces)
• R Graphics
• R for Time series
• R for Survey Analysis
• R and the Outliers (Robust Statistics in R)
• More R features (WEB, Missing data, OOP, GUI)
• Summary and Conclusions

3
What is R

• R is a system for statistical computation and
  graphics. It provides, among other things, a
  programming language, high-level graphics,
  interfaces to other languages and debugging
  facilities
• Developed after the S language and environment
• S was developed at Bell Labs (John Chambers et
  al.)
• S-Plus a value added implementation of the S
  language- Insightful Corporation
• much code written for S runs unaltered under R
• Significantly influenced by Scheme, a Lisp
  dialect

4
What is R

• Ihaka and Gentleman, University of Auckland (New
  Zealand)
• 1993 a preliminary version of R
• 1995 released under the GNU Public License
• Now R-core team consisting of 17 members
  including John Chambers
• R provides a wide variety of statistical (linear
  and non-linear modelling, classical statistical
  tests, time-series analysis, classification,
  clustering, robust methods and many more) and
  graphical techniques
• R is available as Free Software under the terms
  of the GNU General Public License (GPL).

5
R Extensibility (R Packages)

• One of the most important features of R is its
  extensibility by creating packages of functions
  and data.
• The R package system provides a framework for
  developing, documenting, and testing extension
  code.
• Packages can include R code, documentation, data
  and foreign code written in C or Fortran.
• Packages are distributed through the CRAN
  repository http//cran.r-project.org -
  currently more than 1300 packages covering a wide
  variety of statistical methods and algorithms.
  base and recommended packages are included in
  all binary distributions.

6
R and the Others (R Interfaces)

• Reading and writing data (text files, XML,
  spreadsheet like data, e.g. Excel
• Read and write data formats of SAS, S-Plus, SPSS,
  STATA, Systat, Octave package foreign.
• Emulation of Matlab package matlab.
• Communication with RDBMS ROracle, RMySql,
  RSQLite, RmSQL, RPgSQL, RODBC large data sets,
  concurrency
• Package filehash a simple key-value style
  database, the data are stored on disk but are
  handled like data sets
• Can use compiled native code in C, C, Fortran,
  Java

7
R Graphics

• One of the most important strengths of R simple
  exploratory graphics as well as well-designed
  publication quality plots.
• The graphics can include mathematical symbols and
  formulae where needed.
• Can produce graphics in many formats
• On screen
• PS and PDF for including in LaTex and pdfLaTeX or
  for distribution
• PNG or JPEG for the Web
• On Windows, metafiles for Word, PowerPoint, etc.

8
R Graphics basic and multipanel plots (trellis)
9
R Graphics parallel plot and coplot
10
R for Time Series

• Package stats
• classical time series modeling tools arima()
  for Box-Jenkins type analysis
• structural time series StructTS()
• filtering and decomposition decompose() and
  HoltWinters()
• Package forecast additional forecast methods
  and graphical tools
• Analyzing monthly or lower frequency time series
• TRAMO/SEATS
• X-12-ARIMA
• accessible through the Gretl library
• Task View Econometrics http//cran.r-project.org/
  web/views/Econometrics.html

11
R for Time Series Example

• Fitting an ARIMA model to a univariate time
  series with arima() and using tsdiag() for
  plotting time series analysis diagnostic

12
R for Survey Analysis

• Complex survey samples are usually analysed by
  specialized software packages SUDAAN, Bascula 4
  (Statistics Netherlands), etc.
• STATA provides much more comprehensive support
  for analysing survey data than SAS and SPSS and
  could successfully compete with the specialized
  packages

13
R for Survey Analysis

• R package survey - http//faculty.washington.edu
  /tlumley/survey/
• stratification, clustering, possibly multistage
  sampling, unequal sampling probabilities or
  weights multistage stratified random sampling
  with or without replacements
• Summary statistics means, totals, ratios,
  quantiles, contingency tables, regression models,
  for the whole sample and for domains
• Variances by Taylor linearization or by replicate
  weights (BRR, jack-knife, bootstrap, or
  user-supplied)
• Graphics histograms, hexbin scatterplots,
  smoothers
• Other packages pps, sampling, sampfling

14
R and the Outliers (Robust Statistics in R)

• What are Outliers
• atypical observations which are inconsistent with
  the rest of the data or deviate from the
  postulated model
• may arise through contamination, errors in data
  gathering, or misspecification of the model.
• classical statistical methods are very sensitive
  to such data
• What are Robust methods
• Produce reasonable results even when one or more
  outliers may appear in the data
• Robust regression - robustbase
• Robust multivariate methods rrcov, robustbase
• Robust time series analysis - robust-ts

15
R and the Outliers Example

• Example Wages and Hours - http//lib.stat.cmu.edu
  /DASL/
• a national sample of 6000 households with a male
  head earning less than 15,000 annually in 1966 -
  9 independent variables classified into 39
  demographic groups
• estimate y the labour supply (average hours)
  from the available data (for the example we will
  consider only one variable x average age of
  the respondents
• We will fit an Ordinary Least Squares (OLS) and a
  robust Least Trimmed Squares model

16
R and the Outliers Example OLS
17
R and the Outliers Example LTS
18
R and the Outliers Example Covariance

• Marona Yohai (1998)
• rrcov data set maryo
• A bivariate data set with
• sample correlation 0.81
• interchange the largest and smallest value in the
  first coordinate
• the sample correlation becomes 0.05

19
More R

• R and the WEB - several projects that provide
  possibilities to use R over the WEB
• R and the Missing advanced missing value
  handling
• mvnmle ML estimation for multivariate data with
  missing values
• mitools Tools for multiple imputation of missing
  data
• mice - Multivariate Imputation by Chained
  Equations
• EMV Estimation of Missing Values for a Data
  Matrix
• VIM provides methods for the visualisation as
  well as imputation of missing data
• R Objects R is an Object Oriented language
  (however in a quite different sense from C,
  Java, C)

20
More R

• R GUI
• R Commander a basic statistics GUI, consisting
  of a window containing several menus, buttons,
  and information fields
• Sciviews a suite of companion applications for
  Windows
• R and SDMX
• R Reports
• package xtable coerce data to LaTeX and HTML
  tables
• package Sweave a framework for mixing text and R
  code for automatic report gene

21
Summary

• Output Management System
• SAS/SPSS it is rarely used for routine work
• R output is easily passed from one function to
  another to do further processing and to obtain
  more results
• Macro Language
• SAS/SPSS a special language with own syntax. The
  new functions are not run in the same way as the
  built-in procedures
• R itself is a programming language
• Matrix Language
• SAS/SPSS A special language with own syntax
• R is a vector and matrix based language
  complemented by additional packages Matitrx,
  SparseM

22
Summary (cont.)

• Publishing results
• SAS/SPSS Cut and paste to a Word processor or
  exporting to a file
• R produce LaTex output (including graphics)
  using for example the Sweave package
• Data size
• SAS/SPSS Limited by the size of the disk
• R Limited by the size of the RAM, (not trivial)
  usage of databases for large data sets is
  possible
• Data structure
• SAS/SPSS Rectangular data set
• R Rectangular data frame, vector, list

23
Summary (cont.)

• Interface to other programming languages
• SAS/SPSS Not available
• R R can be easily mixed with Fortran, C, C and
  Java
• Source code
• SAS/SPSS Not available
• R the source code of R itself as well as of its
  packages is a part of the distribution

24
References

• Hornik, K and Leisch, F, (2005) R Version 2.1.0,
  Computational Statistics, 20 2 pp 197-202
• Kabacoff, R. (2008) Quick-R for SAS and SPSS
  users, available from http//www.statmethods.net/i
  ndex.html
• López-de-Lacalle, J, (2006) The R-computing
  language Potential for Asian economists, Journal
  of Asian Economics, 17 6, pp 1066-1081
• Muenchen, R. (2007), R for SAS and SPSS users,
  URL http//oit.utk.edu/scc/RforSASSPSSusers.pdf
• Murrel, P. (2005) R Graphics, Chapman Hall
• R Development Core Team (2007) R A Language and
  Environment for Statistical Computing, R
  Foundation for Statistical Computing, Vienna,
  Austria, ISBN 3-900051-07-0. URL
  http//www.r-project.org/
• Templ, M and Filzmoser, F (2008), Visualisation
  of Missing Values and Robust Imputation in
  Environmental Surveys, submitted for publication
• Wheeler, D.A., (2007) Why Open Source Software /
  Free Software (OSS/FS, FLOSS, or FOSS)? Look at
  the Numbers!
