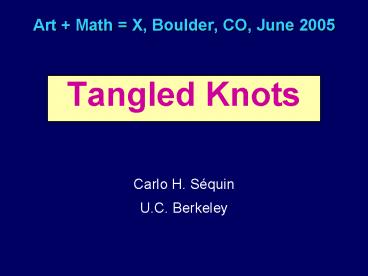

• Tangled Knots

Carlo H. Séquin U.C. Berkeley
2
The idea for this paper ...

• Breckenridge, CO, January 2005,
• International Snowsculpting Championships
• Team Minnesota constructs Knot Divided.
• (S. Wagon, D. Schwalbe, R. Seeley, C. Séquin, J.
  Sullivan)

3
Formal Submission, July 2004

• KNOT DIVIDED

4
KNOT DIVIDED

• Can a  DIVIDED KNOT  be  NOT DIVIDED ?We start
  with the simplest knot the overhand knot, also
  known as the trefoil or pretzel knot,  -- which
  we then split lengthwise along the whole strand
  that forms the three loops. But there is a
  twist that may lead to surprises the knotted
  strand is a triply twisted Moebius band!Thus
  the question Does our cut separate the
  structure into two pieces, or does it form a
  single, highly knotted strand?

5
Final Model

• Thicker beams
• Wider gaps
• Less slope

6
Intermediate Construction Model

• The first milestone a Moebius band with 3/2
  flips

7
TUESDAY, Jan. 25, 2005
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
WEDNESDAY, Jan. 26, 2005
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
THURSDAY, Jan. 27, 2005
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
FRIDAY, Jan. 28, 2005
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
SATURDAY, Jan. 29, 2005
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
Knot Divided by Team Minnesota
38
What Is It Mathematically ?

• A split, triply-twisted Moebius band
• in the form of a trefoil knot.

39
Splitting Moebius Bands

• Litho by FDM-model
  FDM-modelM.C.Escher thin,
  colored thick

40
Split Moebius Trefoil (Séquin, 2003)
41
What would happen if the original band were
double-sided?

• gt True split into two knots !
• Probably tangled result
• How tangled is it ?
• How much can the 2 parts move ?
• Explore these issues, and others ...

42
How to Use Knots in Constructive Ways

• as building blocks ...
• for symmetrical assemblies.
• Explore artistic possibilities !

43
Outline of Presentation

• Splitting Orientable Knotted Bands
• Symmetrical Assemblies of Knots
• Infinite Knot Lattices
• Recursive Knots
• Space-Filling Knots

44
Is It Math ?Is It Art ?

• it isKNOT-ART

45
PART I Splitting Trefoils

• Take a simple trefoil knot
• Split it lengthwise
• See what happens ...

How much wiggle room ?
46
Trefoil Stack
47
An Iterated Trefoil-Path of Trefoils
48
Splitting the Knot into 3 Strands

• 3-deep stack

49
Another 3-Way Split

• Parts are different, but maintain 3-fold symmetry

50
Split into 3 Congruent Parts

• Change the twist of the configuration!
• Parts no longer have C3 symmetry

51
PART II Linking Knots

• Use knots as constructive building blocks

52
Tetrahedral Trefoil Tangle (FDM)
53
Tetra Trefoil Tangles

• Simple linking (1) -- Complex linking
  (2)

54
Tetra Trefoil Tangle (2)

• Complex linking -- two different views

55
Tetra Trefoil Tangle

• Complex linking (two views)

56
Octahedral Trefoil Tangle
57
Octahedral Trefoil Tangle (1)

• Simplest linking

58
Platonic Trefoil Tangles

• Take a Platonic polyhedron made from triangles,
• Add a trefoil knot on every face,
• Link with neighboring knots across shared edges.
• Tetrahedron, Octahedron, ... done !

59
Arabic Icosahedron
60
Icosahedral Trefoil Tangle

• Simplest linking (type 1)

61
Icosahedral Trefoil Tangle(Type 3)

• Doubly linked with each neighbor

62
Arabic Icosahedron, UniGrafix, 1983
63
Arabic Icosahedron
64
Dodecahedral Pentafoil Cluster
65
Realization Extrude Hone - ProMetal

• Metal sintering and infiltration process

66
(No Transcript)
67
PART III Knot Lattices

• Can we build knot latticesthat are infinitely
  extensible in 3D ?
• This is what got me into 3D Graphics !A talk by
  Sculptor Frank Smullin ...

68
Frank Smullin (1943 1983)

• Tubular sculptures
• Apple II program for
• calculating intersections.

69
Frank Smullin

• The Granny knot has more artistic merits than
  the square knot because it is more 3Dits ends
  stick out in tetrahedral fashion...

Square Knot
Granny Knot
70
Granny Knot as a Building Block

• 4 tetrahedral links ...
• like a carbon atom ...
• can be assembled intoa diamond-lattice ...

... leads to the Granny-Knot-Lattice ?
71
Granny Knot Lattice (1981)
72
The Strands in the G.K.L.
73
The Use of Figure-8 Knots

• Figure-8 knot can also have 4 lobes
• sticking out in tetrahedral directions.

74
Figure-8 Knots in Diamond Lattice Cell
75
A Denser Lattice of Figure-8 Knots
76
Dense Figure-8 Knot Lattice

• Model made with selective laser sintering.

77
My Conceptual 3D-CAD Tools
78
PART IV Recursive Knots

• Another way of generating aesthetic complexity

79
2.5D Celtic Knots Basic Step
80
Celtic Knot Denser Configuration
81
Celtic Knot Second Iteration
82
True 3D Knot Configuration

• Start from cubist trefoil knot . . .

83
Recursion Step

• Replace every 90 turn with a knotted elbow.

84
Recursive Cubist Trefoil Knot
85
PART V Space-filling Knots

• Can we pack knots so tightly
• that they fill all of 3D space ?
• Ian Stewart, Mathematical Recreations,
• Scientific American, Nov. 1995

86
4 (convoluted) Trefoils Make a Cube

• Cubes stack up to fill space

87
A Simpler, More Elegant Solution

• Three congruent
• interlocking trefoils
• make a hexagonal
• prismatic block.

88
A Simpler, More Elegant Solution

• Outer and middle floor plans ?

89
Planning the Space Partition of the Tiling
90
A Simpler, More Elegant Solution

• Three congruent
• interlocking trefoils
• make a hexagonal
• prismatic block.
• Styrofoam model.

91
Minimal Solution

• Squash a trefoil into a 3-sided prism
• or make cuts in a foam-rubber block.

92
Minimal Solution

• Make cuts in a foam-rubber block.
• NOT what we think of when we want to fill space
  with knots!
• ? They all should mutually link.

93
What We Would Really Like ...

• Stacking cubes or prisms to fill space is a
  cheap way to fill space with knots!
• Neighboring knots should mutually link,so that
  the fabric of space holds together.

94
Toroidal Tile (Linking Unknots)

• The Basic Tile

Assembly of 5 Tiles
95
Extensible Linkage of Toroidal Tiles
96
Conclusions

• Knots are interesting artistic elements in
  themselves.
• They can be split lengthwise to make intriguing
  configurations.
• They can be used as building blocks for
  sophisticated constellations.

Art Math Knot-Art
