EdgeMate

1
EdgeMate

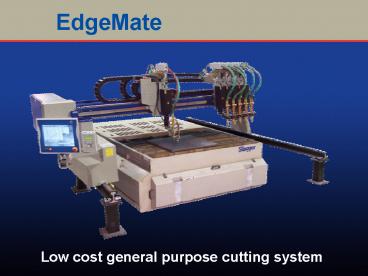

Low cost general purpose cutting system
2
EdgeMate

• Durable, efficient cutting in 8 and 10 widths
  and lengths to 59.5
• Utilizes up to 1 plasma, 6 oxyfuel torches (for
  up to 12 mild steel), and 1 marker
• Burny 1400 or Burny Phantom CNC control
• Double truss design for exceptional stiffness and
  accurate cut parts
• Rides on 90 lb. crane rail for stability and long
  life

3
EdgeMate
EdgeMate with Slagger table and 6 TurboFlame
Oxyfuel torches
4
The EdgeMaster
5
EdgeMaster

• Unique truss frame heaviest in the industry
  provides smooth motion so parts are accurately
  cut
• 250 watt motor package drives through 1 square
  rack for accurate torch positioning for square
  part edges
• Maximum jog speed of 1000 ipm positions machine
  on table quickly to reduce cycle time
• Track is 90 crane rail, the heaviest in the
  industry, to improve cutting performance
• Cutting widths from 6 to 14 and lengths to 80
• Up to 2 plasma torches, 6 oxyfuel torches, and 1
  marker (6 model utilizes maximum of 1 plasma, 4
  oxyfuel, and 1 marker)

6
EdgeMate EdgeMaster Control

• Global Control S
• Familiar screen layout allows user to operate
  control with minimum instruction
• Embedded process database makes every operator
  an expert
• Modern operating interface based on
• Fully Network and Internet compatible makes
  remote diagnosis possible
• Standard shapes and nesting included
• Compact design for applications on small
  machines
• Developed from the proven technology of the
  Global Control Plus

7
Cutting Tables

• Slagger and SlaggerPLUS
• Self Cleaning Cutting Tables

8
Cutting Tables

• Slagger cutting table for up to 4 thick material
  standard, capacity for thicker material is
  available, and is available in any size
• SlaggerONE for material up to 1 thick and 200
  amps or less, in sizes 6.75 and 8.9 wide by
  5.35 to 42.65 long
• Patented pusher type blade cleans slag and small
  parts from under the table in under 5 minutes
• Zoned and ducted smoke removal with automatic
  on/off in each section
• Design packages are available with necessary
  components for a higher level of affordability

9
Zephyr Table Plans

• Zephyr downdraft table design package for the
  highest level of affordability
• Any size needed is available
• No materials are included
• Zoned table for more efficient smoke removal
• Dust collector is also available

10
Slagger and SlaggerPLUS
Pusher type blade for effective slag and small
part removal
11
Slagger and SlaggerPLUS
Slag and small parts are easily removed with the
pusher blade into a slag pit or slag pan
12
SLAGGER Support Tables

• Powered cleaning clean table in 5 minutes per
  day
• Provides east small part retrieval
• Downdraft smoke extraction
• Standard widths to 22 feet with 4 inch capacity
  and lengths to 150 ft. or more
• Custom widths, lengths and thickness capacities
  available

Pusher Blade (in park position with cover removed)
13
Material Handling Shuttle Tables
14
Material Handling - Pass Through
15
Manual Plasma Bevel
16
Manual Plasma Bevel

• Can be manually set to angles up to 45
• For straight line longitudinal bevel cuts only
• The torch must be manually positioned with auto
  height sensing off to achieve proper pierce
  height, but it can be used during cutting
• Manual Plasma Bevel can be used on all machine
  models
