Title: CS502 Operating Systems Fall 2006

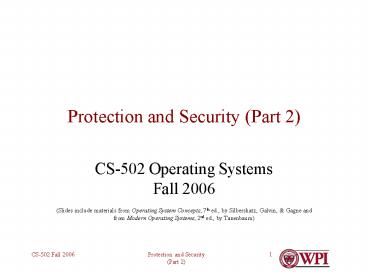

1
Protection and Security (Part 2)
  • CS-502 Operating SystemsFall 2006
  • (Slides include materials from Operating System
    Concepts, 7th ed., by Silbershatz, Galvin,
    Gagne and from Modern Operating Systems, 2nd ed.,
    by Tanenbaum)

2
Puzzle
  • Alice wishes to send secret message to Bob
  • She places message in impenetrable box
  • Locks the box with unbreakable padlock
  • Sends locked box to Bob
  • Problem Bob has no key to unlock box
  • No feasible way to securely send key to Bob
  • How does Bob retrieve message?

3
Answer
  • Bob adds 2nd unbreakable padlock to box
  • Locks with own key
  • Sends box back to Alice (with two padlocks!)
  • Alice unlocks and removes her lock
  • Sends box back to Bob
  • Bob unlocks his lock
  • Opens box and reads message
  • What could go wrong?

4
Authentication
  • How does the machine know who it is talking to?
  • Who do I say that I am?
  • How can I verify that?
  • Something I know (that nobody else should know)
  • Something I have (that nobody else should have)
  • Something I am (that nobody else should be)

5
Threats against authentication
  • I want to pretend to be you
  • I can steal your password
  • the sticky note on your monitor or the list in
    your desk drawer
  • by monitoring your communications or looking over
    your shoulder
  • I can guess your password
  • particularly useful if I can also guess your user
    name
  • I can get between you and the system you are
    talking to

6
Getting between you and system you are talking to
7
Login Spoof
  • I create a login screen in my process
  • On a public machine
  • Looks exactly like real one
  • You log into system
  • My login process records your user ID and
    password
  • Logs you in normally
  • Result I have gotten between you and system
    without your knowledge
  • Also, I have stolen your user ID and password

8
The Trouble with Passwords
  • They are given away
  • They are too easy to guess
  • They are used too often
  • There are too many of them
  • They are used in too many places

9
Some ways around the problem
  • Better passwords
  • longer
  • larger character set
  • more random in nature/encrypted
  • Used less often
  • changed frequently, one system per password
  • challenge/response use only once

10
The Challenge/Response Protocol
Mary
Art
Hello, Im Art
Decrypt This RP
R
Hello Art! How can I help you?
11
Threat Steal passwords from the system
  • Dont keep them in an obvious place
  • Encrypt them so that version system sees is not
    same as what user enters
  • or version on the wire

12
Too many passwords to remember?
  • Third-party authentication
  • Get someone to vouch for you
  • The basics This guy says you know him.. Yes,
    I trust him, so you should too..
  • Kerberos Certificate-based authentication
    within a trust community

13
What is in a certificate?
  • Who issued it
  • When was it issued
  • For what purpose was it issued
  • For what time frame is it valid
  • (possibly other application-specific data)
  • A signature that proves it has not been forged

14
Systems and Networks Are Not Different
  • Same basic rules about code behavior apply
  • Same authentication rules apply
  • The same security principles apply
  • Same Coding Rules Apply To
  • An application
  • Code which manages incoming messages
  • Code which imposes access controls on a network
  • ...

15
The Principles
  • Understand what you are trying to protect
  • Understand the threat(s) you are trying to
    protect against
  • Also, costs and risks
  • Be prepared to establish trust by telling people
    how you do it
  • Assume that the bad guys are at least as clever
    as you are!

16
Security must occur at four levels to be effective
  • Physical
  • The best security system is no better than the
    lock on your front door (or desk, or file
    cabinet, etc.)!
  • Human
  • Phishing, dumpster diving, social engineering
  • Operating System
  • Protection and authentication subsystems
  • Network
  • Similar to OS
  • Security is as weak as the weakest link in chain

17
How do these attacks work?
  • Messages that attack mail readers or browsers
  • Denial of service attacks against a web server
  • Password crackers
  • Viruses, Trojan Horses, other malware

18
The concept of a Vulnerability
  • Buffer overflow
  • Protocol/bandwidth interactions
  • Protocol elements which do no work
  • execute this messages
  • The special case of mobile agents
  • Human user vulnerabilities
  • eMail worms
  • Phishing

19
Another Principle
  • There is a never-ending war going on between the
    black hats and the rest of us.
  • For every asset, there is at least one
    vulnerability
  • For every protective measure we add, they will
    find another vulnerability

20
Yet Another Principle
  • There is no such thing as a bullet-proof barrier
  • Every level of the system and network deserves an
    independent threat evaluation and appropriate
    protection
  • Only a multi-layered approach has a chance of
    success!

21
Actual Losses
  • Approximately 70 are due to user error
  • More than half of the remainder are caused by
    insiders
  • Social Engineering accounts for more loss than
    technical attacks.

22
What is Social Engineering?
  • Hello. This is Dr. Burnett of the cardiology
    department at the Conquest Hospital in Hastings.
    Your patient, Sam Simons, has just been admitted
    here unconscious. He has an unusual ventricular
    arrhythmia. Can you tell me if there is anything
    relevant in his record?

23
Social Engineering (2)
From 3dksobinsky_at_zoom-internet.net Sent Sunday,
December 3, 2006 810 AM To rmstronger_at_charter.ne
t Subject Re Approved Please read the attached
file.
24
Program Threats
  • Trojan Horse
  • Code segment that misuses its environment
  • Exploits mechanisms for allowing programs written
    by users to be executed by other users
  • Spyware, pop-up browser windows, covert channels
  • Trap Door
  • Specific user identifier or password that
    circumvents normal security procedures
  • Could be included in a compiler
  • Logic Bomb
  • Program that initiates a security incident under
    certain circumstances
  • Stack and Buffer Overflow
  • Exploits a bug in a program (overflow either the
    stack or memory buffers)

25
C Program with Buffer-overflow Condition
  • include ltstdio.hgt
  • define BUFFER SIZE 256
  • int main(int argc, char argv)
  • char bufferBUFFER SIZE
  • if (argc lt 2)
  • return -1
  • else
  • strcpy(buffer,argv1)
  • return 0

26
Layout of Typical Stack Frame
27
Modified Shell Code
  • include ltstdio.hgt
  • int main(int argc, char argv)
  • execvp('\bin\sh', '\bin \sh', NULL)
  • return 0

28
Hypothetical Stack Frame
Before attack
After attack
29
Effect
  • If you can con a privileged program into reading
    a string into a buffer unprotected from overflow,
    then
  • you have just gained the privileges of that
    program in a shell!

30
Program Threats Viruses
  • Code fragment embedded in legitimate programs
  • Very specific to CPU architecture, operating
    system, applications
  • Usually borne via email or as a macro
  • E.g., Visual Basic Macro to reformat hard drive
  • Sub AutoOpen()
  • Dim oFS
  • Set oFS CreateObject(Scripting.FileSystemObje
    ct)
  • vs Shell(ccommand.com /k format
    c,vbHide)
  • End Sub

31
Program Threats (Cont.)
  • Virus dropper inserts virus onto the system
  • Many categories of viruses, literally many
    thousands of viruses
  • File
  • Boot
  • Macro
  • Polymorphic
  • Source code
  • Encrypted
  • Stealth
  • Tunneling
  • Multipartite
  • Armored

32
Questions?
33
Part 3 Fun with Cryptography
  • What is cryptography about?
  • General Principles of Cryptography
  • Basic Protocols
  • Single-key cryptography
  • Public-key cryptography
  • An example...

34
Cryptography as a Security Tool
  • Broadest security tool available
  • Source and destination of messages cannot be
    trusted without cryptography
  • Means to constrain potential senders (sources)
    and / or receivers (destinations) of messages
  • Based on secrets (keys)

35
Principles
  • Cryptography is about the exchange of messages
  • The key to success is that all parties to an
    exchange trust that the system will both protect
    them from threats and accurately convey their
    message
  • TRUST is essential

36
Therefore
  • Algorithms must be public and verifiable
  • We need to be able to estimate the risk of
    compromise
  • The solution must practical for its users, and
    impractical for an attacker to break

37
Guidelines
  • Cryptography is always based on algorithms which
    are orders of magnitude easier to compute in the
    forward (normal) direction than in the reverse
    (attack) direction.
  • The attackers problem is never harder than
    trying all possible keys
  • The more material the attacker has the easier his
    task

38
Example
  • What is 314159265358979 ? 314159265358979?
  • vs.
  • What are prime factors of391257150641938709059482
    8508241?

39
Time marches on
  • We must assume that there will always be
    improvements in computational power, mathematics
    and algorithms.
  • Messages which hang around get less secure with
    time!
  • Increases in computing power help the good guys
    and hurt the bad guys for new and short-lived
    messages

40
Caveat
  • We cannot mathematically PROVE that the inverse
    operations are really as hard as they seem to
    beIt is all relative
  • The Fundamental Tenet of Cryptography
  • If lots of smart people have failed to solve a
    problem, it wont be solved (soon)

41
Secret key cryptography
K
K
f (T,K)
g (C,K)
C
T
T
Cleartext
Cleartext
Cyphertext
42
Secret Key Methods
  • DES (56 bit key)
  • IDEA (128 bit key)
  • http//www.mediacrypt.com/community/index.asp
  • Triple DES (three 56 bit keys)
  • AES
  • From NIST, 2000
  • choice of key sizes up to 256 bits and more
  • Commercial implementations available

43
Diffie Hellman
Alice
Agree on p,g
Bob
choose random A
choose random B
TA gA mod p
TB gB mod p
compute (TB)A
compute (TA)B
Shared secret key is gAB mod p
44
DH Problems
  • Not in itself an encryption method we must
    still do a secret key encryption
  • Subject to a man in the middle attack
  • (Alice thinks she is talking to Bob, but actually
    Trudy is intercepting all of the messages and
    substitution her own)

45
RSA Public key cryptography
Key 1
Key 2
f ()
f ()
C
T
T
Cleartext
Cleartext
Cyphertext
Key 1 can be either a Public Key or a Private
Key. Key 2 is then the corresponding Private Key
or Public Key.
46
RSA Public Key Cryptography
  • Rivest, Shamir and Adelman (1978)
  • I can send messages that only you can read
  • I can verify that you and only you could have
    sent a message
  • I can use a trusted authority to distribute my
    public key
  • The trusted authority is for your benefit!

47
RSA Details
  • We will use the same operation to encrypt and
    decrypt
  • To encrypt, we will use e as a key, to decrypt
    we will use d as a key
  • e and d are inverses with respect to the chosen
    algorithm

48
RSA Details
  • Choose n as the product of two large primes
  • Finding the factors of a large number is
    mathematically hard (difficult)
  • Finding primes is also hard
  • Choose e to be a (fairly small) prime and compute
    d from e and the factors of n
  • THROW AWAY THE FACTORS OF n!
  • Publish two numbers, e (public key) and n

49
RSA Details
  • Encryption Cyphertext (Cleartext)e mod n
  • Decryption Cleartext (Cyphertext)d mod n
  • Typical d will be on the order of 500 to 700 bits
  • The cost of the algorithm is between 1? and 2 ?
    the size of n,
  • Each operation is a giant shift and add (multiply
    by a power of 2)

50
RSA Problems
  • It is much more costly than typical secret-key
    methods ?
  • Use RSA to hide (i.e., encrypt) a secret key,
  • Encrypt the message with the secret key and
    append/prefix the encrypted key
  • Requires a Public Key Infrastructure for
    effective key generation and distribution
  • Chain of trust thing again!

51
Message Digests (aka Digital Signatures)
  • A message digest is a non-reversable algorithm
    which reduces a message to a fixed-length
    summary
  • The summary has the property that a change to the
    original will produce a new summary
  • The probability that the new summary is the same
    as the old should be 1/(size of digest)
  • Silbershatz, p. 582 (15.4.1.3)

52
Message Digests (2)
  • There are several good (but possibly no perfect)
    message digest algorithms
  • MD5 is probably the most common one in use 128
    bit digest
  • has known weaknesses
  • SHA-1 160 bit digest (current best choice)
  • Another product of NIST

53
Conclusion
  • Protection in OS is
  • Difficult
  • Important
  • Security is needed for
  • Authentication of users
  • Validation of communication

54
Reading Assignment
  • Silbershatz, Chapter 15
Write a Comment
User Comments (0)
About PowerShow.com
