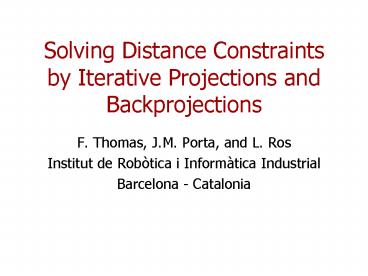

Solving Distance Constraints by Iterative Projections and Backprojections

1
Solving Distance Constraints by Iterative
Projections and Backprojections

• F. Thomas, J.M. Porta, and L. Ros
• Institut de Robòtica i Informàtica Industrial
• Barcelona - Catalonia

2
Outline

• The problem
• Realizability and its characterization
• The Cholesky decomposition
• The algorithm
• Examples

3
The problem
Given a set of points and some pairwise
distances Find all point configurations
compatible with the distances Up to mirror and
rigid transformations
4
The problem
Given a set of points and some pairwise
distances Find all point configurations
compatible with the distances Up to mirror and
rigid transformations
5
Translating a 6R robot into a set of distance
constraints
An articulated ring of six tetrahedra 12 points,
30 known distances, 36 unknown distances
6
Trilaterable robots
Sometimes, the unknown distances may be obtained
by a sequence of trilaterations
7
Trilaterable robots
Similarly, the 3-2-1 and 3/2 parallel robots are
also trilaterable
8
Outline

• The problem
• Realizability and its characterization
• The Cholesky decomposition
• The algorithm
• Examples

9
Realizabilityof a distance matrix

• A distance matrix D is said to be realizable in
  d - space if there is a configuration of points
  in such space whose pairwise distances are those
  specified in D

10
Necessary and suficient conditions of
realizability

• The elements of a distance matrix must satisfy
  certain algebraic conditions to guarantee that it
  is realizable (that it comes from a point
  configuration in 3-space)

Mainly two characterizations have been reported

• Theory of Cayley-Menger determinants
• Theory of positive semidefinite matrices

11
Theory of Cayley-Menger determinants
Conditions that a set of distances between points
must satisfy so that the points have a valid
configuration in 3D

• All C-M determinants of 6 points 0
• " " " 5 points
  0
• " " " 4 points 0
• " " " 3 points 0

12
Theory of semidefinite matrices (I)
13
Theory of semidefinite matrices (II)
Theorem (Schoenberg 1935)
A distance matrix D, n ? n, is realizable in d
space if, and only if, its associated Gram
matrix G, n-1 ? n-1, is positive semidefinite of
rank d
14
Outline

• The problem
• Realizability and its characterization
• The Cholesky decomposition
• The algorithm
• Examples

15
The Cholesky decomposition
Provides
A consistency test for our distance matrix D
16
Geometric interpretation
In general If the initial dimension is d, after
d projections the points of the configuration
will collapse to a single point
Iterating
17
Geometric interpretation
(In general, after d projections, we get an n-d x
n-d zero matrix)
In sum
In general If the initial dimension is d, after
d projections the points of the configuration
will collapse to a single point
18
Outline

• The problem
• Realizability and its characterization
• The Cholesky decomposition
• The algorithm
• Examples

19
The algorithmBasic operations

• Projection
• Backprojection

20
Projection
Uses the geometric interpretation of the Cholesky
decomposition to prune regions of the search
space that contain no solution. Best seen on an
example
21
Projection (cont)
Contains the zero matrix
Detected does not contain the zero
matrix. 5.1,5.2 can be pruned from the search
space
22
Backprojection
The projection scheme
can be reversed
23
The basic algorithm in 2D
Projection phase
If the new bounds arent much smaller, bisect
the bounds
Backprojection phase
24
Outline

• The problem
• Realizability and its characterization
• The Cholesky decomposition
• The algorithm
• Example

25
ExampleThe 3RPR planar manipulator
26
ExampleThe 3RPR planar manipulator
Choosing the previous leg lengths, it has rigid
and flexible configurations
flexible
rigid
27
Solutions found
One box, for each isolated solution
28
Conclusions

• An algorithm for solving systems of distance
  constraints based on projections and
  backprojections

It relies on a necessary and sufficient condition
of realizability, thus avoiding the cluster
effect
Its speed of convergence to the solutions depends
on the chosen sequence of projections that are
iteratively applied
29
Future work
30
(No Transcript)
31
Projection in detail
i
j
