Designing Classes

1

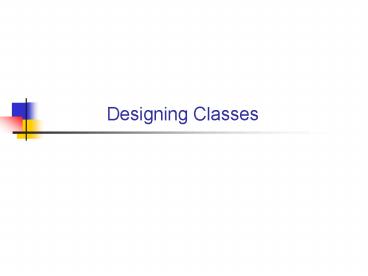

Designing Classes
2
Identifying Classes

• During design, you need to identify the classes.
  Classes are used to model things
• Tangible things in the design nouns, such as
• purse, mailbox, bank account, keypad, email
  message
• Users
• Student, Administrator, Bank Manager
• Agents ("-er" or "-or" words)
• Scanner, file reader, sentence reader, CSVreader
• agents perform some operation (sentence reader)
• Events and Transactions
• Button click, ATM Withdrawal, Register for Course
• transactions are uses for interactions between
  classes, usually contain info that doesn't
  "belong" in a thing class

3
Identifying Classes (2)

• Interfaces and Devices
• connection to a database -- "a connection"
• Printer, File, URL
• Foundation Classes
• String, List, Queue, Rectangle, Button
• basic "data types" with well-known properties
  Date, Money

4
Identify Responsibilities

• Verbs in specification often are responsibilities
• deposit
• withdraw
• confirm

5
Assigning Responsibilities

• Best Design
• A class should have only one purpose
• (but may have several related behaviors)
• Purse responsible for managing coins in a purse
• More than one CLOSELY related responsibilities OK
• Bank purpose is to manage bank accounts and
  assets
• A class should have well defined responsibilities
• ATM communicate with the client and execute
  transactions (but not verify them... that's the
  Bank's job)

6
Assigning Responsibilities

• CRC card approach
• no more than you can write on a 3x5-inch note
  card
• Avoid Bloated Classes
• Put unrelated responsibilities in different
  classes
• If a class gets too large, look for ways to
  delegate some responsibility to other classes.
• A class with no responsibility can be eliminated

7
Identifying Behavior

• What behavior (methods) must a class provide to
  perform its responsibilities?

• A Purse is responsible for managing coins in a
  purse.
• Behavior a purse should have
• insert coins
• withdraw coins
• get the balance
• is it full? purse has a limited capacity

8
Behavior

• Behavior should be related (coherent)
• don't put unrelated responsibilities into the
  same class
• avoid assigning too many behaviors to a class

• A Purse is not responsible for
• printing the balance
• asking the user what he wants
• computing the price of stuff

9
(No Transcript)
10
Writing Better Code

• 1. Write code that is easy to read
• Use comments!
• Use descriptive variable names
• Follow a formatting convention

public Money withdraw( int x ) int t
Math.min(x/10,ten) x - t10 int f
Math.min(x/5,five) x - f5 int o
Math.min(o,one) x - o1 if (x0) return new
Money(t,f,o) return null
11
Writing Better Code

• 2. Localize variables
• use attributes only for things that are an
  object's state
• minimize sharing of information between methods

public class Purse private Money money new
Money( ) //BAD int ones, fives, tens //BAD
not local vars public Money withdraw( int amount
) ones ... // how many ones to
withdraw fives ... // how many fives to
withdraw tens ... // how many tens to
withdraw money.setOnes(ones)
money.setFives(fives) money.setTens(tens) re
turn money
12
Writing Better Code

• 2. Localize variables
• better use a local Money object for the
  withdraw.
• also avoids problem of breaking encapsulation of
  attributes

public class Purse //X private Money money
new Money( ) public Money withdraw( int amount
) int ones ... int fives ... int
tens ... //X money.setOnes(ones)
money.setFives(fives) //X money.setTens(tens)
return new Money( tens, fives, ones) //GOOD
13
Writing Better Code

• 3. Minimizing Coupling between classes
• Classes are coupled if
• a class uses attributes or constants from other
  class
• a class contains objects from other class
• a class's method has a parameter of type other
  class

Bank
ATM
Manager
ATM Keypad
ATM Display
Database
14
Writing Better Code

• 4. Use Interfaces to specify required behavior
• reduces coupling and promotes re-usability

"Program to an interface, not an implementation"
// a course contains a list of students class
Course private List students ... students
new ArrayList( )
List is an interface
ArrayList is a kind of list
15
Writing Better Code

• 5. Limit the visibility of methods and attributes
• only required behavior and constants are public
• attributes are private, with public accessor
  methods
• only write a mutator ("set") method if it is
  necessary
• be suspicious of protected attributes, especially
  in the default package

16
Writing Better Code

• 6. Code re-use
• know the Java API. Use API methods instead of
  writing them yourself.
• simple, single-responsibility classes with low
  coupling promote code re-use.
• Example a "List" class is more reusable than a
  "List of Bank Accounts".

17
Additional Topics for Self-Study

• Java I/O Hierarchy
• what I/O classes are there? How are they used?
• what are the interfaces? what is their behavior?
• java.io package
• Java Collections Framework
• what collection classes are there? (List, Queue,
  Hash, ...)
• why is it called a "framework"?
• know the common interfaces Iterator, List,
  Map, Queue, Set, SortedSet
• Graphics
• AWT and Swing are frameworks
• Component, Container, and JComponent form the
  basis

18
Designing a Class's Interface
19
5 Criteria for Good Interface Design

• Convenience - has methods that make it easy for
  programming to access the desired behavior
• Clarity - purpose of interface should be clear to
  the programmer.
• Consistency - method names and signatures are
  consistent with each other, and consistent with
  those of other, similar classes
• Completeness - class provides methods for all
  required behavior
• Cohesion - a class's responsibilities (methods)
  are all related to a common concept or purpose

20
What about Coupling?

• Coupling is important, too.
• But, coupling is a property of a class's
  implementation, not its interface.

Low Coupling - class doesn't depend to too many
other classes. Exception coupling to stable
classes -- such as the Java foundation classes --
is OK.
21
Interface Design and Class Design

• These criteria are related to the class's
  interface
• Convenience
• Clarity
• Consistency
• Completeness
• Cohesion
• This concerned with a class's implementation
• Coupling

22
Convenience and Clarity

• Here are two ways of doing the same thing
• if ( collection.isEmpty( ) ) break
• if ( collection.size() 0 ) break
• which one makes it easier to understand the
  purpose ?
• This is an example of clarity and convenience (
  I'm too lazy to type " 0" ).

23
Clarity

• Get the last element from a list
• Object e list.get( list.size() - 1 )
• // or
• Object e list.getLast( )
• Get the first element from a list
• Object f list.get( 0 )
• // or
• Object f list.getFirst( )

24
Completeness

• BinaryTree
• BinaryTree( )
• add( E obj ) boolean
• size( ) int
• height( ) int
• isEmpty( ) boolean

Is this good enough for a BinaryTree? What
methods are missing? delete( E obj
)__________ contains( E obj ) boolean ___________
__________ _____________________
Fails to meet the design criterion of
______________
25
Coupling
Account
ActivityHistory

Bank
Customer
Transaction

• This has high coupling (bad)
• HARD TO MAINTAIN (MODIFY)
• HARD TO TEST

26
Cohesion
Good Design
Bad Design
Customer getAccounts()
Account getBalance() getOwner() deposit(
) withdraw() doInteterest()
Customer countAccounts( ) getBalance( k
) deposit( k, amt ) withdraw( k, amt
) doInteterest( k )
handle responsibilities directly related to
customer.
handle responsibilities directly related to bank
accounts.
handle responsibilities directly related to bank
accounts.
27
Consistency

• Convert String to a Number
• d Double.parseDouble( string )
• k Integer.parseInt string )
• l Long.parseLong ( string )
• Convert Number to a String
• s Double.toString( d )
• s Long.toString( l )
• s Integer.toString( k )

Consistent Interface
28
Convenience

• s Long.toString( n )
• is the same as
• s ( new Long( n ) ).toString()
• which one is more convenient?

29
Modeling
30
3 Levels of Modeling

• Domain Model - model of the problem in
  terminology of the domain of application. Uses
  stakeholders' terms.
• Design Model - software design.
• Implementation Model - package, class, and
  behavior model for how the software will be
  implemented.

31
4 Parts of a Model

• Different views to help understand the problem
• Class Model - model of structure
• State Model - the states of components and how
  they transition to other states
• Behavioral Model - how objects react to different
  external triggers
• Collaboration Model - how objects interact

• Which UML diagram(s) are useful for these views?
• Class diagram
• State (Machine) diagram
• Sequence and Activity diagrams
• Communications Diagram
