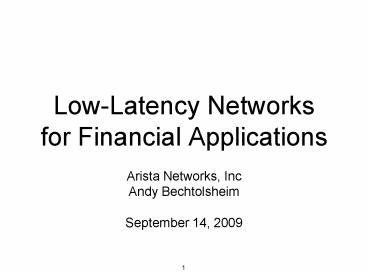

LowLatency Networks for Financial Applications

1
Low-Latency Networksfor Financial Applications

• Arista Networks, Inc
• Andy Bechtolsheim
• September 14, 2009

2
Wall Street Key Issues
Network Fabric is an integral element of the
solution and key to business success
3
Latency The race to Zero
Every Microsecond Counts
TM
4
Use Case Market Data

• Since 2007, end-to-end latency has been reduced
  frommany hundreds of microseconds to tens of
  microseconds
• This was achieved through a combination of(1)
  faster CPUs(2) faster Network Interface
  Controllers, (3) accelerated middleware
  appliances, (4) ultra-low latency switches,
  and(5) a lot of tuning
• Reduction on latency was achieved while
  transaction ratesincreased dramatically, by as
  much as a factor of 10

5
Market Data Example
20 usec
Arista saves 20 usec in end-to-end latency
6
Proven Messaging Performance
Latency from publisher API to subscriber API
7
Minimizing Latency

• Reduce the number of software layers
• Application-application send-receive
• Avoid the operation system if possible
• Minimize the number of context switches
• Use ultra-low-latency network switches

8
Switch Latency Comparisons
9
End-to-end Latency
Arista Switch latency is almost negligible
10
Partnering with all leading NIC Vendors
11
Working with all leading messaging vendors
12
Latency Conclusions

• Latency requires optimizing all levels of stack
• Aristas switch latency is 1/5th to 1/50th of
  other low-latency Ethernet switches
• Arista is delivering this value in partnership
  with all leading NIC and messaging vendors
• Ethernet switch latency no longer a limitation

13
Scaling the Network
14
Cost-Efficient Scalability

• Applications require wire-speed performance for
  fabrics with 1000s of servers
• Today the cost of fabric bandwidth increases
  dramatically as the size of the fabric increases
• This needs to change in order to
  buildlarge-scale high-performance applications

15
The Cost of Bandwidth
Aristas Cost/Bandwidth remainsapproximately
flat as network scales Competitions
Cost/Bandwidth grows dramatically as network size
increases For large networks, the difference can
be as large as 101
16
Flat L2 Fabric Design

• Core Switch
• Hundred of 10G ports
• Wire-speed architecture
• Leaf Switch
• 24 to 48 10G ports
• 4 or more 10G uplinks
• Overall Capacity
• gt 10,000 ports
• gt 10 Tbps throughput

17
MLAG (Multi-Chassis LAG)

• Benefits of MLAG
• Leverages standard LAG protocol
• Enable Active-active load sharing
• Enables L2 Multipathing
• Automatic Failover in case of failure
• Simplified Spanning Tree
• Provides Scaling and Redundancy

A redundant load-sharing L2 network without
inventing any new protocols
18
MLAG (Multi-Chassis LAG)
MLAG can be extended from leaf switch layer into
the core enabling a load-sharing L2 fabric
19
MLAG Advantages

• Leverages existing LAG protocol
• 100 compatible with IEEE 802.3ad LACP
• Standard protocol, no vendor lock-in
• Millisecond Failover
• Does not rely on spanning tree
• Yet compatible with spanning tree
• Does not require L3 Routing
• Enables scalable active/active L2 networks

20
Fabric Scaling Summary

• Bandwidth per server is determined by the
  non-blocking core/spine switching bandwidth
• To achieve low latency and minimize
  jitterrequires a non-blocking core fabric design

• MLAG is a simple and effective solution for
  scalable and reliable network design

21
Arista EOSExtensible Operating Systems
22
Arista EOS Modular Architecture
23
Arista EOS Modularity
24
Arista EOS Extensibility
Load Balancing
FireWall
PTP IEEE 1588
PXEBoot
NetworkVCR
3rdPartyMgmt
Arista EOS
25
Citrix VPX Virtual Appliance

• Runs inside Arista Switch
• Load-balancing with Application Security
• Accelerates Web Application Performance

26
EOS Extensibility What is Next?

• Any application that runs on Linux
• Third party or customer developed
• APIs to the network switch state
• Control and Datapath Interfaces
• Cloud Flow Interface

27
Arista Product Summary

• Ultra low-latency switch architecture
• Highest density 10G switches in industry
• Roadmap to 40 and 100 Gigabit Ethernet
• Support for all 10/40/100G Physical Layers
• Extensible EOS Software Architecture

28
