Title: Charging of Dust in a Plasma with Negative Ions


1

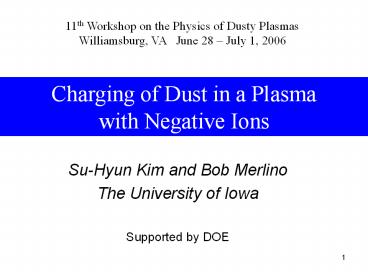

Charging of Dust in a Plasmawith Negative Ions
11th Workshop on the Physics of Dusty
Plasmas Williamsburg, VA June 28 July 1, 2006
  • Su-Hyun Kim and Bob Merlino
  • The University of Iowa
  • Supported by DOE

2
Positive Dust
  • Photoelectric charging
  • Secondary emission
  • Ti gt (mi/me) Te
  • If electrons areattached to heavynegative ions

3
Dust in plasmas with negative ions
  • the plasma environment of the nighttime polar
    mesosphere is dominated by negative and positive
    ions, few electrons, and nanometer size particles
  • microelectronic manufacturing devices using
    reactive gases, such as silane,SiH4, have large
    concentrations of negative ions and dust
    particles

4
Plasma densities in the polar mesosphere
M. Rapp et. al, GRL 32, L23821 (2005)
5
Mesospheric particle detector current
The detector currents correspond to positive
charge densities, eZN 100 e/cm-3
6
Hydrogenated amorphous silicon (a-SiH)
semiconductors
  • for liquid crystal displays and solar cells
  • made by PECVD in rf discharges using
    hydrogen-diluted silane
  • SixHm (x ?200) nm size particles also form and
    incorporate into the depositing film
  • particles must be neutral or to get out
  • in these electronegative discharges neltltni
  • effect of ve ions must be considered

7
STM image of a nanoparticle on a 4.2 nm thick
a-SiH film
nanoparticle
film
substrate
Tannenbaum, et. al, APL 68, 1705 (1996)
8
Charging of dust with positive ions, negative
ions and electronsMamun Shukla, PoP 10,1518
(2003)
Vs Vf ? Vp
Vs lt 0
Vs gt 0
9
Solutions to the charging equations
n ne n ? ? ne/n ? n (1
?)n
10
Experiment
  • negative ion plasma, with ne ltlt n
  • dust particles
  • Q machine plasma
  • K ions
  • Te Ti ? 0.2 eV
  • admit SF6 gas to form
  • negative ions
  • Disperse hollow glass
  • microspheres (35 mm)
  • using rotating cylinder

11
Negative ion plasmas in a Q machine
very effective due to low Te
N. Sato, in K Q machine
12
Langmuir curves before and after dust added
13
Data analysis
  • Analysis of the Langmuir probe currents can be
    used to determine how the charge in the plasma is
    divided between free /- ions, free electrons
    and dust particles.
  • Charge neutrality in dusty plasma
  • en Qnd ene en

h is determined from the changes in negative and
positive probe currents when dust is introduced
14
Data analysis
if e ne/n ltlt1 (electrons attached to SF6)
The sign of R R determines the sign of the
dust charge, Q
15
Results
16
Qnd/eno vs. e
17
Langmuir Probe floating potential (relative
tothe plasma potential) vs. P(SF6)
18
Summary and Conclusions
  • dust charging in a plasma with negative ions has
    been studied experimentally
  • the addition of negative ions reduces the density
    of electrons leading to a reduction in the
    (negative) charge on dust
  • conditions have been established which cause
    positive charging of dust, in a plasma with light
    ions and heavy - ions

19
