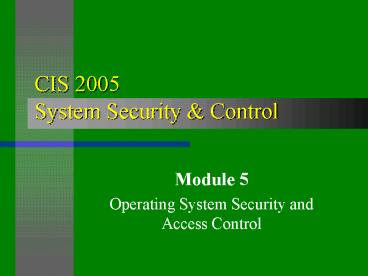

CIS 2005 System Security

1
CIS 2005System Security Control

• Module 5
• Operating System Security and Access Control

2
Module Objectives

• identify the four types of separation that
  operating systems can use
• describe how memory and address protection can be
  achieved by operating systems
• demonstrate an understanding of different methods
  of access control to general objects

3
Module Objectives (Contd)

• understand the need for user authentication
• list various methods of user authentication and
• list advantages and disadvantages of password
  systems.

4
Operating System Security Issues

5
Operating System Security Issues

• Due to
• Multiple programs running at once
• Multiple users using the same system
• Relates to
• Memory, disk drives, programs, data, networks,
  printers and other input/output devices

6
Separation Sharing

• The basis of Operating System protection is
  keeping one users objects separate from other
  users.
• It also needs to provide sharing of some objects.

7
Four types of Separation

• Physical separation
• Temporal separation
• Logical separation
• Cryptographic separation

8
How to handle Sharing?

• These are various methods in increasing order of
  difficulty to implement and increasing
  protection.
• Do not protect
• Isolate
• Share all or share nothing
• Share via access limitation
• Share by capabilities
• Limit use of an object

9
Memory and Address Protection

• Fence
• Relocation
• Base/Bounds Registers
• Tagged Architecture
• Segmentation
• Paging
• Combined Paging with Segmentation
• (Note You need to understand these concepts, but
  not every detail from the textbook.)

10
Control of Access to General Objects

• Memory protection can be easily defined because
  access to memory should be done via programs and
  go through certain points of the hardware.
• However, other objects such as files, hardware
  devices and data structures, may be accessed by a
  user, program or other objects. The number of
  points of access may be large and type of access
  more than just read, write and execute.

11
Access Control Techniques

• Directory like notes for each user which lists
  the files they can access.
• Access Control List one per object rather than
  user, and lists all subjects with access. To
  reduce overheads, groups and wild cards can be
  used.
• Access Control Matrix like a grid with objects
  on one side and subjects on the other. If access
  rights exist, they are stored at the junction of
  the two.

12
Access Control Techniques (Contd)

• Capability subject must produce a ticket to
  confirm access to an object.
• Procedure Oriented Access Control all access to
  an object has to go through a procedure
  protecting it.

13
File Protection

• We will look more closely at File Protection
  mechanisms that can be used. A basic
  understanding of the concepts is required.
• All-None protection
• Early use, only some system files were protected
  with a password.
• Group protection

14
Single Permissions

• Password or Other Token
• Allow user to apply a password to a file.
• Difficulties are loss, use, disclosure
  revocation.
• Temporary Acquired Permission
• suid (set userid) in Unix operating system
• While running a program, you may have access like
  the owner of the program, not your own.

15
Per Object and Per User Protection

• Such as with Access Control Lists and Access
  Control Matrices.
• Difficulties arise when many different variations
  in access are required and therefore, use of
  groups is limited.

16
User Authentication

17
What is Authentication?

• Authentication refers to the process of verifying
  the claimed identity of a user.
• Most of the protection offered by an Operating
  System is based on the user. If we cannot confirm
  the identity of the user then how can we ensure
  protection.

18
Types of authentication

• PIN
• password
• your mothers maiden name

Something you know

• Biometrics
• Fingerprint
• Voice
• Retina

Something you have
Something you are

• Smart card
• Keys
• Dr/Cr card
• Drivers license

19
Something you know
20
Passwords

• Passwords have been known to be poor
  authentication mechanisms.
• However, due to the legacy of systems which use
  them, it is important to understand the
  procedures that can be followed to improve their
  effectiveness.
• It is also important to understand that they are
  very effective when used in combination with
  other methods.

21
Password selection criteria

• Use non-alphabetic characters, upper lowercase
• Choose long passwords
• Avoid actual names or words
• Dont use information easily obtained about you
  (eg, phone number, address, DOB, login name)
• Choose an unlikely password (eg, 2Brn2B)
• Dont write it down
• Change it regularly
• Dont use the same password for different areas

22
Password administration issues

• Training and education of users is needed in an
  ongoing basis on the selection of passwords and
  their need for confidentiality of passwords at
  all times.
• As an administrator, do not be too hard on users
  that ask to change their password due to memory
  loss or suspicion of disclosure to third party.
• Use of random checks can help identify weak
  passwords on your system.

23
Word of warning

• Remember the Principle of Effectiveness.
• If you make the constraints on passwords such as
  length, time between change or content too
  difficult, some users may resort to writing the
  password down.

24
Challenge-response systems

• Password changes every time it is used
• You and the system know a mathematical function
• The system provides an argument and you compute
  and return the value

Argument to the function
User calculates the answer
Answer
25
Something you are
26
Biometrics

• Biometrics are some immutable, verifiable human
  characteristics, which may be physiological,
  behavioral, or morphological.
• When using biometrics as an authentication
  device, you must accept a certain level of false
  positives and false negatives.

27
Examples of biometric data

• Retina patterns
• Finger prints
• Hand prints
• Voice patterns

28
Something you have
29
Smart cards

• Plastic card with an imbedded silicon chip
• Similar shape to ATM cards, but can be in other
  shapes (eg, a ring, watch, bracelet)
• Produced by Visa, MarterCard, Mondex, American
  Express, Telstra etc.
• Contact-based vs. contactless

30
Smart cards processing capabilities

• Magnetic stripe card (not a smart card)
• holds up to 140 bytes of data
• Memory storage only
• holds up to 1Kb of data
• Micro-processor
• holds up to 8Kb of data, 8 to 32-bit CPU
• Optical memory cards
• Uses a piece of compact disk (CD)
• holds up to 4.9Mb

31
User Authentication

• Pulling it all together

32
Pulling it all together

• Ideally, you dont rely on just one form of User
  Authentication. A combination of two or more
  methods which cover at least two of the
  categories will greatly reduce the chance of
  impersonation.
• Many authentication mechanisms need strong
  procedures/training in place for the users to
  strengthen security.
