SYN Attack TCP State Machine

1

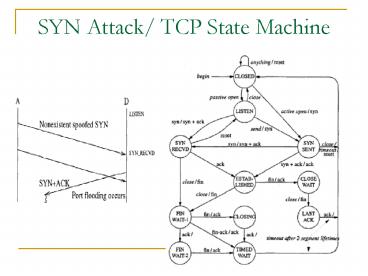

SYN Attack/ TCP State Machine
2
Proposed Solutions /Tradeoffs (1)

• Configuration improvements
• Reduce timeout period
• Increase backlog queue disable non-essential
  devices
• Configure external interfaces on routers to block
  packets that have source addresses from the
  internal network, and vice versa.

3
Proposed Solutions /Tradeoffs (2)

• Infrastructure improvements
• Address spaces reachable over the interfaces of
  routers should be disjointed and well-defined,
  clearly separating inside from outside.
• Cryptographically sign all source IP packets.

4
Proposed Solutions /Tradeoffs (3)

• Connection Establishment Improvements
• Half open connections can be saved if there was
  a mechanism to re-generate sequence number.
• One such mechanism proposed involves computing
  sequence number as a hash value with source/dest
  IP addresses, ports, ISS of originator etc with a
  secret key. When the third message is received
  value can be regenerated and connection finalized.

5
Proposed Solutions /Tradeoffs (4)

• Firewall approach
• Relay approach when SYN is received firewall
  will answer on the hosts behalf. Will contact
  host and establish second connection only when
  third message in the handshake is received.
• Semi-transparent gateway when target machine
  sends back SYNACK, firewall generates ACK to
  send to target machine such that connection can
  be moved out of backlog. Firewall can timeout
  failed connections by sending RST packet.
  Legitimate connections can recovered even with
  duplicate ACK packet.

6
Proposed Solutions /Tradeoffs (5)

• Active monitoring
• General approach whereby agent collects
  communication channel control information that
  can be observed on a monitored network, watches
  for certain conditions to arise and react
  appropriately.
• Attractive due to low cost and flexibility
  neither need new hardware nor software
  modifications.
• Reactive in nature, unlike firewalls which are
  able to block out undesired traffic

7
SYNKILL

• Program considered as an active monitor able
  to read and examine all TCP packets on the LAN,
  as well as able to generate TCP packets to inject
  into the network based on situations.
• IP addresses are pre-filtered/classified
  categories.
• Database of IP addresses and categories enables
  SYNKILL to differentiate potential threats as
  well as recognize authentic addresses.
• Reacts differently to different classifications
  of addresses, and update categories of addresses
  dynamically.

8
