Preparing Audio for the Internet Nick Kereakos MPR

1

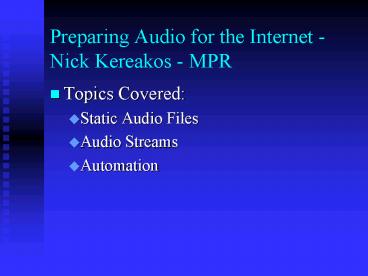

Preparing Audio for the Internet -Nick Kereakos -
MPR

• Topics Covered
• Static Audio Files
• Audio Streams
• Automation

2
Static Audio Files

• What is it?
• Standard computer data file
• Data reduced for internet broadcast
• Audio encoded using a bit reduced perceptual
  audio coder.

3
What do I need?

• Digital Audio Workstation (DAW)
• Personal Computer with an audio card.
• Digital Audio Workstation software.
• Ex.) Protools, Cubase, Sonic Solutions, Peak
  Audio, Sonic Foundry, Cool Edit, etc

4
Digital Audio Workstation
Protools Example
5
Perceptual Audio Coder

• Standard Coders include
• RealNetworks RealAudio
• Windows Media Player
• MPEG Layer III - MP3
• Apples QuickTime

6
Perceptual Audio Coding

• Principles
• Aims to achieve fidelity perceivable by humans.
• This means removing sound we cannot hear.
• Reproducing sound we can hear.

7
(No Transcript)
8
(No Transcript)
9
Preparing Audio for the Web

• Step 1 - Convert Analog source to Digital

10
Methods

• Use DAW
• Prepare Edit Digital Audio File
• Process the file
• Encode file with Encoder of choice

• Use Only Encoder
• Record audio source with Encoder
• Create an encoded audio file.

11
MPRs Method

• Use a DAW
• Increased flexibility
• Original Source file
• Can be use for multiple Encoders
• Ability to edit content
• Better sound quality
• Integration with Broadcasting Automation
  systems.

12
Digital Audio Workstation
Protools Example
13
DAW and Sound files

• Sound file formats
• .WAV (Apple Windows)
• .AIFF (Apple)
• .SND (Apple)
• Sound Designer II (Apple)

14
Sound Files

• PCM Linear Audio File
• CD Quality 44.1 kHz, 16bit
• Broadcasting standard audio file
• Non data reduced
• Cross platform

15
Sound Files

• Broadcasting Systems using files
• Audiovault
• Enco - Dad Pro32
• DCart

16
Preparing Audio for the Web

• Step 2 - Prepare Soundfile for Encoding

17
Audio Processing Dynamics

• Process the sound file
• Compression - reduces dynamic range
• Limiting - to set brick wall upper audio limit
• EQ, to soften upper frequencies

18
Audio Processing Dynamics

• MPR uses WaveConvert

19
Audio Processing Dynamics

• Compression - Reduces dynamic range the Encoder
  needs to calculate. For lower bit rates, this is
  especially important and effective.
• Limiting - This avoids distortion for the end
  user listening via the Web.
• EQ - Softens inherent harshness of low bit rate
  encoded audio.

20
(No Transcript)
21
Digital Audio Levels
Analog Meter
Digital Meter
22
Digital Audio Levels
Analog Meter
Digital Meter
23
Waveform View
Original Source

• Audio Sample - 44.1 kHz 16bit Mono

24
Waveform View
Processed Soundfile

• Audio Sample - 44.1 kHz 16bit Mono

25
Before and after processing
Original Source
Processed File
26
Preparing Audio for the Web

• Step 3 - Real Audio Encoding

27
Oginal urce

• Audio Sample - 44.1 kHz 16bitMono

28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
Real Audio Encoded
34
Coding Effects Comparison

• Original Source File
• Wave Convert Processed file
• Real Audio Encoded

35
Web Audio Stream

• Uses same exact principles
• Audio is sent as a continuous data stream rather
  than existing as a static file.
• Data is reduced for internet broadcast
• Audio encoded using a bit reduced perceptual
  audio coder.

36
Audio Processing Dynamics

• Process the source
• Compression - reduces dynamic range
• Limiting - to set brick wall upper audio limit
• EQ, to soften upper frequencies

• Use outboard audio equipment
• Compressor/Limiter
• EQ, to manipulate frequencies

37
Audio source flow
Compressor/Limiter
Source
Encoder
38
Audio source flow
Encoder
RealServer
End User
39
What if there are problems?

• Monitor your stream
• Install a PC to playback the stream.
• Wire the output of the PCs audio card to a
  silence sensor.
• When the alarm goes off, you know there is a
  problem with the stream.

40
Monitoring the Stream will alert you when

• The Encoder fails
• The source is interrupted or fails
• Your Network fails

41
Automated Static Web Encoding

• Process
• Source Audio file is compiled/recorded
• Dynamics are applied to the audio file
• File is processed in Real Producer
• Web Encoded file is delivered to destination

42
MPRs Design

• ENCO - Dad Pro 32
• Controls SAS Router
• Records appropriate source to a PCM Linear .WAV
  file.

43
MPRs Design

• Static Encode Box
• Running Windows NT 4.0
• NT script moves file from ENCO drive
• WaveConvert Pro applies dynamics to .WAV file and
  creates new file
• Real Producer encodes new .WAV file
• Newly encoded file waits for delivery

44
MPRs Design

• Caravan
• Developed by MPR Online personnel
• Script runs 24 days monitoring directory contents
• When a new Real Audio file is delivered, Caravan
  moves it to its proper location

45
Overall Goals

• Reduce Bit Rate
• Keeps data costs down.
• Reaches more people simultaneously.
• Allows access to people on a dial up modem.

46
Online Resources

• Real Networks
• http//www.real.com
• Real Producer is free
• Real Player is free
• User forums and FAQS are helpful
• http//service.real.com/help/library/guides/produc
  tion/htmfiles/whatsnew.htm

47
Online Resources

• Helpful articles to read
• http//www.sospubs.co.uk/sos/may00/articles/mp3.ht
  ml
• http//www.iis.fhg.de/amm/index.html
• http//www.minidisc.org/PerceptualCoding.html
• http//www.wired.com/wired/archive/7.08/codecs.htm
  l
• http//www.webdeveloper.com/multimedia/multimedia_
  guide_realaudio_2.html
