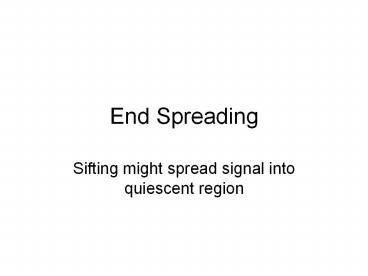

End Spreading

1
End Spreading

• Sifting might spread signal into quiescent region

2
Earthquake Elcentro
3
Earthquake Elcentro IMF CE(100,3)
4
Earthquake Elcentro EIMF (3,0.1,50)
5
Orthogonality Indices
IMF OI ij 0.1982 0.0412 0.0336
0.0534 0.2453 0.0557 0.1723 OI
total -0.4986
EIMF OI ij 0.0395 0.0862 0.0570
0.0423 0.0819 0.1682 0.1522
0.0246 0.2225 OI total 0.0606
6
End spreading

• This is an annoying problem, for to have some
  thing before the sensors were turned on is
  nonsensical.
• But EMD has the tendency to spread the signal
  through the sifting processes.
• End spreading causes deterioration in the
  resulting IMF components.
• EEMD solved the problem to a large extend.

7
Noised Aided Data Analysis II

• Although EEMD alleviates the end spreading
  considerably, there are still cases that signal
  spreading needs to be contained.

8
Noise Aided Data Analysis II

• In EEMD, the finite magnitude noise is added once
  in each of the ensemble. The true solution is
  obtained as the limit of having the number in the
  ensemble approaching infinite.
• In NADAII, the infinitesimal magnitude noises is
  added repeatedly for each IMF extraction.

9
Delta Function

• Noised Aided Data Analysis II

10
Delta Function Data
11
The Procedure

• Perform EEMD and select the first EIMF component
  as the 1st component in the RIMF (Recombined IMF)
• Take the residue and adding noise with amplitude
  1/1000 as the data for the first round
  re-processing to produce EIMF1.
• Take the 1st EIMF component from EIMF1 as the
  second component in the RIMF.
• Take the residue and adding noise with amplitude
  1/1000 as the data for the second round
  re-processing EIMF2.
• (repeat the processes) .

12
Delta Function EIMF(3,0.1,10)
13
Spreading of the signal

• The widths of the IMF signals become increasingly
  wide.
• The spreading increasingly wide into the
  quiescent region as shown in th eprevious figure.


14
Delta Function IMF1(3,0.1,10)
15
Delta Function IMF2(3,0.1,10)
16
Delta Function IMF3(3,0.1,10)
17
The Re-combined IMF

• So far a manual operation.

18
Delta Function RIMF
19
Delta Function RIMF(1) EIMF(1)
20
Delta Function RIMF(2) EIMF1(1)
21
Delta Function RIMF(3) EIMF2(1)
22
Delta Function RIMF(4) residue
23
Delta Function RIMF(4) residue
24
RIMF

• RIMF is a combination of all the individual
  EIMFi, for i1,2,3,
• The spread of each of the component is limited by
  the added noise.
• As a result, the spread is controlled the result
  is more local.
