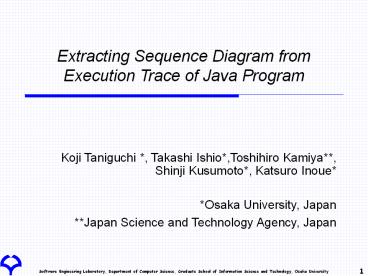

Extracting Sequence Diagram from Execution Trace of Java Program

1
Extracting Sequence Diagram from Execution Trace
of Java Program
Koji Taniguchi , Takashi Ishio,Toshihiro
Kamiya, Shinji Kusumoto, Katsuro
Inoue Osaka University, Japan Japan Science
and Technology Agency, Japan
2
Documents of Evolving Software

• Software is being changed by fixing bugs,
  modifying functions or adding new functions
• Owing to such changes
• No documents may represent the behavior of the
  software correctly because the software is
  repeatedly changed but the documents are not
  updated
• It makes understanding of program behavior
  difficult.
• Especially in object oriented programs
• We need reverse engineering techniques to recover
  some documents from a program.

3
Object Oriented Program Understanding

• Features of Object Oriented Program
• Many objects are concerned with a function
• Owing to dynamic binding and extending, dynamic
  behavior of a program differs from static
  description
• Message exchanges become more compress as
  increases of objects
• It is difficult to understand dynamic behavior of
  objects from source codes
• We need some documents that show dynamic behavior
  of objects

4
Visualizing Dynamic Behavior of Objects

• UML Sequence Diagram
• It shows two kind of messages
• Method Call
• Object Generation
• Showing this diagram, we can understand dynamic
  behavior of objects
• We try to extract sequence diagram by dynamic
  analysis of a program

5
A Problem of Dynamic Analysis

• The amount of information of an execution trace
  is very huge
• Because an execution trace is recorded all method
  calls which occurred in loop and recursive call
  structures.
• If we show all of them in a diagram, we can not
  understand easily
• We need a method to reduce information
• We propose a method that detects some repetition
  patterns from execution trace and abstracts them
  by replacing with a representative of a repetition

6
How to Extract Sequence Diagram

• Get the execution trace
• Compact the execution trace
• Draw the Sequence Diagrams from the compacted
  execution trace

7
Step1 Execution Traces

• The execution trace records the two event Enter
  Method and Exit Method
• we treat the constructor as the one kind of the
  method
• Recorded information
• When a Enter Method event occurred
• Package name, Class name and Object-ID of a
  callee object
• Signature of a method.
• When a Exit Method event occurred
• The method exit mark

8
Step2 Compaction of Execution Trace

• Since an execution trace records many
  information, we need a method to reduce it
• Our method detects some repetitions from
  execution trace and abstracts them by replacing
  with a representative of repetition
• To compact the execution trace, we propose four
  Compaction Rules
• Rules that compact some repetition patterns
• R1 Completely same repetition
• R2 Allowing different objects repetition
• R3 Lack of method calls repetition
• Rule that compacts recursive calls
• R4 Recursive call structure

9
Rule R1 Completely Same Repetition

• R1 compacts a repetition of completely same
  method call structure

first time of the repetition
second time of the repetition
10
Rule R2 Allowing Different Objects Repetition

• R2 compacts a repetition of method call structure
  whose objects may be different

first time of the repetition
second time of the repetition
11
Rule R3 Lack of Method Calls Repetition

• R3 compacts a repetition of method call structure
  some of whose method calls may be lacked

first time of the repetition
second time of the repetition
12
Rule R4 Recursive Call Structure

• R4 compacts recursive call structure by
  reconstructing it to be simple
• R4 also not considers object ID

13
Step3Drawing Sequence Diagram

• Draw a sequence diagram from a compacted
  execution trace
• We define annotation symbols for each compaction
  rule
• Compacted parts are drawn with them in the
  sequence diagram

14
How to draw non-compacted parts
15
Annotation for R1
R1
2
16
Annotation for R2
R2
2
A1
B2,3
a()
b()
17
Annotation for R3
2
R3
?
18
Annotation for R4
R4
R
?
A1,2
B3,4
rec a()
a()
rec a()
b()
19
Case Study

• Case study processes as followings
• Get execution traces from four Java program
• jEditText Editor
• GeminiCode clone analyzer
• SchedulerSchedule management tool
• LogCompactorThe module of our tool that compacts
  execution traces
• Apply four rules to four execution traces.
• The order of applying rules is R4?R1?R2?R3
• Generate Sequence Diagrams

20
Result of Compaction
21
Sequence Diagram
Over View of the Diagram
22
Unified objects
Repetition
23
Summary

• For Object Oriented program understanding
• It is necessary to understand dynamic behavior of
  objects.
• We try to make sequence diagrams from execution
  trace
• The amount of the program execution trace tends
  to be very large
• We proposed a method to reduce information by
  compacting repetition part of the execution
  trace.
• Draw the sequence diagram from the compacted
  execution trace
• We can extract the simple sequence diagram that
  shows dynamic behavior of objects

24
End
25
Compaction (3)
Method

• The prot of the methods which recorded the
  compacted execution trace of Gemini
• The execution trace of Gemini was most compacted
  one.
• But we can see some repetition of the method
  calls remain.
• We need the more effective compaction rules
