Rapid Prototyping

1

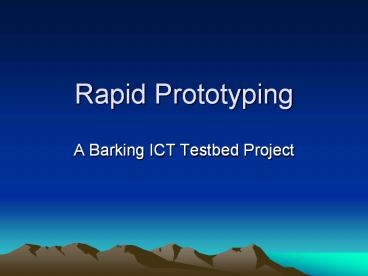

Rapid Prototyping

• A Barking ICT Testbed Project

2
This project involves
3
What is Rapid Prototyping ?

• Rapid Prototyping is the name given to a process
  that produces 3d objects direct from a CAD model.

4
Why Use Rapid Prototyping ?

• Rapid Prototyping reduces the time it takes to
  produce a model of an object
• This allows designers and manufactures to respond
  quickly to market demands.
• Rapid prototyping reduces development costs.

5
Who Uses Rapid Prototyping ?

• Rapid prototyping is used to develop designs for
  a wide range of users including
• Automotive
• Sport
• Medical

6
How does Rapid Prototyping work ?

• There are different types of machine, these
  include
• Stereo Lithography, where a laser is used to
  solidify a liquid plastic.
• Laminated Object Manufacturing, where layers of
  paper or thin plastic are cut and glued together
• Fused Deposition Modelling, where a type of glue
  gun controlled by a computer builds an object in
  layers.
• Three Dimensional Printing, where an inkjet
  cartridge is used to glue together layers of
  power.

7
Fused Deposition Modelling
8
Fused Deposition Modelling
9
Three Dimensional Printing

• Insert video of 3d printer here,
• It is available as realplayer file

10
Three Dimensional Printing
11
Three Dimensional Printing
12
Whats Next

• Over the next few weeks you will be designing a
  product using ProDESKTOP.
• This product will be manufactured at CEME using a
  Z Corp 3d printer.
• Now use the internet to search for rapid
  prototyping and collect pictures of products.

13
Rapid Prototype Models
14
Rapid Prototype Models
15
Rapid Prototype Models
16
Rapid Prototype Models
17
Rapid Prototype Models
18
Rapid Prototype Models
19
Rapid Prototype Models
20
Rapid Prototype Models
21
Rapid Prototype Models
