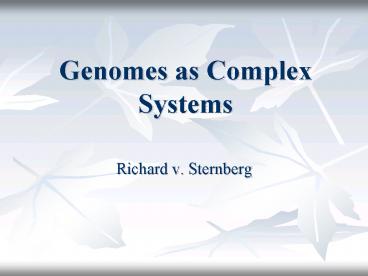

Genomes as Complex Systems

1
Genomes as Complex Systems

• Richard v. Sternberg

2
The Atomistic or Bean-bag View of the Genome

• Most of us are familiar with this model of the
  genome

Genetic Program

Protein 3
Protein 1
Protein 2

Gene 3
Gene 2
Gene 1
3
The Atomistic View of the Genome

• This classical model of the genome emerged as a
  synthesis of four things
• Mendelian laws of inheritance
• Chromosomal theory of inheritance
• The distinction between germline and soma
  (genotype-phenotype difference)
• Population genetics

4
The Atomistic View of the Genome

• This view of the genome ensured the primacy of
  natural selection as the mechanism of
  evolutionary change.

5
The Atomistic View of the Genome

• First, it assumes that the genome alone
  determines organismal characters
• information flow is one-way genotype ?
  phenotype (contra higher-order laws of form).

6
The Atomistic View of the Genome

• Second, because information in the genome is
  context-independent, constraints are not
  operative at the genome-level no internal
  tendencies are present in the genome.

7
The Atomistic View of the Genome

• Third, genetic change is the result of random
  errors in the chromosomal material, and the
  recombination of existing variation.

8
The Atomistic View of the Genome

• Finally, natural selection provides the mechanism
  for evolution by sieving mutated and recombined
  genetic information.

9
The Atomistic View of the Genome

• Yet many genetic and cytological observations
  contradicted the premises of the atomistic genome
  model
• a. Position effects (i.e., gene location
  affects gene expression)
• b. Paramutation (R. A. Brink)
• c. Transposable controlling elements (B.
  McClintock)
• d. Chromatin diminution (e.g., in Cyclops)
• e. Non-random, large chromosomal changes in
  hybrids
• f. C-value paradox/repetitive DNA
• g. Transvection
• h. Obscure connections between genes and
  anatomical homologies
• I. Other inexplicable effects

10
The Atomistic View of the Genome

• Molecular data then emerged (late 1970s-80s)
  that complicated the reductionistic genome model
• prokaryotic and eukaryotic genomes are organized
  differently
• eukaryotic, archaeal genes divided into introns
  and exons
• reverse transcription (RNA ? DNA)
• RNA splicing, including alternative and
  trans-splicing
• RNA editing
• most eukaryotic chromosomal DNA consists of
  transposable genetic elements
• molecular drive of repetitive DNA elements
• non-random distribution of DNA segments
• complexity of genomic regulatory elements
• et cetera

11
The Atomistic View of the Genome

• In addition, a host of phenomena were discovered
  in the 1980s and90s
• A. Transgene chromosomal position effects
• B. Prions
• C. Paternal/maternal genome imprinting
• D. Germline inheritance of epigenetic states
• E. Genomes can be induced to reorganize during
  times of cellular/organismal stress
• F. Genes and genomes are hierarchically
  organized systems (see below)

12

• Lets examine then some basic principles of
  eukaryotic genome organization to see what
  impact, if any, these may have on evolutionary
  theory.

13
Genome Organizational Rules in Eukaryotes

• All known eukaryotic genomes reveal the
  following organizational rules
• Genomic components (genes and various structural
  units) are hierarchies of modules.
• Highly nonrandom placement of gene structures and
  loci along the chromosome.
• Genes and chromosomes occupy distinct territories
  in the nucleus.

14
Protein-coding regions are hierarchies of modules
Exons
Protein-coding segments of gene
zinc-finger domain
a-helix domain
a-helix domain
zinc-finger domain
Protein domains
Codons
(ACG)(CGT)(CAG)
(AGC)(GTT)(CCT)
15
Protein-coding regions are hierarchies of modules

• The average human transcribed region of a gene is

• 95 intronic.
• Exons account for only 1.5 of the human (and
• mammalian) genome.

Protein-coding region of gene
Exon 4
Exon 1
Exon 2
Exon 3
/
/
Introns (nonprotein-coding)
16
Regulatory regions are also hierarchies of modules
Regulatory element
factor-binding regions
Regulatory domains
trans-factor binding motifs
(GAGA)(GAGA)(GAGA)
AATAAGCAATAGGC
17
Genes are concatenations of regulatory and
protein-coding modules
Tissue-specific enhancers
Nuclear matrix attachment site
snoRNA gene
Promoters
Exon 1
Exon 2
microRNA genes
Exon 3
Silencer
Terminator
Exon 4
Nuclear matrix attachment site
18
Loci are often concatenations of genes
Locus-control regions
Gene 3
Gene 4
Gene 2
Gene 1
19
Co-expressed loci are clustered together along
chromosomes and in the nucleus
Nuclear compartment with concentrated transcriptio
n factors
Chromosome 5 loop
Chromosome 21 loop
Chromosome 2 loop
20
Chromosomes are divided into distinct sequence
compartments
GC rich isochore (house-keeping genes, early
replication, dense with SINEs, few LINEs)
AT rich isochore (some tissue-specific genes,
late replication, dense with LINEs, few SINEs)
Centromeric DNA (localized tandem repeats,
retrotransposons, few-to-no genes)
Telomeric DNA (localized short tandem repeats,
retrotransposons, few-to-no genes)
21
The chromosomal neighborhood of a locus
influences its expression
Locus Xgh
100
Xgh expression level
0
Pancreas
Lung
Testes
Heart
22
The chromosomal neighborhood of a locus
influences its expression
Locus Xgh
100
Xgh expression level
0
Pancreas
Lung
Testes
Heart
23
The chromosomal neighborhood of a locus
influences its expression
Locus Xgh
100
Xgh expression level
0
Pancreas
Lung
Testes
Heart
24
The chromosomal neighborhood of a locus
influences its expression
Locus Xgh
100
Xgh expression level
0
Pancreas
Lung
Testes
Heart
25
Genome Organization and Information Flow

• Eukaryotic gene expression is a complex affair
• Many gene products can be encoded by one gene.
• Gene expression is regulated at multiple levels.
• Gene-encoded information is compressed and
  overlapping.
• Genes are fuzzy entities.

26
One gene many transcripts
/
/
Gene
transcription
/
/
AAUAAAA
Primary transcripts
/
/
AAUAAAA
27
Alternative and trans-splicing of transcripts
generates yet more gene products
/
/
AAUAAAA
/
/
AAUAAAA
RNA splicing
AAUAAAA
AAUAAAA
AAUAAAA
AAUAAAA
AAUAAAA
28
Exons assembled by alternative, trans, and
normal splicing
AAUAAAA
AAUAAAA
AAUAAAA
AAUAAAA
AAUAAAA
mRNAs
Translation
Proteins (catalytic, signaling, structural, and
regulatory)
29
Intron and exon RNA also encodes small regulatory
RNAs
AAUAAAA
AAUAAAA
AAUAAAA
AAUAAAA
AAUAAAA
Processing of exons and introns
snoRNAs (RNA editing)
ncRNAs (various roles)
microRNAs (regulatory)
30
Genomes as Complex Systems

• Given all the evidence we now have available, a
  computational systems model of the genome is now
  emerging.

31
21st Century View of the Genome
From Shapiro (2002), Genome organization and
reorganization in evolution. Annals NY Acad. Sci.
981 111-134.
32
Genomes as Complex Systems

• Yet all these discoveries have had almost no
  impact on the neoDarwinian model of the genome.
  Why?
