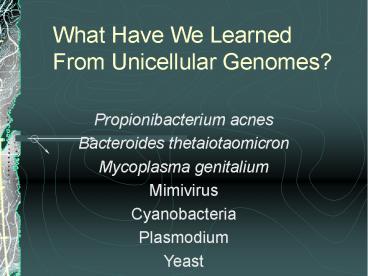

What Have We Learned From Unicellular Genomes?

1
What Have We Learned From Unicellular Genomes?

• Propionibacterium acnes
• Bacteroides thetaiotaomicron
• Mycoplasma genitalium
• Mimivirus
• Cyanobacteria
• Plasmodium
• Yeast

2
Why do I get so many pimples?

• The genome of Propionibacterium acnes was
  sequenced in July of 2004.
• P. acnes lives in sebaceous cysts and sometimes
  stimulates and immune response.
• A group in Paris, along with two groups in
  Germany sequenced P. acnes.
• They found 2,333 genes in its 2.6 Mb genome.
• 68 of these had orthologs in other species.
• 20 had none, and 12 encoded only RNA.

3
Anatomy of a pimple
4
(No Transcript)
5
Genome-wide evaluations

• A first step following bacterial genome
  sequencing is finding the ori and terminus for
  replication.
• GC skewing (non-uniform distribution of Gs Cs
• Oris tend to have the lowest skew, while termini
  have the highest.
• Genes that have originated by horizontal transfer
  are identified using a sliding window to find
  segments with abnormal GC content.
• Codon bias is also used to detect HT. Immunogenic
  and metabolic genes were detected.

6
Transcriptional Phase Variation

• During finishing, it was found that P. acnes had
  a variable of Gs associated with some genes.
• It is hypothesized that the initiation of
  transcription depends on the of consecutive
  Gs.
• As rows of Gs are replicated, the will change.
• This leads to a mixed population of bacteria with
  varying degrees of protein production.
• This diverse population is optimized to respond
  differentially to various skin treatments.

7
(No Transcript)
8
(No Transcript)
9
Digesting Our Cells For Food

• P. acnes was found to be able to grow
  anaerobically as well as aerobically.
• Cells produce many enzymes that are able to
  degrade lipids, ester, and amino acids.
• Some of these degradation products increase
  adhesion to our cells.
• Many of the digestive enzymes contain a motif
  (LPXTG) that targets them to the cell wall.
• Hyaluronate lyase is also found on the surface of
  the bacteria, this destroys the extracellular
  matrix that binds our cells together.

10
(No Transcript)
11
Stimulating the Immune Response

• P. acnes produces 5 CAMP factors (secreted
  proteins that bind antibodies) that can form
  pores in the cell membrane.
• A dipeptide motif (PT) is present in certain
  proteins, this motif is also found in M.
  tuberculosis.
• The bacteria also has at least 7 heat shock
  protein genes.
• Porphyrin is also secreted, which produces toxic
  forms of oxygen, further stimulating the immune
  response.

12
Withstanding the Environment

• P. acnes can signal nearby cells that something
  has changed in the environment.
• Sensors called two-component systems (1 to sense
  1 to signal) exist in some bacteria, P. acnes
  has 10 pairs.
• Quorum sensing is the ability to detect
  conditions of overcrowding. The LuxS gene is
  expressed in these instances, which produces a
  universal signal for interspecies communication
  among bacteria.
• Biofilms of meshed-together cells protect
  themselves.

13
Are all bacteria living in us bad for us?

• An average human body is composed of about 1013
  cells.
• Our intestines have about 1010 microbes/ml and
  contain at least 1,000 ml.
• A majority of the cells in our bodies may be
  bacteria! (500 - 1,000 different species)
• This accounts for 2-4 million non-human genes
• Bacteroides thetaiotaomicron constitutes a
  substantial portion of our intestinal flora.
• A group from Wash. U. in St. Louis sequenced its
  genome.

14
(No Transcript)
15

• Overview of the Genome
• B. thetaiotaomicrons genome contains 6.3 Mb, as
  well as 4,779 genes (and a 33 kb plasmid).
• 58 of ORFs have known function, 18 have
  orthologs of no known function, and 24 have no
  homology with known proteins.
• COGs (functional categories of genes) are
  determined following sequencing to create an
  overview of a given genome.
• Many of the genes specialize in sugar uptake,
  cell wall synthesis, environmental sensing and
  signaling, as well as transposition.

16
Major COGs

• Sugar metabolism- 170 genes fit into this
  category, most bacteria have a set of 23.
• 61 of these appear to be secreted, this not only
  benefits other bacteria but us as well.
• 163 paralogs of 2 genes (SusC SusD) import
  sugars into the cytoplasm of the microbe.
• Many two-component genes are present for
  signaling, some of these interact with s factors.
• 63 tranposons are present, which may help spread
  antibiotic resistance.

17
(No Transcript)
18
Does Size Matter?

• The coding capacity for this genome is very high
  (89 coding DNA) but it has a lower ratio of gene
  to genome size than expected.
• This was a paradox until it was determined that
  the ORFs of this microbe are unusually large. It
  is unclear why this is the case.

Summary

• Gut symbionts provide us with predigested sugars,
  stimulated blood vessel formation, crowd out
  pathogens, sequester limited resources, and
  stimulate our mucosal layer.

19
Can Microbial Genomes Become Dependent Upon Us?

• In the microbial world, if you dont use it- you
  lose it.
• Mycoplasma genitalium has one of the most reduced
  microbial genomes and the 2nd smallest bacterial
  genome with 580 kb (the smallest is N. equitans
  with 490 kb).
• TIGR sequenced its genome in 1995.
• 470 ORFs were found, 96 of which have no known
  orthologs.
• M. genitalium has an 88 coding capacity.

20
(No Transcript)
21
Genes that have been lost

• M. genitalium has presumably lost many genes
  involved in the synthesis of amino acids,
  cofactors, cell envelope, and regulatory factors.
  It has only 1 s factor.
• The microbe has retained genes for energy
  metabolism, fatty acid and phospholipid
  metabolism, nucleotide production, replication,
  transcription, and protein transport.
• The only category overrepresented is translation,
  namely rRNA and tRNA genes.

22
(No Transcript)
23
What is the Minimum of Genes?

• Craig Venter, along with Hamilton O. Smith, is
  trying to construct an organism with the fewest
  possible genes.
• A new field called synthetic biology seeks to
  synthesize a functioning genome de novo.
• A better understanding of evolutionary principles
  and genome circuitry is sought.
• Japanese European scientists have tried to
  identify the essential genes of B. subtilis.
• They have found that only 192 genes are
  indispensable to life.

24
Do all Viruses have Small Genomes?

• Most viral genomes are much smaller than
  bacterial ones
• HIV- 9,200 nt
• WNV- 10,962 nt
• SARs- 29,727 nt
• T7- 39,900 nt
• l- 48,502 nt
• In 2003, a new virus that infects amoeba was
  isolated that has 1.2 Mb! A group in Marseille,
  France sequenced Mimivirus, as it is called.

25
(No Transcript)
26
Mimivirus Genome

• 1,262 ORFs were identified, the coding capacity
  is 90.5.
• Like most viruses, the genome is linear, but it
  has inverted repeats at both ends by which it may
  circularize, perhaps during replication.
• Isoleucine is used twice as often as usual, and
  there is a strong codon bias for codons lacking G
  or C. The genome is 28 GC.
• Mimivirus is overrepresented in genes for
  translation, posttranslational modification, and
  amino acid transport and metabolism.

27
Is Mimivirus Alive?

• The genome of Mimivirus resembles bacterial,
  Mimivirus even stains Gram , is it a virus?
• In 1957, the definition of a virus was proposed
• 1) smaller than .2 microns
• 2) possesses DNA or RNA, not both
• 3) not able to synthesize its own proteins
• 4) cannot generate energy from substrates
• 5) cannot grow by binary fission
• Mimivirus only satisfies the 4th category, we are
  not sure about the 5th.

28
(No Transcript)
29
What is it then?

• Mimivirus has blurred the distinction between
  prokaryotes and viruses.
• It is hypothesized that, like M. genitalium,
  Mimivirus has lost genes over time.
• We will learn of more obligate intracellular
  parasites later in class.
• Mimivirus may resemble some of the earliest forms
  of life that was able to replicate independently
  until it became a parasite.

30
Genomes Reflect an Organisms Ecological Niche

• Cyanobacteria are the most productive
  phytoplankton in the world.
• The two most abundant genera of cyano-bacteria
  are Prochlorococcus and Synecho-coccus. 3
  genomes in the former group and 1 in the latter
  were sequenced in 2003.
• Individual cells from both genera are referred to
  using a numbering system to indicate different
  ecotypes. Species designations are difficult to
  assign still, Prochlorococcus was discovered in
  the 1990s.

31
Prochlorococcus
32
(No Transcript)
33
(No Transcript)
34
Dot Plot Align-ment
35
Prochlorococcus MED4 vs. MIT9313

• These ecotypes share 1,352 orthologs.
• Short diagonal segments indicate synteny.
• A negative slope indicates that the segment was
  inverted in one type relative to the other.
• Segments with positive slope but located off the
  diagonal indicate chromosome recombinations.
• Genes along the axis means they are missing from
  the other ecotype, MED4 has 364 genes not found
  in MIT9313, which has 923 genes not found in the
  other.

36
pcb gene family

• A major difference between the ecotypes is in the
  pcb gene family, which encode chlorophyll-binding,
  light-harvesting antenna complex proteins that
  help capture a wider spectrum of light.
• MED4 (high light) has only 1 pcb gene
• MIT9313 (medium light) has 2 (A B)
• SS120 (low light) has 8 (A-H)
• MED4s gene does not respond to changes in Fe3
  but MIT9313s is induced 7-fold and SS120s is
  induced 23-fold.

37
MED4s Small Genome

• MED4s genome is the smallest known for a
  photoautotroph and may represent the minimum for
  a photosynthetic organism.
• MED4 appears to have lost genes over time.
• A more stream-lined genome means a narrower
  ecological range that an organism is adapted for.
  Synechococcus has the largest genome of this
  group and the largest ecological range as well.
• People have proposed seeding the ocean with Fe3
  to help stimulate CO2 consumption.

38
Gene deletions in Cyanobacteria
39
Malaria

• Malaria, although it rarely makes news headlines,
  is a daily threat to the 3 billion people who
  live in tropical climates.
• In 2002, about 500 million people were infected.
  About 2.7 million people die each year (about 90
  of these are lt 5 years old).
• The cause of malaria has been known for 100 years
  but we still cant stop its spread.
• The most lethal form of malaria is caused by
  Plasmodium falciparum.

40
Lifecycle of Plasmodium
41
RBC Infection

• The most vulnerable time for Plasmodium is during
  the RBC infection stage.
• The parasite must force its way into a RBC
  without rupturing any plasma membranes.
• Three structures are important during infection
• 1) extracellular coating to make cells sticky
• 2) apical end of cell must be oriented downward
• 3) apicoplast is an internalized algal symbiont

42
(No Transcript)
43
Plasmodium Genomes

• Plasmodium actually has three genomes nuclear,
  mitochondrial, and apicoplastic.
• Pulse-field gel electrophoresis to separate
  chromosomes, followed by shotgun genome
  sequencing was used on Plasmodium.
• This proved to be the most AT-rich genome
  sequenced so far (19.4 GC).
• The 22.9 Mb genome has 52.6 coding capacity and
  5,268 ORFs (60 of which have no known function,
  the largest of any genome).

44
Tricking the Immune System

• The genes of Plasmodium that are responsible for
  binding to RBCs and for avoiding the immune
  system are located near the telomeres of this
  eukaryote.
• Genes located near Plasmodium telomeres are
  replicated many times, all three gene families in
  these categories (var, rif, stevor) are
  polymorphic.
• There are 59 var paralogs, 149 rif, and 28
  stevor. This may account for our immune systems
  lack of ability to deal with this parasite

45
The Plasmodium Proteome

• 1 of proteins are used for host cell invasion
• 4 help evade the immune response
• 31 are integral to the membrane
• 14 are enzymes (about 4x lt most proteomes)
• 10 are transported to the apicoplast
• 60 have unknown function
• The Krebs cycle is present, but the organism
• grows anaerobically and only uses this cycle for
• heme biosynthesis (which it could get from us)

46
Apicoplast Proteome

• Similar to a chloroplast in origin but used for a
  different purpose now.
• Only two photosynthetic orthologs remain.
• This organelle synthesizes fatty acids,
  isoprenoids, and heme groups.
• Nuclear proteins sent here assist in DNA
  replication repair, transcription, translation,
  posttranslational glycosylation, protein import,
  and protein degradation.

47
Comparing Plasmodia

• The Plasmodium sequencing project took 45 people
  6 years to complete.
• At the same time, other groups were working on P.
  yoelii, which infects rats and is used as a model
  organism for malaria research.
• Unfortunately, this latter genome was never
  finished, making comparisons difficult.
• P. yoelii has 600 additional ORFs, and the two
  have 3,310 genes in common (56).
• Is this similar enough to make a good model
  organism?

48
Malaria Treatment Options?

• Recently, a German American team used reverse
  genetics (starting with a gene sequence and
  deducing its function) to target a gene in the
  production of a knock-out strain. This strain is
  expected to be less pathogenic than wild type.
  Mice injected with this strain were protected for
  30 days.
• Even if a better drug were produced, funding and
  health care infrastructure are lacking in many
  problem areas. Very little is spent on malaria
  research.

49
Yeast
50
Yeast Genome

• The S. cerevisiae genome was sequenced in 1996.
• It took over 600 scientists in Europe, North
  America, and Japan working together to seqeunce
  the 12 Mb genome.
• Yeast has a 70.3 coding capacity, higher than
  Plasmodium but lower than all bacteria.
• There is a gene every 2 kb in yeast, one every 6
  kb in C. elegans, and one every 30 kb in humans.
  Eukaryotes have more junk DNA than prokaryotes
  and enhancers, promoters, and introns add
  substantially to the size of eukaryotic genes.

51
(No Transcript)
52
Chromosome Structure in Yeast

• The 4 smallest chromosomes in yeast have a
  unique structure. It was known from using YACs
  that chromosomes smaller that 150 kb were not
  stable in yeast. These chromosomes are
  relatively gene-poor and undergo recombination at
  high frequencies, perhaps to protect the larger
  ones from the same fate.
• Transcriptionally silent genes are found in the
  sub-telomeric regions of many chromosomes, this
  may help identify the right and left sides of a
  chromosome.

53
Yeast Chromosomes
54
Evolutionary History of Yeast

• There were a substantial number of genes found in
  duplicate copies in yeast.
• It was proposed that yeast had undergone
  duplication events at some point in time.
• Many regions of chromosomes are syntenic with
  regions on other chromosomes. Such paralogs are
  seen as evolutionary experiments where one gene
  can drift to provide new specialized functions.
• Some genes were initially thought to be extra
  copies but experiments proved their difference

55
Predictions for the Future

• The authors of the landmark 1996 yeast sequencing
  publication made the following predictions
• 1) they described plans to produce a collection
  of single, double, and even triple KO mutations
• 2) they addressed the value of making all genome
  sequences publicly available.
• 3) They felt WGS sequencing of large genomes was
  not feasible.
• 4) They looked forward to comparing yeast with
  the S. pombe as well as the human genome.

56
(No Transcript)
57
Better Annotation

• A number of yeast genomes have been sequenced
  since 1996. With these, the need to annotate
  genes based on GO, Gene Ontology, became clear.
• Improvements in computers, search algorithms, and
  the increased volume of genes in the databases
  lead to better annotation.
• The original 5,885 ORFs annotated has been
  increased to 6,672, many below the original
  cutoff of 100 codons
