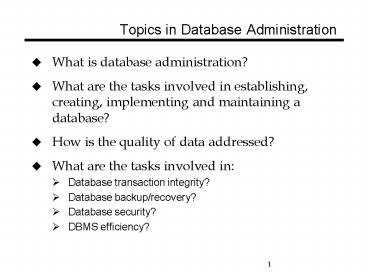

Topics in Database Administration

1
Topics in Database Administration

• What is database administration?
• What are the tasks involved in establishing,
  creating, implementing and maintaining a
  database?
• How is the quality of data addressed?
• What are the tasks involved in
• Database transaction integrity?
• Database backup/recovery?
• Database security?
• DBMS efficiency?

2
What is database administration?
3
Tasks in data administration

• Planning.
• Assist in the development of the IS architecture.
• Develop enterprise data model.
• Assist in database design for application
  development.
• Policies and procedures.
• Establish metadata.
• Assesses and controls the quality of the data.
• Establish policies towards data ownership.
• Internal marketing.
• Explain the concept of data as a shared resource.
• Resolve conflicts between organizational areas.

4
More detail Data Resource Management Tasks

• Assess organizational data strategy.
• Evaluate data level of data integration.
• Evaluate quality of data.
• Create and maintain metadata.
• Create and maintain data models.
• Identify stakeholders and ensure ongoing
  participation in data management.
• Evaluate privacy of data. Determine ethical use
  of data collection and access.
• Make effective use of data resources through
  business intelligence capabilities.

5
Tasks in database administration

• Planning.
• Guide the selection of hardware and DBMS
  software.
• Choose appropriate tool set for database
  administration, development and maintenance.
• Procedures and policies.
• Establish security policies.
• Access.
• Update.
• Establish application development policies.
• Use of views.
• Use of indexes.
• Establish backup and recovery policies.
• Enforce policies.

6
More detail Technical Management Tasks

• Install and update the DBMS.
• Create the database(s).
• Establish tablespace.
• Create users.
• Manage data dictionary.
• Populate the database(s).
• Ensure data integrity.
• Triggers and stored procedures.
• Referential integrity.
• Additional data constructs implemented through
  SQL.
• Perform data backup and recovery.
• Monitor and tune performance.

7
(No Transcript)
8
Three of the critical technical tasks of a DBA

• Database backup and recovery.
• Anticipating the event of a database failure.
• Establishing enforcing database backup
  recovery procedures.
• Database security and integrity.
• Defining security requirements based on data and
  application needs.
• Establishing and enforcing security procedures.
• Establishing and enforcing data integrity
  procedures.
• DBMS optimization.
• Tracking current response time.
• Modifying DBMS parameters to improve response
  time.

9
Database backup and recovery

• What is backup and recovery?
• Backup A method of storing data from a database
  in a format that can be used to rebuild the
  database if necessary.
• Recovery Mechanisms for restoring a database
  quickly and accurately after loss or damage.
• Why have backup and recovery?
• Human error.
• Hardware failure.
• Incorrect or invalid data.
• Program errors.
• Viruses.
• Natural catastrophes.

10
Backup and recovery are based on transactions

• A transaction is one or more database actions
  (SQL statements) that are treated as a single
  unit of work.
• If the transaction is successful, then the
  transaction is committed.
• If the transaction is not successful, then the
  transaction is rolled back or aborted.

Imagine a database with this structure
11
Accepting an order for a product
INSERT INTO order_tbl VALUES
(123,27-apr-06, 765, net30)
INSERT INTO orderline_tbl VALUES
(123,6812,10, 34.99)
UPDATE product_tbl SET qoh qoh - 10 WHERE
prod_no 6812
12
DBMSs have methods to control transactions

• Databases that support transactions provide
  specific commands for starting, committing, and
  rolling back transactions.
• Begin transaction.
• End transaction.
• Commit.
• Rollback.
• Autocommit.
• Transaction throughput The number of
  transactions processed per time interval. This
  is a measure of transaction processing
  performance.

13
Transactions have properties

• Atomicity A transaction is an indivisible unit
  of work.
• Almost all languages that interface with a DBMS
  have a way to signify the start and end of a
  transaction.
• Within the start and end are one or more SQL
  commands.
• Consistency The transaction moves a database
  from one state of consistency, through
  inconsistency to another state of consistency.
• Isolation A transaction executes in isolation
  from other transactions.
• This is also referred to as the serializability
  of transactions.
• A transaction can affect another transaction, so
  the transaction must complete as though it is
  isolated in order to be accurate.
• Durability Once a transaction is committed, its
  effects on the database are durable, or
  permanent. No subsequent actions or failures to
  the database can cause that transaction to be
  lost.

14
Transaction boundary decision

• Division of work into transactions.
• Objectives
• Minimize transaction duration.
• Ensure transaction isolation.
• Constraint enforcement of important integrity
  constraints.

15
Transaction example
16
Transaction boundary choices.

• One transaction for the entire form?
• One transaction for the main form and one
  transaction for all subform records?
• One transaction for the main form and separate
  transactions for each subform record?

17
Backup is conducted in 3 processes

• Backup A DBMS software utility provides a way
  to do a complete, full or incremental backup of
  the database in a consistent state.
• Complete entire database.
• Full all rows of specified tables.
• Incremental rows that have changed since the
  last full backup.
• Journalize A DBMS software utility provides an
  audit trail of changes to the database.
• Transaction log contains all data used to
  process changes against the database.
• Database change log contains a before-image and
  an after-image of each row modified by a database
  transaction.
• Checkpoint A DBMS software utility that
  periodically suspends all transaction processing
  and synchronizes files within the database.
• Some databases, such as Oracle, do not actually
  halt processing. They simply write checkpoint
  information to files.

18
Recovery methods

• A DBMS has a utility to recover the database.
  Usually referred to as the Recovery Manager.
• The method of recovery depends on the type of
  failure.
• Recovery Manager usually has the following
  options
• Switch Switches to a replica of the database on
  a different storage device.
• Requires that a mirror image of the database is
  stored.
• Can be expensive.
• Assumption is a storage failure, not a failure in
  transaction integrity, occurred.
• Restore/Rerun Reprocesses the transactions for
  a given time period against a correct version of
  the database.
• Assumption is that a failure in transaction
  integrity has occurred.
• Can be very time-consuming.

19
Two common methods of restore/rerun

• Backward recovery. Also called rollback
  recovery. Used to undo unwanted changes to the
  database.
• Imagine that the current database is inaccurate.
• Before-images are applied to the current database
  to return it to a prior state of consistency.
• Used to back out changes that are unwanted.
• Forward recovery. Also called rollforward
  recovery. Used to recover accurate transactions
  and apply them to the database.
• Imagine that the current database is inaccurate.
  This database must be replaced with a prior,
  consistent version of the database before forward
  recovery can begin.
• After-images are applied to a past version of the
  database. Does not require that all transactions
  are applied - just takes the most recent
  after-images.

20
Issues in database backup and recovery

• Cost.
• Media.
• Computer overhead (processor, memory, disk) to
  create journalizing files, control files,
  checkpoint files, etc.
• Personnel to supervise and tune.
• Time.
• Can result in regularly scheduled downtime.
• Can make the system slower.

21
Potential problems with shared databases

• Concurrency control is the process of managing
  concurrent operations against a database in order
  to maintain data integrity.
• Potential problems with shared databases are
• Lost Update.
• Uncommitted Dependency. Dirty Read
• Incorrect Summary.

22
Lost update
SR Seats Remaining
23
Uncommitted dependency or dirty read
24
Incorrect summary
25
Methods of concurrency control

• Scheduler. The scheduler establishes the order
  in which the operations within concurrent
  transactions are executed.
• The scheduler interleaves the execution of
  database operations to ensure serializability.
• Some schedulers have the ability to analyze
  transaction content.
• Locking Fundamental tool of concurrency
  control.
• Obtain lock before accessing an item.
• Wait if a conflicting lock is held.
• Shared lock conflicts with exclusive locks
• Exclusive lock conflicts with all other kinds of
  locks
• Concurrency control manager maintains the lock
  table

26
More about locking

• Locking. A lock guarantees exclusive use of a
  data item to a current transaction.
• Locking can be performed programmatically or left
  to the DBMS.
• Granularity of locking depends on the DBMS.
• Database level.
• Table level.
• Page level.
• Row level.
• Column level.
• Can have shared or exclusive locks.

27
Problem in locking

• Deadlock An impasse that occurs when two or
  more transactions have locked a common resource
  and each is waiting for the other to finish.

28
Database security

• Database Security Protection of the data against
  accidental or intentional loss, destruction, or
  misuse. Threats to database security include the
  list below.

• Accidental losses attributable to
• Human error.
• Software failure.
• Hardware failure.
• Theft and fraud.
• Improper data access
• Loss of privacy (personal data).
• Loss of confidentiality (corporate data).
• Loss of data integrity.
• Loss of availability.

29
DBMS security features

• Views (frequently referred to as subschemas).
• Authorization rules.
• Controls incorporated in the DBMS.
• Restrict access to specific data.
• Restrict actions that can be taken.
• User-defined procedures.
• Trigger an authorization procedure which asks
  additional identification questions.
• Written in a standard programming language or
  proprietary language.
• Encryption.
• Authentication schemes.
• Biometric devices.

30
Oracles approach to security

• Multi-user database systems, such as Oracle,
  include security features that control how a
  database is accessed and used. For example,
  security mechanisms
• Prevent unauthorized database access.
• Prevent unauthorized access to schema objects.
• Control system resource usage (such as CPU time
  or disk usage).
• Audit user actions.
• Associated with each database user is a schema.
• A schema is a logical collection of database
  objects (tables, views, sequences, synonyms,
  indexes, clusters, procedures, functions,
  packages, and database links).
• By default, each database user creates and has
  access to all objects in the corresponding schema.

31
Oracles security mechanisms

• The Oracle server provides discretionary access
  control, which is a means of restricting access
  to information based on privileges.
• The appropriate privilege must be assigned to a
  user in order for that user to access a schema
  object.
• Appropriately privileged users can grant other
  users privileges at their discretion for this
  reason, this type of security is called
  "discretionary".

32
SQL statements used for security
33
SQL Statements Used for Data Integrity
34
DBMS query optimization

• DBMSs are differentiated by their query
  optimizers.
• A query optimizer is a component of a DBMS.
• You do not have the choice of how queries are
  implemented on the physical database, the query
  optimizer assumes this responsibility.
• You can sometimes help and thus possibly
  improve the optimization process.

35
Query translation process
36
Query optimizer methods

• Rule based.
• Looks at syntax.
• Parses query and executes in the order written
  according to the rules pre-established by the
  person who wrote the query optimizer.
• Cost based.
• Looks at syntax.
• Looks at statistical data about the database.
• Parses query and executes based on the written
  and the information about the current and
  historical data of the database.
• Choose.
• Uses the rule based method for tables which have
  not been used/analyzed in the past.
• Uses the cost based method for tables which have
  been previously analyzed.

37
Helping the query optimizer

• Know which type of optimizer is used by the DBMS.
• Order the query in a way that eliminates more
  rows with the first where condition.
• Provide comments or suggestions.
• Use joins instead of nested or correlated
  sub-queries.
• Use single table conditions instead of joins.
• Use queries that perform grouping with aggregate
  calculations only when really necessary.
• Avoid using the ltgt or not equal condition.

38
Becoming a DBA

• Experience.
• Application programming with a database.
• Some DBA tasks.
• Systems programming with a database.
• Education.
• Training classes with a specific DBMS.
• For example, Oracle offers a ten-class sequence
  for DBAs.
• Masters degree?
• Certification.
• Specific to DBMS.
• Offered by DBMS vendor.
• Formal programs offered for Oracle and SQL
  Server informal programs for other DBMS types.
