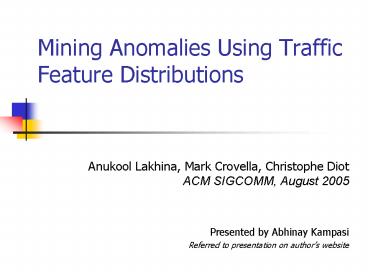

Mining Anomalies Using Traffic Feature Distributions

1
Mining Anomalies Using Traffic Feature
Distributions

• Anukool Lakhina, Mark Crovella, Christophe Diot
• ACM SIGCOMM, August 2005
• Presented by Abhinay Kampasi
• Referred to presentation on authors website

2
Motivation for Anomaly Detection

• Is my customer being attacked?
• Is someone probing my network?
• Are there worms spreading?
• A sudden traffic surge?
• An equipment outage?
• Something never seen before?

Anomalies present in network trafficare buried
like needles in a haystack!
3
Previous Work

• Volume based anomaly detection
• Largely focused on
• Point solutions
• not a general approach
• Rule-based classification
• not unsupervised
• Data from single links
• not network-wide

A general, unsupervised method for reliably
detecting and classifying network anomalies is
needed
4
Feature Distributions

• Anomalies can be detected and distinguished by
  inspecting traffic features SrcIP, SrcPort,
  DstIP, DstPort

5
Feature Distribution Changes induced by Port Scan
Anomaly
6
Entropy

• Metric that captures degree of dispersal or
  concentration
• where symbol i occurs ni times in sample
• S is total of observations
• Value lies between 0 and log2N
• 0 when distribution maximally concentrated
• All observations same
• log2N when distribution maximally disperseds
• All observations distinct
• Entropy value is normalized

7
Applying Entropy to Port Scan Data
8
Methodology

• Detect
• Use multiway subspace method
• Augments volume metrics, highly sensitive
• Identify anomalies on multiple features and flows
• Classify
• Use clustering on anomaly features
• Can do unsupervised classification

9
Network-Wide Traffic Data Collected

• Collected 3 weeks of sampled NetFlow data at 5
  minute bins from two backbone networks
• Compute entropy on packet histograms for 4
  traffic features SrcIP, SrcPort, DstIP, DstPort
• Two sources of bias sampling and anonymization
  of IP addresses

10
Multiway Subspace Method

• Based on subspace method and principal component
  analysis
• Every point in subspace has normal and residual
  components
• H(t,p,k) denotes the entropy value at time t for
  flow p, of traffic feature k

• Unwrap the multiway matrix into one matrix
• Apply subspace method on merged matrix
• Detect anomalies by monitoring size of
  residual vector for unusually high values

11
How does entropy compare with volume-based
detection?

• Does entropy allow detection of a larger set of
  anomalies?
• Are anomalies detected by entropy fundamentally
  different from volume-based methods?
• How precise is the entropy-based detection?

12
Comparison
Points that lie to the right of the vertical line
are volume-detected anomalies and points that lie
above the horizontal line are detected in entropy.
13
Manual Inspection
14
Detection Rate by Injecting Real Anomalies

• Evaluation Methodology
• Superimpose known anomaly traces into OD flows
• Test sensitivity at varying anomaly intensities,
  by thinning trace
• Results are average over a sequence of experiments

15
Classifying Anomalies by Clustering

• Use unsupervised classification
• Each anomaly is a point in 4-D space
• (SrcIP), (SrcPort), (DstIP),
  (DstPort)
• Use Hierarchical Agglomerative Algorithm for
  determining clusters
• Minimizes intra-cluster variation and maximizes
  intra-cluster variation

16
Clustering Known Anomalies (2-D view)
Legend Code Red Scanning Single source DOS
attack Multi source DOS attack
17
3-D view of Abilene anomaly clusters

• Used 2 different clustering algorithms
• Results consistent
• Heuristics identify about 10 clusters in dataset

18
Anomaly Clusters in Abilene data
19
Summary

• Feature distributions as summarized by entropy
  are promising for general anomaly diagnosis
• Network-Wide Detection
• Entropy significantly augments volume metrics
• Highly sensitive Detection rates of 90
  possible, even when anomaly is 1 of background
  traffic
• Anomaly Classification
• Clusters are meaningful, and reveal new anomalies

20
Points to Ponder

• The paper only discusses anomaly detection on
  offline data. Can it be enhanced for online
  anomaly detection?
• We still need volume based detection because
  feature distribution does not identify all
  anomalies.
• Can other fields in packet header be used for
  anomaly detection?

21
Profiling Internet Backbone Traffic Behavior
Models and Applications

• Kuai Xu, Zhi-LI Zhang, Supratik BhattacharyyaACM
  SIGCOMM, August 2005
• Presented by Abhinay Kampasi
• Referred to presentation on authors website

22
Why profile traffic?

• Changes in Internet traffic dynamics
• increase in unwanted traffic
• emergence of disruptive applications
• new services on traditional ports
• traditional service on non-standard ports
• Existing tools
• rely on ports for identifying or classifying
  traffic
• report volume-based heavy hitters
• look for specific or known patterns
• Need better techniques to discover behavior
  patterns
• help network operators secure and manage networks

23
Communication patterns

• Underlying communication patterns of end hosts
• Who are they talking to? How are ports used?
• How many packets or bytes transferred?
• Can communication patterns reveal interesting
  behavior?

24
Methodology

• Data pre-processing
• aggregate packet streams into 5-tuple flows
• group flows into clusters
• Extract significant clusters
• data reduction step using entropy
• Classify cluster behavior based on
  similarity/dissimilarity of communication
  patterns
• characterize using information theory
• clusters classified into behavior classes
• Interpret behavior classes
• structural modeling for dominant activities

25
Data Preprocessing

• Aggregate packet streams into 5-tuple flows
• Group flows associated with same end hosts/ports
  into clusters

26
Extract Significant Clusters

• Focus on significant clusters
• Sufficiently large number of flows
• Represent behavior of significant interest
• Adaptive thresholding using entropy
• A cluster is significant if standing outfrom
  the rest
• Use entropy to quantify whether the rest looks
  random

27
Entropy based adaptive thresholding
28
Sample Results
Though the total number of distinct values along
a given dimension may not fluctuate very much,
the number of significant feature values
(clusters) may vary dramatically, due to changes
in the underlying feature value distributions.
29
Relative Uncertainty

• Entropy H(X) -Sp(xi)logp(xi)
• Maximum Entropy Hmax(X) log min(m,N)
• Relative Uncertainty of variable XRU(X) H(X) /
  Hmax(X), RU ? 0, 1
• RU(X) 0 X is deterministic
• RU(X) 1 X is randomly distributed

30
Behavior Characterization
31
Behavior Classes
Summarize three feature distributions into 27
classes0, 0, 0 2, 2, 2, for convenience
BC0to BC26
32
Summary of behavior classes

• Behavior classes classify clusters based on
  communication patterns
• Behavior classes have distinct temporal
  properties
• Popularity
• Average Size
• Membership Volatility
• Clusters within the same behavior class have
  similar structural models
• Clusters have stable behavior over time

33
Dominant State Analysis

• Each cluster has hundreds or thousands of flows.
• An exhaustive approach is not practical
• Need a compact summary
• Dominant state analysis
• Identify the dependency among the free dimensions
  of a cluster
• Dominant states of a cluster are subsets of
  values that approximate the original data

34
General procedure for Dominant State Analysis
35
Applications of Profiles
36
Anomalous Behaviors

• Clusters in rare behavior classes
• Identified a web server under DDoS attack
• Behavioral changes for clusters
• Yahoo web server example
• Unusual profiles for popular service ports

37
Conclusion

• Developed a systematic methodology to
  automatically discover and interpret
  communication patterns
• Used information-theoretical techniques to build
  behavior models of end hosts and applications
• Applied dominant state analysis to explain
  traffic behavior
• Identified typical behavior profiles as well as
  rare and deviant behaviors

38
Future Work

• Correlating behavior profiles across multiple
  links
• Validate behavior profiles using additional
  features, e.g., packet payload
• Integrate traffic profiling framework with a
  real-time monitoring system

39
Thank You ?
Questions / Comments?
