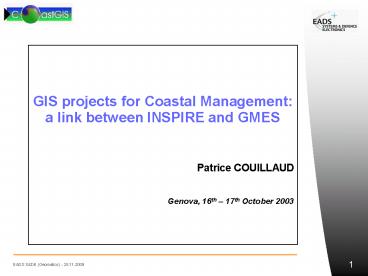

GIS projects for Coastal Management:

1

• GIS projects for Coastal Management
• a link between INSPIRE and GMES
• Patrice COUILLAUD
• Genova, 16th 17th October 2003

2
Agenda
Agenda

• Framework
• Coastal European database EUROSION
• User application in coastal environment
  BRIDGE-IT project
• GMES/GSE services in coastal environment
  COASTWATCH project
• Conclusion

3
Framework
1. Framework
4
Framework

• Institutional framework
• International conventions for environment induce
  a need for information and integrated
  applications compliant with the users needs (ex
  ICZM, Water Framework Directive)
• Good policy relies on quality information
• Need for harmonisation of information to
  facilitate its use and dissemination among
  European users.
• Need to support the availability of spatial
  information.
• Need to provide users with services to identify,
  access, consult and use spatial information
• Answers
• INSPIRE creation of a European Spatial Data
  Infrastructure
• GMES/GSE creation of services compliant with the
  user needs

5
(No Transcript)
6
Framework GMES/GSE Coastwatch services
Sustainability of the coast
Thematic services in response to policy
requirements
Services components supplying wide range of
information
7
Eurosion project
2. Databases Eurosion example
8
Coastwatch initiative and GMES

• One of the Thematic projects supported by the
  European Commission, DG Env  Environmental
  stress in Europe
• Start February 2002
• End May 2004
• Goals
• Provide a European Level Database of the entire
  coast towards coastal erosion at scale 1 100 000
• Compile and analysis lessons learnt from past and
  ongoing shoreline management practices at the
  local level
• Formulate a set of recommendations for designing
  shoreline management policies and enhance coastal
  information management at all levels of
  administration

9
Eurosion introduction

• Adoption of INSPIRE recommendations for standards
• Metadata documented according to ISO 19115
  standard and ISO 19000 series
• Data harmonised according to EUROSTAT/GISCO rules
  and naming convention
• Interoperable with others existing metadata
  standards (Dublin Core, GELOS, ETC/CDS).

10
(No Transcript)
11
(No Transcript)
12
EUROSION output Indicator on Presence of
erosion presence of coastal defence works
13
EUROSION OUTPUT Indicator on Presence of
erosion absence of coastal defense works
14
User application
2. User application example of IMR application
of BRIDGE-IT project
15
BRIDGE-IT introduction

• Supported by the European Commission, within the
  5th Framework Programme, DG Information Society
• Start April 2002
• End April 2004
• Goals
• Design and demonstrate innovative and generic
  technology aimed at developing use of geographic
  information in various application fields, in
  particular to environmental information management

16
BRIDGE-IT Introduction

• Integrated tool for natural resources management
  (fish stock) in response to regional concerns
• Increasing need from coastal user communitity for
  for an integrated tool to access environmental
  issues
• Data dissemination
• Use of complementary sources of information
  in-situ data, EO and models
• Adoption of INSPIRE recommendations in terms of
  service implementation
• Implementation on Internet http protocol
• OGC standards for the components (Web Map Server
  (WMS), Web Coverage Server (WCS) and Web Feature
  Feature (WFS))

17
User-Application BRIDGE-IT
18
User-Application BRIDGE-IT
Measure location
Temperature profil according to batymetry
19
User-Application BRIDGE-IT
Temperature profil per year and per transect
20
User-Application IMR environment application
Two-dimensional analysis of temperature time and
bathymetry
21
GMES/GSE services

• 3. GMES/GSE Services
• COASTWATCH project

22
Coastwatch initiative and GMES

• One of the 10 GSE projects started in 2003
• Goal provide a
• global information servicefor European coastal
  environment
• A reference access point
• To deliver certified information products
  incorporating EO data
• As support to environmental policies (ICZM, WFD,
  others)
• From regional to European level

23
Coastwatch service components

• 5 service components
• Coastal indicator service that deliver data for
  environmental stress indicators in European
  coastal areas
• Coastal Land Cover and Land Use Change Mapping
  service that provides maps and indicators for
  monitoring land cover changes
• Coastal Flood Risk Mapping service that supports
  regular monitoring of sea defense based on
  coastal flood risk assessment
• Water Quality Monitoring service that delivers
  near real time and historical maps information
  such as water clarity, sea surface temperature
• Wave Exposure Mapping service that delivers near
  real time and statistical information about waves
  for monitoring state and dynamics of the sea

24
GMES/GSE Institutional framework and commercial
needs
High levelinformation
Fisheries Urban management
ICZM Recommendation Water FrameworkDirective
and Marine conventions Others
policy driveninformation needs
commercial needs
ServiceC
ServiceB
ServiceA
Low levelinformation
EO sources
non-EO sources
25
Environmental stress indicators for coastal areas
Degree of urbanisation
Source ETC/TE
26
Land cover change in coastal areas
Source JRC / GIM
27
Coastal erosion sea defence assessment
monitoring Flood risk map
Source HR Wallingford
28
Atlantic Sea monitoring August 16-22,
2003Support to National Fishery Agency (IPIMAR)
  Sea Surface Temperature (C) Chl_a
(log mg/m3) Chl_a (log mg/m3)

29
Mediterranean Sea monitoring July 4,
2003Upwelling monitoring along Spanish and
Morocco coastlines
30
Mediterranean Sea monitoring August,
2003 Chlorophyll map
31
Wave exposure monitoring along Southern England
coastlines - 2003
32
Marine information service for coastal areas
Sea state alert
Source SOS
33
Tidally induced coastal water mixing around
Garonne estuary. Integrated product Landsat land
cover / Meris-derived ocean colour product
34
Land take by built up in coastal areas
35
Built-up in the distance to the coast
36
Dominant landscape type
EEA source
37
Urban Sprawl
Urban expansion
38
Conclusions

• 4. Conclusion

39
INSPIRE framework a reference Architecture and
standards
BRIDGE-IT IMR application
BRIDGE-IT IMR application
COASTWATCH
EUROSION
40
GMES/GSE framework COASTWATCH e-services
EUROSION
COASTWATCH services for indicators production
41
THANK YOU FOR YOUR ATTENTION Contacts Team
Leader Christophe De Dreuille EUROSION
patrice.couillaud_at_sysde.eads.net BRIDGE-IT
laurent.raynal_at_sysde.eads.net COASTWATCH
patrick.houdry_at_sysde.eads.net
