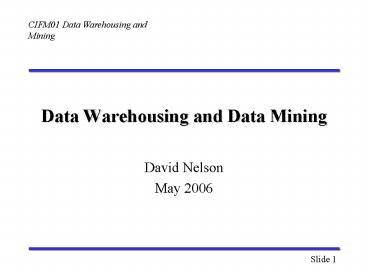

Data Warehousing and Data Mining

1
Data Warehousing and Data Mining

• David Nelson
• May 2006

2
Contents

• Data Warehousing
• Benefits
• Architecture
• Data Warehouse Design
• Data Analysis Techniques
• OLAP
• Data Mining
• Temporal Databases
• Further Reading

3
Data Warehousing

• OLTP (online transaction processing) systems
• range in size from megabytes to terabytes
• high transaction throughput
• Decision makers require access to all data
• Historical and current
• 'A data warehouse is a subject-oriented,
  integrated, time-variant and non-volatile
  collection of data in support of managements
  decision-making process' (Inmon 1993)

4
Benefits

• Potential high returns on investment
• 90 of companies in 1996 reported return of
  investment (over 3 years) of gt 40
• Competitive advantage
• Data can reveal previously unknown, unavailable
  and untapped information
• Increased productivity of corporate
  decision-makers
• Integration allows more substantive, accurate and
  consistent analysis

5
Comparison
Source Connolly and Begg p1153
6
Typical Architecture
Mainframe operational n/w,h/w data
Warehouse mgr
Reporting query, app development,EIS tools
Meta-data
Highly summarized data
Departmental RDBMS data
Load mgr
Query manager
OLAP tools
Lightly summarized data
Private data
DBMS
Detailed data
Warehouse mgr
Data-mining tools
External data
Archive/backup
Source Connolly and Begg p1157
7
Information Flows
Operational data source 1
Warehouse Mgr
Meta-flow
Reporting query, app development,EIS tools
Meta- data
Highly summ. data
Inflow
Outflow
Load mgr
Query manager
OLAP tools
Lightly summ.
Upflow
DBMS
Detailed data
Warehouse mgr
Data-mining tools
Downflow
Operational data source n
Archive/backup
Source Connolly and Begg p1162
8
Information Flow Processes

• Five primary information flows
• Inflow - extraction, cleansing and loading of
  data from source systems into warehouse
• Upflow - adding value to data in warehouse
  through summarizing, packaging and distributing
  data
• Downflow - archiving and backing up data in
  warehouse
• Outflow - making data available to end users
• Metaflow - managing the metadata

9
Problems of Data Warehousing

• Underestimation of resources for data loading
• Hidden problems with source systems
• Required data not captured
• Increased end-user demands
• Data homogenization
• High demand for resources
• Data ownership
• High maintenance
• Long duration projects
• Complexity of integration

10
Data Warehouse Design

• Data must be designed to allow ad-hoc queries to
  be answered with acceptable performance
  constraints
• Queries usually require access to factual data
  generated by business transactions
• e.g. find the average number of properties rented
  out with a monthly rent greater than 700 at each
  branch office over the last six months
• Uses Dimensionality Modelling

11
E-R Model Example
12
Dimensionality Modelling

• Similar to E-R modelling but with constraints
• composed of one fact table with a composite
  primary key
• dimension tables have a simple primary key which
  corresponds exactly to one foreign key in the
  fact table
• uses surrogate keys based on integer values
• Can efficiently and easily support ad-hoc
  end-user queries

13
Star Schemas

• The most common dimensional model
• A fact table surrounded by dimension tables
• Fact tables
• contains FK for each dimension table
• large relative to dimension tables
• read-only
• Dimension tables
• reference data
• query performance speeded up by denormalising
  into a single dimension table

14
Star Schema Example
15
Other Schemas

• Snowflake schemas
• variant of star schema
• each dimension can have its own dimensions
• Starflake schemas
• hybrid structure
• contains mixture of (denormalised) star and
  (normalised) snowflake schemas

16
Data Analysis Techniques

• Various end-user tools are available to interact
  with the data warehouse for retrieving
  information
• Two of the most popular methods are
• OLAP
• Data mining tools

17
OLAP

• Online Analytical Processing
• dynamic synthesis, analysis and consolidation of
  large volumes of multi-dimensional data
• normally implemented using specialized
  multi-dimensional DBMS
• a method of visualising and manipulating data
  with many inter-relationships
• Support common analytical operations such as
• consolidation
• drill-down
• slicing and dicing

18
Codds OLAP Rules

• 1. Multi-dimensional conceptual view
• 2. Transparency
• 3. Accessibility
• 4. Consistent reporting performance
• 5. Client-server architecture
• 6. Generic dimensionality
• 7. Dynamic sparse matrix handling
• 8. Multi-user support
• 9. Unrestricted cross-dimensional operations
• 10. Intuitive data manipulation
• 11. Flexible reporting
• 12. Unlimited dimensions and aggregation levels

19
OLAP Tools

• Categorised according to architecture of
  underlying database
• Multi-dimensional OLAP
• data typically aggregated and stored according to
  predicted usage
• use array technology
• Relational OLAP
• use of relational meta-data layer with enhanced
  SQL
• Managed Query Environment
• deliver data direct from DBMS or MOLAP server to
  desktop in form of a datacube

20
MOLAP
RDB Server
MOLAP server
Request
Result
Load
Database/Application Logic Layer
Presentation Layer
21
ROLAP
ROLAP server
Request
SQL
RDB Server
Result
Result
Database Layer
Presentation Layer
Application Logic Layer
22
MQE
End-user tools
RDB Server
SQL
Result
MOLAP server
Request
Load
Result
23
Data Mining

• The process of extracting valid, previously
  unknown, comprehensible and actionable
  information from large databases and using it to
  make crucial business decisions (Simoudis, 1996)
• focus is to reveal information which is hidden or
  unexpected
• patterns and relationships are identified by
  examining the underlying rules and features of
  the data
• work from data up
• require large volumes of data

24
Example Data Mining Applications

• Retail/Marketing
• Identifying buying patterns of customers
• Finding associations among customer demographic
  characteristics
• Predicting response to mailing campaigns
• Market basket analysis

25
Example Data Mining Applications

• Banking
• Detecting patterns of fraudulent credit card use
• Identifying loyal customers
• Predicting customers likely to change their
  credit card affiliation
• Determining credit card spending by customer
  groups

26
Data Mining Techniques

• Four main techniques
• predictive modelling
• database segmentation
• link analysis
• deviation direction

27
Data Mining Techniques

• Predictive Modelling
• using observations to form a model of the
  important characteristics of some phenomenon
• Techniques
• Classification
• Value Prediction

28
Classification Example Tree Induction
Customer renting property gt 2 years
No
Yes
Customer age gt 25 years?
Rent property
No
Yes
Buy property
Rent property
29
Data Mining Techniques

• Database Segmentation
• to partition a database into an unknown number of
  segments (or clusters) of records which share a
  number of properties
• Techniques
• Demographic clustering
• Neural clustering

30
Database Segmentation Scatterplot Example
31
Data Mining Techniques

• Link Analysis
• establish associations between individual records
  (or sets of records) in a database
• e.g. when a customer rents property for more
  than two years and is more than 25 years old,
  then in 40 of cases, the customer will buy the
  property
• Techniques
• Association discovery
• Sequential pattern discovery
• Similar time sequence discovery

32
Data Mining Techniques

• Deviation Detection
• identify outliers, something which deviates
  from some known expectation or norm
• Statistics
• Visualisation

33
Deviation Detection Visualisation Example
34
Mining and Warehousing

• Data mining needs single, separate, clean,
  integrated, self-consistent data source
• Data warehouse well equipped
• populated with clean, consistent data
• contains multiple sources
• utilises query capabilities
• capability to go back to data source

35
Temporal Databases

• Normal databases contain current data only
• Updates occur as propositions become untrue
• Database systems, especially when supporting data
  warehouses, need to include features for handling
  temporal data
• Temporal databases
• Contain historical data (can include future data)
• Rarely updated
• SQL-92 contains some support for dates, times,
  intervals and periods
• TSQL temporal SQL
• SQL2003 contains extended support for time
  periods

36
Temporal Database Types

• Two common types of temporal database
• Valid Time
• Time that the event occurred
• Transaction Time
• Time that the event was stored in the database
• Bi-temporal
• Contains both Valid Time and Transaction Time

37
Temporal Queries

• Operations
• Temporal Selection
• Temporal Projection
• Temporal Join
• Temporal Union
• Temporal Intersect
• Predicates
• Precedes
• Overlaps
• Contains

38
Oracle Temporal Features

• Oracle supports the following data types
• TIMESTAMP
• TIMESTAMP WITH LOCAL TIMEZONE
• INTERVAL YEAR TO MONTH
• INTERVAL DAY TO SECOND
• Simple examples are given in the example sheet on
  the module web page

39
Summary

• Data warehouses support data (including
  historical data) for decision support analysis
• OLAP and data mining are tools which can be used
  with data warehouses
• Databases have added extensions such as temporal
  SQL and OLAP tools which enable databases to
  better support data warehousing applications

40
Further Reading

• Connolly and Begg, chapters 31 to 34.
• W H Inmon, Building the Data Warehouse, New York,
  Wiley and Sons, 1993.
• Benyon-Davies P, Database Systems (2nd ed),
  Macmillan Press, 2000, ch 34, 35 36.
