Title: Fitting the PARAFAC model


1

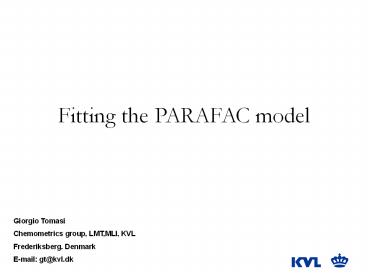

Fitting the PARAFAC model

Giorgio Tomasi Chemometrics group, LMT,MLI,
KVL Frederiksberg. Denmark E-mail gt_at_kvl.dk
2
PARAFAC model
  • PARAFAC (PARallel FACtor analysis)
  • Fitting an n-linear model to an n-way array.
  • For a three way array
  • The associated loss function is
  • Where

3
The algorithms
  • Direct methods
  • DTLD/GRAM (Direct TriLinear Decomposition /
    Generalised Rank Annihilation Method)
  • Alternating methods
  • ALS (Alternating Least Squares)
  • ASD (Alternating Slice-wise Diagonalisation)
  • SWATLD (Self-Weighted Alternating Trilinear
    Decomposition)
  • Derivative based
  • Levenberg Marquadt
  • PMF3 (Positive Matrix Factorisation for 3 way
    arrays)

4
Direct method
  • DTLD-GRAM (Sanchez Kowalsky 1986)
  • Based on a generalised Eigenvalue Problem
  • Originally applicable only to arrays having only
    two slabs in one of the modes (GRAM)
  • Generalised by means of a Tucker compression
    (DTLD)
  • Advantage quick
  • Shortcomings
  • The algorithm does not provide the solution in
    terms of least squares
  • Sensitivity to noise

5
Alternating methods - 1
  • The loss function is alternatively minimised
    with respect to one of the set of parameters
    involved
  • PARAFAC ALS (Harshman 1970, Carrol Chang
    1970)
  • Well established algorithm
  • Several improvements have been added
    (compression, line search, variable separation)
  • The solution is found in the least squares sense
  • Shortcomings
  • Slow convergence rate
  • Sensitivity to over- (and under-) factoring

6
Alternating methods - 2
  • SWATLD (Chen ZP et al, 2000)
  • Alternates in the minimisation of three
    different loss functions (one each for A, B and
    C)
  • The solution for each step is found as
  • Not expressed in terms of least squares.
  • General property and mechanisms have not been
    studied, yet.

7
Alternating methods - 3
  • ASD (Jiang JH et al., 2000)
  • Based on a modified loss function employing five
    sets of parameters for a trilinear model
  • The solution is not expressed in terms of least
    squares
  • is minimised and not the residuals
  • It includes compression based on SVD
  • Unknown properties

8
Derivative-based methods - 1
  • Based on the linearisation of the loss function
    with respect to the parameters of the model.
  • All the parameters are unified i a single vector
  • Vectorisation of the 3-way array

9
Derivative-based methods - 2
  • Levenberg-Marquadt (Paatero 1997, Bijlsma 1998)
  • The update for vector p is found as a solution to
    the system
  • The parameter l makes the right hand side
    positive definite and non-singular.
  • The solution is found in the least squares sense
    provided that l becomes small enough

10
Derivative-based methods - 3
11
Derivative-based methods - 4
  • PMF3 (Paatero, 1997)
  • The loss function includes a penalty term
  • The system of normal equations is modified
    accordingly
  • A non-linear update is calculated and used if
    provides a better solution. The right hand side
    is modified into
  • Line search is applied whenever the algorithm
    diverges

12
Compression
  • A Tucker3 model with
    components is fitted
  • A PARAFAC model is fitted on the Tucker3s core
  • PARAFAC is expanded to the original dimensions
    by means of the Tucker3s loadings
  • The expanded matrices provide the starting values
    for more expensive computations on the original
    space (here always by means of PARAFAC-ALS
  • As to be able to compare the its effect on the
    computational expenses ALS, LM and PMF3
    algorithms were employed both with and without
    compression

13
PARAFAC indeterminacies
  • Permutational indeterminacy (trivial)
  • Scaling indeterminacy
  • The two models are equivalent so long as
  • The consequence is the rank deficiency of J

14
Tests
  • Montecarlo simulations
  • 720 data sets of dimension 20 x 20 x 20
  • Four features were varied
  • Rank (3 and 5)
  • Homoscedastic and heteroscedastic noise (3 levels
    each)
  • Collinearity between the components (cosine .5
    or .9)
  • On each data set were fitted to models F and F1
  • Two real data sets fluorescence spectra
  • Data set 1 6 replicates, 15 x 66 x 15, rank 4
  • Data set 2 3 replicates, 22 x 87 x 13, rank 4
  • Measured on solution of four compounds which
    concentrations were then calculated based on the
    PARAFAC model

15
Initialisation and convergence
  • All the algorithms but DTLD were initialised
    using matrices of random numbers
  • 10 sets of loading matrices were generated with
    random numbers
  • On each of them were run10 iterations with
    PARAFAC-ALS
  • The best fitting has been used has initial value
  • Convergence criteria
  • Relative decrease in fit
  • Relative change of the parameters (only LM and
    PMF3)
  • Gradient norm (only LM and PMF3)
  • Consecutive almost singular left hand side 5
  • Maximum number of iteration 10000/500
    respectively for alternating algorithms and
    derivative based

16
Evaluation parameters
17
(No Transcript)
18
Quality of the solution
  • ALS, both with compression and without is very
    much affected by overfactoring
  • SWATLD is very resistant to it an has a better
    chance to retrieve the correct factors
  • ASD seems rather nice but the components tend to
    be extremely noisy

19
Time consumption
  • dGN and PMF3 are the most expensive in terms of
    computational time
  • The filling og the Jacobian takes up to 50 of
    the time
  • Compression significantly helps
  • Need for more efficient routines to calculate
    and

124
235
20
Iterations
  • Compressed methods require more iterations for
    fitting and many less for refining
  • Compressed methods are more affected by
    over-factoring for as n. of iterations
  • Derivative-based methods are more efficient but
    more expensive.
  • Compression allows similar cost per iteration for
    derivative based

21
RMSEP for 1st data set, 4 factors
22
RMSEP for 1st data set, 5 factors
23
RMSEP for 2nd data set
24
Conclusions
  • PARAFAC-ALS is more sensitive than the other
    methods to over-factoring
  • SWATLD appears as the most efficient method when
    it comes to retrieval of the underlying factors
    (on simulated data). Conversely it is not as
    efficient on real data and hardly ever provides
    the least squares solution. It is likely a good
    method for initialisation.
  • Derivative based methods require compression in
    order to be feasible for large scale problems
  • Compression does not seem to affect the recovery
    capability of the algorithms it is combined with.

25
Future aspects
  • PARAFAC growing number of applications in
    spectrometry implies dealing with larger data
    sets
  • Need for more efficient routines for the
    derivative based methods
  • Development of more refined methods exploiting
    the sparsity of the Jacobian and the
    multilinearity. (f.i use of 2nd derivatives,
    variable separation,)
  • Alternative algorithms providing the least
    squares solution (e.g. simulated annealing)
