Title: OSPF Offloading: The HELLO Protocol


1

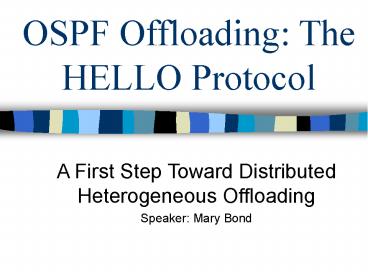

OSPF Offloading The HELLO Protocol
  • A First Step Toward Distributed Heterogeneous
    Offloading
  • Speaker Mary Bond

2
Introduction The Challenge
  • Traditional IP router architecture incorporates
    single centralized control processor
  • Scalability issues are real
  • Large amount of I/O bandwidth required across
    backplane

3
The Future of Network Forwarding Devices
4
The Protocol Offload Solution Long Term Goal
  • Distribute functionality by protocol offloading
    to forwarding plane blades
  • Design a generalized framework for offloading
    protocols
  • The Approach
  • Examine offloading possibilities of many routing
    protocols
  • Use collective results to design offloading
    framework

5
OSPF A Brief Overview
  • Link state vector algorithm
  • Distribute data by flooding
  • Amount of data passed reduced via area grouping
  • External data advertised, separate from link
    state data

6
OSPF A Brief Overview
  • HELLO packets used to acquire neighbors
  • HELLO protocol elects designated router
  • Link state ads (LSAs) reflect adjacencies
  • LSAs flooded reliably
  • Link state database is collection of LSAs from
    every router in area

7
OSPF Offloading The HELLO Protocol
  • Two primary OSPF data structures
  • Interfaces
  • Neighbors
  • Interface algorithms
  • HELLO
  • Designated Router Election
  • Neighbor algorithms
  • Database Distribution
  • Link State Updates
  • Routing Table Calculation

8
Interface and NeighborFinite State Machines
9
Communication Between GOSPF and OOSPF
  • Synchronizing Data Structure Fields
  • Starting/Stopping HELLO Timers
  • Instigating FSM Transitions
  • Triggering Link State Advertisements
  • Updating Designated Router (or Backup)
  • Instigating sending of HELLO Packets

10
GOSPF and OOSPF Proxies
  • GOSPF and OOSPF communicate via proxies
  • Remote procedure calls are transparent
  • TCP connection

11
The RPC Class
  • Provides general framework for communication
    between proxies
  • Child classes inherit from RPC class, one for
    each remote procedure call
  • Child classes correspond to specific functions
    (called remotely) between GOSPF and OOSPF

12
Offloaded OSPF, IXP Architecture
13
Conclusions
  • Future control plane processing presents a
    bottleneck issue
  • Protocol offloading is a possible solution
  • This project was a first step toward studying the
    offloading of control plane routing protocols.

14
