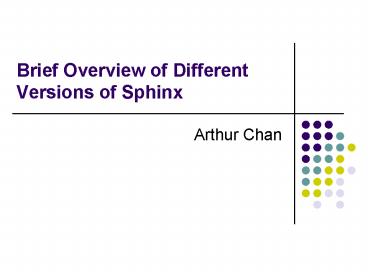

Brief Overview of Different Versions of Sphinx

1
Brief Overview of Different Versions of Sphinx

• Arthur Chan

2
Introduction

• Software aspect of the recognizer is very
  important
• Research always require correct use of the
  software.
• Sphinx II III IV SphinxTrain
• 100 k lines of code
• Each of them are fairly complex

3
This presentation (30 pages)

• Introduction (3 pages)
• History of Sphinx (13 pages)
• Sphinx I (2 pages)
• Sphinx II (2 pages)
• Sphinx III (3 pages)
• SphinxTrain (3 pages)
• Sphinx IV (3 pages)
• How do I get the source code? (4 pages)
• Versioning
• Three rules of not getting lost in different
  recognizers
• Where can I get official information? (2 pages)
• Outlook in each recognizer. (3 pages)
• Conclusion

4
Brief history of Sphinx

• Largely adapted from
• Ritas The Sphinx Speech Recognition Systems
• www.cs.cmu.edu/rsingh/
• Kevin et als Speech Recognition Past, Present
  and Future
• www.cs.cmu.edu/msiegler/ASR/futureofcmu-final.htm
  l

5
Before Sphinx

• Dragon
• One of the first use of HMM in speech recognition
• One of the first use of purely statistically
  model in speech
• Express the knowledge using HMM network
• Harpy
• One of the first use of beam search
• Use phoneme to represent words.

6
Sphinx I

• Before Sphinx ...
• From ATTs literature, the concept of
  speaker-independence was proposed in 1979
• In 1979-1987, most systems are either,
• Speaker dependent
• Speaker independent but in a very small domain
  (lt100 words)
• Sphinx I is therefore outstanding
• Accuracy is 90 on Resource Management

7
Sphinx I (1987)

• By Kai-Fu Lee and Roberto Bisiani
• Key developer included Hsiao-wuen Hon, Fil Alleva
• Written in C.
• Continuous speech recognizer using discrete HMM
  with 3 codebooks of size 256.
• Using simple word-pair grammar
• Generalize triphones
• Real-time on Sun3 or Dec 3000
• Where is the source code? Good antique!

8
Sphinx II (1992)

• By Xuedong Huang
• Hardwired to 5-state Bakis topology
• 3-gram language models
• Decision-tree tying of HMM (by Mei-Yuh Huang)
• 90 in WSJ task (0 or 1?)

9
Fast Beam Search v. X

• FBS-6 flat lexicon decoder
• FBS-7 lexicon tree-based.
• FBS-8 decoder (written by Ravi Mosur, see thesis
  in 96)
• Support multiple types of beam pruning.
• Lexical tree
• Tricks in GMM Computation
• Machine optimization loop unrolling
• Predictive Codebook computation
• Phoneme lookahead
• Best path search .

10
Other facts about Sphinx II

• We license it at the beginning (seem to back till
  days like 95)
• In 2000, it starts to be open-sourced in
  Sourceforge under Berkeleys style license
• You could incorporate Sphinxs source code
• You dont need to open your source code. (No
  recursive legal binding)
• Similar to LGPL
• In 2001, a major alpha release by Kevin that
  ensures portability in several platforms.

11
Sphinx III flat lexicon decoder
(s3,s3flat,s3slow)

• Sphinx III (by Ravi Mosur)
• Flat Lexicon
• Support both CHMM and SCHMM
• Poor-man trigram
• Use only the most likely first word, this avoid
  D2 expansion of the word lattice.
• Arbitrary topology
• Very accurate, used in evaluation of BN and
  others.
• Derivative from the search include
• N-best generator
• Aligner
• Phone recognizer

12
Sphinx III tree lexicon decoder(s3.x,s3fast,
s3inaccurate)

• What is s3.x actually?
• A spin-off of the Sphinx III flat lexicons
  source code
• First use was in BN 10x RT evaluation in 1999
• From s3.0 -gt s3.2
• Use tree-lexicon with unigram lookahead
• Lexical tree with approximation to avoid memory
  problem
• One of the first in the world used Sub-vector
  quantization in speed-up GMM computation

13
(cont.)

• From s3.2 -gt s3.3 (Rita, Ricky)
• Live mode recognizer (livedecode) and simulator
  (livepretend)
• From s3.3 -gt s3.4 (Evandro, Arthur C, Jahanzeb,)
• 4-level of speed-up of GMM computation, phoneme
  lookahead
• Bug fixes in live mode
• From s3.4 -gt s3.5 (Evandro, Arthur C, Yitao)
• (Tentative) Speaker adaptation documentation

14
Facts about S3

• A Java version exists -gt sphin3j
• Open source at 2002
• Always being maintained by Evandro from 2001 to
  now.
• s3.5 is the current active branch in S3
  development.

15
SphinxTrain

• Equally important and very complex
• But not well understood.
• What is SphinxTrain?
• A collection of 40 tools for Sphinx 2, 3 and 4
  acoustic model training
• A set of perl scripts to do training
• Sphinx 2 and 3 all have slight different formats
  of models

16
Mini-history

• Baum Welch trainer and Viterbi trainer existed
  very long time ago.
• Training tool in general was not systematic and
  was no structured.
• From the chaos, Eric Thayer first pull everything
  together to create the package SphinxTrain
• Rita did numerous bug fixes and modification of
  the current trainer
• Innovate the use of automatic question
  generation. (make_quest)
• Built a set of training scripts for RM (the 0/
  scripts)
• Write the first set of systematic tutorial on
  training
• Ricky refined the code and wrote the first set of
  perl script for Training.
• He made a PHD out of it too. (PHD Push Here
  Dummy!)
• Alan and Kevin
• Put the set of code to sourceforge
• Alan build a set of training script that can
  run-through

17
Sphinx IV

• Why Sphinx IV?
• Too many limitations in SphinxTrain and Sphinx
  III
• Only N-gram
• Approximation of triphones
• Fast GMM computation could be very troublesome to
  understood
• Bw doesnt skip silence. We heavily rely on
  force alignement in training.

18
Sphinx IV (cont.)

• (By no mean complete)
• Lead Design Bhiksha (MERL)
• Lead Team Developer Willer Walker (Sun)
• Key developers Evandro, Rita, Phillip Kwok and
  Paul Lamere
• Many heavy weight speech advisors Evandro, Rita,
  Ravi, Bhiksha, Medro Moreno

19
Is Sphinx IV good?

• Very accurate, very fast, very versatile and very
  nicely-pakcaged Java-based speech recognizer
• Some internal benchmark in RM and WSJ 5k is shown
  to be faster and more accurate than s3.3 (under
  1xRT and 10 better)
• Support N-gram, FSM and FSG.
• Will provide facilities like confidence-scoring
• Still under development (just have first alpha
  release)
• Trainer is not stable

20
Summary of the recognizers and trainers

• Sphinx I -gt obsolete
• Sphinx II -gt we are using the fast recognizer now
• Sphinx III, the following coexists
• S3 flat
• S3 fast (s3.4 stable, s3.5 devel)
• SphinxTrain (0.92 in the CVS)
• Sphinx IV
• Recognizer is alpha released
• Trainer not yet stable

21
How can I get version X of Sphinx?

• Official Web page of Sphinx
• http//cmusphinx.sourceforge.net
• Give announcement and news of development
• Some documentation is there.
• For the tarballs
• http//sourceforge.net/projects/cmusphinx
• Releases
• sphinx2-0.4.tgz (s2)
• sphinx3-0.1.tgz (s3.3)
• sphinx3-0.4-rc2.tgz (s3.4 release candidate II)
• sphinx4-0.1alpha-src.zip (s4)

22
Rule 2 If it doesnt exist in CVS, officially it
doesnt exist

• Simply speaking, no one actually support and
  maintain them. Software fall into this category
• CMU LM Toolkit (we havent touched it for a
  while)
• We may do it in the future.
• Phoenix (Distributed somewhere else)
• Training scripts in csh
• Rita always actively support it.

23
Rule 1 If they were no tarballs, they are in CVS

• ANYONE can get the following modules through CVS
  by using the following commands
• cvs z3 dpserveranonymous_at_cvs.sourceforge.net/
  cvsroot/cmusphinx co modulname
• modulename
• SphinxTrain -gt SphinxTrain
• archive_s3 -gt s3 s3.0 s3.2 s3.3
• sphinx2 -gt devel ver. of sphinx2
• sphinx3 s3.4 -gt we will check base on this to
  develop s3.5
• share cepview lm3g2dmp
• sphinx3j the java version of sphinx3
• Sphinx4 development version of sphinx4

24
Rule 3 You may need other modules to complete
your task

• SphinxTrain heavily rely on force alignment so
  you also need s3-align
• Usage of any s3 recognizers required the LM in
  DMP format so you need the tool lm3g2dmp which
  can be found in sphinx2 or share.

25
Where can I get more information for the
recognizer?

• People to ask
• s2 Evandro , Ravi
• S3 flat Evandro, Ravi , ArthurC
• S3 tree Evandro, Ravi, ArthurC
• SphinxTrain Rita, Evandro, Ravi, ArthurC, Rong,
  Ziad, Murali.
• S4 S4s developers in Sourceforge
• Willie, Paul, Phillip, Bhiksha, Rita, Evandro.

26
Web page to look up

• Ritas web page
• www.cs.cmu.edu/rsingh
• Contains the manual of training
• Twiki web page for sphinx 4 design
• www.speech.cs.cmu.edu/cgi-bin/cmusphinx/twiki/view
  /Sphinx4/WebHome/
• ArthurCs web page
• Risk his life to write a manual for Sphinx 3.4
• Also collect some information for each Sphinx

27
Outlook of all recognizers

• Sphinx II
• Sorry, we wont support it too much.
• Reason, s3.4 and s4 are proved to have very nice
  speed and accuracy performance
• Sphinx III
• Only active branch is s3.5
• Moderate change in s3flat
• Motivated by project CALO
• This quarter make adaptation works.
• SphinxTrain
• Write a set of scripts for Continuous HMM
  training
• Silence deletion problem will be fixed.

28
(cont.)

• sphinxDoc
• Chapter 1 and 2 completed (sigh, still 7 left)
• Only begin written when Arthur C is
  procrastinating and dont want to read and play
  video game.
• Will be there at around Sep or Oct.
• Sphinx IV
• Alpha release
• Trainer will be fixed
• Argus
• Incorporate the advantages of many speech
  recognizers together
• Not yet started.

29
Conclusion

• This presentation
• Summarize the current code status of Sphinx and
  SphinxTrain.
• We still have a lot of work to do
• Next presentation
• s3 or s3.4 from main to the search.
