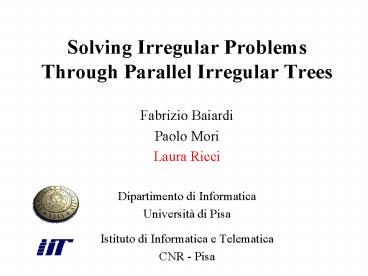

Solving Irregular Problems Through Parallel Irregular Trees

1
Solving Irregular Problems Through Parallel
Irregular Trees

• Fabrizio Baiardi
• Paolo Mori
• Laura Ricci
• Dipartimento di Informatica
• Università di Pisa
• Istituto di Informatica e Telematica
• CNR - Pisa

2
Outline

• Irregular problems main features
• Hierarchical representation of the domain
• Parallel Irregular Tree library
• Experimental results
• Future works

3
Irregular Problems

• the domain includes a set of elements
  characterised by
• the position in the domain
• other problem specific properties
• the elements distribution is
• non-homogeneous
• dynamic and non-predictable
• the evolution of an element
• depends upon that of other elements (locality)
• updates the element properties
• Examples
• Barnes Hut
• Adaptive Multigrid Methods
• Radiosity methods

4
Hierarchical Representation

• the domain is recursively partitioned into a set
  of spaces by applying a a problem dependent
  condition
• the Hierarchical Tree represents the
  decomposition and each Hnode represents either a
  space or an element

5
Distributed Hierarchical Tree

• Htree representation distributed among the
  p-nodes
• pt lth0,..hn-1, mHtgt
• private Htree (pHt) subtree assigned to a p-node

• mapping Htree (mHt) represents the hierarchical
  relations among the private Htrees ( )

h0
h1
h3
h2
6
PIT Library

• defines
• PITree
• PIT operations
• key point both the sequential and the parallel
  versions of the application are structured in
  terms of operations on Htrees
• aims
• be a simple, complete and effective
  parallelization tool
• hide to the user the details of the parallel
  programming
• preserve most of the sequential code

7
PIT API

• main operations
• PITree creation
• PITree completion
• PITree update
• alternative API
• standard
• advanced
• composition of the adopted API
• standard structure
• customised for the specific problem

8
PITree Creation

• it creates the PITree starting from the domain
  elements
• one (or more) pHt for each p-node
• one mHt replicated in each p-node
• it implements a distributed strategy to exploit
  memory at best
• it needs some user-defined functions to manage
  the elements of the target problem

9
PITree Completion (I)

• standard API
• fault prevention and informed fault prevention
• one function only implements the strategy
• invoked before each operator
• PITree_completion(pht_root, stencil_0)
• tp_op_0(pht_root)

this comes from the sequential code
10
PITree Completion (II)

• advanced API
• informed fault prevention only
• two distinct functions
• PITree_det_neighbours invoked each time the
  neighbourhood relations among the elements
  changes
• PITree_exch_neighbours invoked before each
  operator
• PITree_det_neighbors(pht_root, stencil_0)
• PITree_exch_neighbors(pht_root, stencil_0)
• tp_op_0(pht_root)

this comes from the sequential code
11
PITtree Update (I)

• advanced API two distinct functions
• PITree correction
• updates the mapping of the elements violating the
  mapping strategy
• it is invoked after each operator that updates
  the distribution
• tp_op_0(pht_root)
• PITree_correction(pht_root)
• PITree balance
• updates the mapping to redistribute the workload
  among the p-nodes
• it is invoked after each operator that modifies
  the workload
• tp_op_0(pht_root)
• PITree_balance(pht_root, Tresh)

12
PITtree Update (II)

• Standard API
• one function only, PITree update, implements the
  PITree correction and balancing
• PITree update is invoked after each operator
• tp_op_0(pht_root)
• PITree_update(pht_root, Tresh)

13
Parallelization

• Standard
• the functions of the sequential version are
  inserted into the standard structure
• the development is straighforward
• a deep knowledge of the target problem is not
  required
• Customized
• the PIT operations are inserted into the
  sequential code according to the semantics of the
  target problem
• a deep knowledge of the target problem is
  required
• both the standard and the advanced API can be
  adopted
• it achieves a better efficiency

14
Sequential Code

• irregular_problem(tElementList dom)
• ...
• root Htree_creation(dom)
• ...
• while (not solution_computed)
• tp_op_0(root)
• tp_op_n(root)

problem operator mainly consists in a visit of
the Htree
15
Standard Structure

• irregular_problem(tElementList dom)
• ...
• pht_root PITree_creation(dom, dec_el,
  incl_el, rem_el)
• ...
• while (not solution_computed)
• PITree_completion(pht_root, stencil_0)
• tp_op_0(pht_root)
• pht_root PITree_update(pht_root, T)
• .
• PITree_completion(pht_root, stencil_n)
• tp_op_n(pht_root)
• pht_root PITree_update(pht_root, T)

16
Customised Structure

• irregular_problem(tElementList dom)
• pht_root PITree_creation(dom, dec_el,
  incl_el, rem_el)
• ...
• while (not solution computed)
• PITree_det_neighbors(pht_root,
  stencil_0..stencil_i)
• PITree_exch_neighbors(pht_root, stencil_0)
• tp_op_0(pht_root)
• PITree_exch_neighbors(pht_root, stencil_i)
• tp_op_i(pht_root)
• PITree_correction(pht_root)
• PITree_det_neighbors(pht_root,
  stencil_i1..stencil_n)
• PITree_exch_neighbors(pht_root, stencil_n)
• tp_op_n(pht_root)
• PITree_update(pht_root)

17
Validation

• Applications
• Adaptive Multigrid Methods
• Hierarchical Radiosity
• Parallel architectures
• PC cluster
• Intel Pentium II 266MHz
• 128 Mb
• 100Mb Fast Ethernet
• IBM Beowulf (x330)
• Intel Pentium III 1.133GHz
• 1GB per p-node (2 procs)
• Myricom LAN (264MB)

18
Adaptive Multigrid Methods

• fast iterative methods to solve partial diff.
  equations
• discretized and multi level domain representation
  through a grid hierarchy

• adaptive problem
• the discretization is finer where the equation is
  irregular
• new grids are added during the computation

• Poisson Problem

19
Sequential Code

• amm(tElementList initial_grid)
• rootHtree_creation(initial_grid)
• while (not end)
• smoothing(root, v, f, all_levels)
• for level from Lmax downto Lg
• rest(root, level)
• restriction(root, level-1)
• smoothing(root, e, r, level-1)
• for level frm Lg1 to Lmax
• prolongation(root, level)
• correction(root, e, level)
• smoothing(root, e, r, level)
• correction(root, v, all_levels)
• end norm(root)
• if (not end) Lmax refinement(root)

20
Parallel Code (I)

• amm(tElementList initial_grid)
• pht_root PITree_creation(initial_grid,
  dec_el, incl_el, rem_el)
• while (not end)
• PITree_det_neighbors(pht_root, stencil_union)
• PITree_exch_neighbors(pht_root,
  smooth-rest_stencil, all_levels)
• smoothing(pht_root, v, f, all_levels)
• for level from Lmax downto Lg
• PITree_exch_neighbors(pht_root,
  smooth-rest_stencil, level)
• rest(pht_root, level)
• PITree_exch_neighbors(pht_root,
  restriction_stencil, level)
• restriction(pht_root, level-1)
• PITree_exch_neighbors(pht_root,
  smooth-rest_stencil, level)
• smoothing(pht_root, e, r, level-1)

21
Parallel code (II)

• for level frm Lg1 to Lmax
• PITree_exch_neighbors(pht_root,
  prolongation_stencil, level)
• prolongation(pht_root, level)
• correction(pht_root, e, level)
• PITree_exch_neighbors(pht_root,
  smooth-rest_stencil, level)
• smoothing(pht_root, e, r, level)
• correction(pht_root, v, all_levels)
• PITree_exch_neighbors(pht_root, norm_stencil,
  level)
• end norm(pht_root)
• if (not end)
• Lmax refinement(pht_root)
• pht_root PITree_update(pht_root, T)

22

• Domain
• Hierarchical
• Decomposition
• After
• 10 Iterations

23
Load Balancing
24
Efficiency
25
Hierarchical Radiosity

• a model of the light exchanges to compute the
  illumination of a scene
• representation of the scene
• discretized and hierarchical
• adaptive
• locality interactions among objects at distinct
  abstraction levels

26
Sequential Code

• hierarchical_rad(segment_list scene)
• root Htree_creation(scene)
• visib_list_det(root)
• while (not end)
• Gather_H(root)
• for level from L_min to L_max
• Push_H(root, level)
• for level from L_max downto L_min
• Pull_H(root, level)
• end RefineLink_H(root)

27
Parallel Code (I)

• hierarchical_rad(segment_list scene)
• pht_root PITree_creation(scene, dec_el,
  incl_el, rem_el)
• PITree_exch_neighbors(pht_root, vis_stencil,
  all_levels)
• visib_list_det(pht_root)
• while (not end)
• PITree_exch_neighbors(pht_root, int_list,
  all_levels)
• Gather_H(pht_root)
• for level from L_min to L_max
• PITree_exch_neighbors(pht_root,
  push_stencil, level)
• Push_H(pht_root, level)

28
Parallel Code (II)

• for level from L_max downto L_min
• PITree_exch_neighbors(pht_root,
  pull_stencil, level)
• Pull_H(pht_root, level)
• end RefineLink_H(pht_root)
• pht_root PITree_balance(pht_root)

29

• Test
• Scene
• 192 polygons
• 896 segments

30
Efficiency
31
Future Works

• the definition of the set of problems that cannot
  be solved adopting our methodology
• the definition of programming constructs for the
  considered class of problems
