Indexing of Dynamic Abstract Regions

1

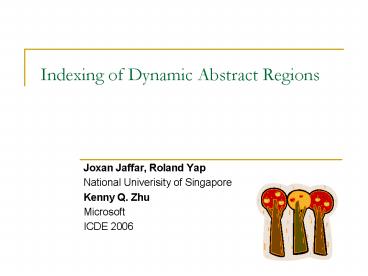

Indexing of Dynamic Abstract Regions

• Joxan Jaffar, Roland Yap
• National Univerisity of Singapore
• Kenny Q. Zhu
• Microsoft
• ICDE 2006

2
Outline

• What are we indexing?
• Existing Methods
• The RC-tree
• Clipping and Domain Reduction
• Partial Rebuilding
• Dynamic Segmentation
• Heuristics
• Technical Results
• Experimental Results
• Future Work
• Conclusion

3
What are we indexing?

• Stock trading system
• Large number of triggers like these
• Trader A if price of IBM 50, then sell 100
  shares of IBM otherwise if price of Dell 35,
  then buy 200 shares of dell
• Trader B if the price of Dell 2 times the
  price of IBM, then buy 100 shares of IBM and sell
  100 shares of Dell
• Need an index for them!

4
What are we indexing? (contd)

• Conjunctions of linear constraints, e.g.
• Abstract regions of interest or shapes
• Multi-dimensional spatial objects
• May overlap each other

5
Existing Representations

• GIS applications usually rigid objects with no
  overlapping
• Minimum Bounding Rectangles (MBR) approximations
• Manual segmentation into smaller boxes (consider
  a freeway!)
• Segmentation either too coarse (dead space) or
  too fine (space and time cost)

6
Existing Representations Highways in Germany
7
Existing Data Structures

• R-tree object partitioning, height balanced
• R-tree space partitioning (clipping),
  height-balanced
• R-tree R-tree variant with a different object
  splitting method
• Kd-tree space partitioning, weight-balanced
• Quad-tree space partitioning, unbalanced
• CR-tree cache-conscious R-tree

8
The RC-tree

• Reducible Clip-tree
• A general weight-balanced binary tree for dynamic
  search and update of k-dimensional spatial
  objects
• Designed for main-memory use
• Intermediate nodes space-partitioning
  hyper-planes as discriminators
• Leaf nodes (overflow nodes) indexed objects
• Objects that intersects with the discriminators
  are clipped and domain-reduced

9
Clipping and Domain Reduction

• A Original objects
• B MBR-based indexing
• C RC-tree with discriminators d1, d2, and d3

10
Benefits of Domain Reduction
11
Dynamic Segmentation

• A pre-defined leaf capacity L
• A leaf is split only if number of (clipped)
  objects is larger than L
• Splitting of a leaf node may cause segmentation
  (clipping) of object if the objects are
  overlapped
• Compare with BSP
• Only segment an object when necessary (on demand)
  as opposed to static segmentation

12
Dynamic Segmentation
13
Dynamic Segmentation
14
Dynamic Segmentation
15
Partial Rebuilding

• Originally from Overmars
• Rebuild part of the tree that is out of balance
• Balancing criterion
• where T is any sub-tree rooted at node T
• Flush all objects (clipped) within T, merge them
  and rebuild the sub-tree
• Controls clipping and space usage

16
Partial Rebuilding
partial rebuild
h
T
T
17
Some Heuristics

• Additional MBRs at intermediate nodes to speed up
  ruling out false queries
• Finding the right discriminator
• RC-SWEEP sorts the objects and sweeps through to
  balance the weight and minimize clipping ? more
  optimized but slower
• RC-MID quickly partitions the objects in the
  middle of the sub-space and ignore the effects of
  clipping ? less optimized but fast

18
Technical Results

• Given a constant scaling factor s which bounds
  the relative extents of objects and assuming a
  fixed dimensionality k
• The amortized insertion cost of a balanced
  RC-tree of n objects has O(sklog(n)) time
  complexity.
• A point query has average O((1.5)k(log(n)sk))
  time
• A RC tree has worst case O(skn) space
  complexity.

19
Experimental Results

• Synthetic Datasets overlapping line segments and
  triangles
• Traditional GIS Datasets e.g. German roads

20
Search cost synthetic data (log scale)
21
Search cost GIS data
22
Space Usage Synthetic Data
23
Space usage GIS data
24
Hit rates Synthetic Data (negative log scale)
25
Search time GIS Data
26
Insertion and Search Cost vs. log(n)
27
Other Empirical Results

• Range queries better query accuracy
• Dynamic vs. static segmentation
• Cache oblivious RC-tree
• Some limited performance improvement
• Requires larger cache-line relative to the node
  size

28
Future Work

• Indexing higher dimension regions
• Application of domain reduction techniques in
  height-balanced indexes
• More advanced cache study of RC-tree
• Using RC-tree and its techniques in triggering of
  active database and other business applications

29
Conclusion

• A good weight-balanced clipping-based index for
  both overlapping and non-overlapping spatial data
• Allows the tuning of space-time trade off
• Combines dynamic segmentation, domain reduction
  and partial rebuilding
• Renews the interest in spacing partitioning and
  object clipping indexing methods
