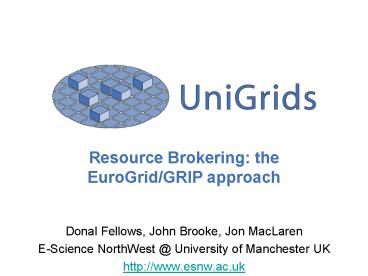

Resource Brokering the EuroGrid/GRIP approach

• Donal Fellows, John Brooke, Jon MacLaren
• E-Science NorthWest _at_ University of Manchester UK
• http//www.esnw.ac.uk

2
Grid Interoperability

• In European and Japanese Grid projects there are
  two major middleware systems deployed, Globus
  (US) and Unicore (Europe/Japan).
• Globus is mainly deployed in cluster-based Grids
  and Unicore in projects with complex
  heterogeneous architectures (e.g. specialist HPC
  architectures).
• The FP 5 project GRIP began looking at the
  question of how resource requests could be
  handled from Unicore to Globus and the FP6
  project takes this work forward into the world of
  service-based architectures (e.g. OGSA)

3
Starting point - GRIP

• EU Funded FP5 Project as part of Information
  Society Technologies Programme IST 2001-32257
• http//www.grid-interoperability.org/

4
A Dual Job-Space

• Thus we have a space of requests defined as a
  vector space of the computational needs of users
  over a Grid. For many jobs most of the entries in
  the vector will be null.
• We have another space of services who can
  produce cost vectors for costing for the user
  jobs (providing they can accommodate them).
• This is an example of a dual vector space.
• A strictly defined dual space is probably too
  rigid but can provide a basis for simulations.
• The abstract job requirements will need to be
  agreed. It may be a task for a broker to
  translate a job specification to a user job for
  a given Grid node.

5
4 - Dual Space
Scalar cost in tokens
1
Job vector
Cost
2
Cost vector
User Job
6
Computational resource

• Computational jobs ask questions about the
  internal structure of the provider of
  computational power in a manner that an
  electrically powered device does not.
• For example, do we require specific compilers,
  libraries, disk resource, visualization servers?
• What if it goes wrong, do we get compensation? If
  we transfer data and methods of analysis over the
  Internet is it secure?
• A resource broker for high performance
  computation is a different order of complexity to
  a broker for an electricity supplier.

7
EuroGrid Meteo-Grid
8
Resource Requestor and Provider Spaces

• Resource requestor space (RR), in terms of what
  the user wants e.g. Relocatable Weather Model,
  106 points, 24 hours, full topography.
• Resource Provider space (RP), 128 processors,
  Origin 3000 architecture, 40 Gigabytes Memory,
  1000 Gigabytes disk space, 100 Mb/s connection.
• We may even forward on requests from one resource
  provider to another, recasting of O3000 job in
  terms of IA64 cluster, gives different resource
  set.
• Linkage and staging of different stages of
  workflow require environmental support, a hosting
  environment.
• We can have multiple offers in RP space for the
  same RR values

9
Abstract Functions for a resource broker

• Resource discovery, for workflows as well as
  single jobs.
• Resource capability checking, do the offering
  sites have ALL necessary capability and
  environmental support for instantiating the
  workflow.
• Inclusion of Quality of Service policies in the
  offers.
• Information necessary for the negotiation between
  client and provider and mechanisms for ensuring
  contract compliance.
• Document submitted to GPA-RG group of GGF.

10
Brokers as Virtual Organizations
Users
VirtualOrganisationBrokers
OrganizationFirewalls
SystemBrokers
ComputeResources
11
Federated Brokering
12
Brokering and OGSA Services
13
Possible OGSA Broker

• Interoperating OGSA services

14
Site Configuration
Gateway
Users Contact NJSes or Broker (for site-wide
brokering)
Delegate (site-wide brokering only)
Delegate (site-wide brokering only)
Broker
NJS
NJS
LRC
LRC
IDB
IDB
Potential to Share (Partial?) IDBs between NJSes
(CSAR Config?)
TSI
TSI
TSI SuppliesDynamic Datato IDB
15
UoM Broker architecture
To outside world
16
Broker functions

• A simple Resource Check request Can this job
  run here, checks static qualities like software
  resources (e.g. Gaussian98) as well as capacity
  resources like quotas (disk quotas, CPU, etc.)
• A Quality of Service request returns a range of
  turnaround time, and cost, as part of a Ticket.
  If the Ticket is presented (within its lifetime)
  with the job, the turnaround and cost estimates
  should be met.

17
Grid Resource Description Problem

• Two Independent Grid Systems
• Unicore (http//www.unicore.org/)
• Globus (http//www.globus.org/)
• Both Need to Describe Systems that run Compute
  Jobs
• Very Different Description Languages
• Unicores Resource model, part of the AJO
  Framework
• Globuss GLUE Schema (DataTAG, iVGDL) for GT2 and
  GT3
• For interoperability, we want to take a Unicore
  job and run it on Globus resources
• Therefore, we need to translate the Jobs
  Resource Requirements between the two Systems

18
Methodology fortranslation servce

• Address Data Transformation Issues for
  Translating Attributes
• Find a technology that has these characteristics
• can model the two ontologies
• has support for linking abstract concepts to code
  fragments
• easily allows someone to update mappings
• is appropriate for a video conferencing setting
• writes modelling information to a file format
  that can be used by other applications
• Use the data files created by the application to
  run the translator service.

19
Unicore Modelling Resources
20
GLUEModelling resources
21
GLUE Marking up transcripts
22
GLUE Provenance Information
23
Compatible Concepts
24
Translation Service Prototype
25
Conclusions

• Interoperability of grid resource requests is at
  the heart of the abstract idea of computational
  resource that can cross Grid domain boundaries
• We wish to provide application users with
  seamless access to resources, they should not
  need to know details of the machines on which
  they run.
• High level abstractions do not yet exist as
  standards, so we have to create ontologies that
  can translate differing modelling abstractions
  for Grid resources.
• Our current translations lose much information
  in crossing between current middleware systems
  (e.g. Globus and Unicore).

26
Continuation of interoperability research

• Research Centre Jülich
• (Project manager)
• Consorzio Interuniversitario
• per il Calcolo Automatico
• dellItalia Nord Orientale
• Fujitsu Laboratories of Europe
• University of Warsaw
• Intel GmbH
• University of Manchester
• T-Systems SfR

http//www.unigrids.org
27
GLUE Container Classes

• GLUE has container classes that include
  Computing Element, Cluster, Subcluster and
  Host. From the heading Representing
  Information, the GLUE document indicates
• hosts are composed into sub-clusters,
  sub-clusters are grouped into clusters, and then
  computing elements refer to one or more clusters.

These container objects may hold any number
optional auxiliary classes that actually describe
the GRID features.
28
GLUE Auxiliary Classes

• The documentation provides few details about the
  nature of a Host other than that it is a
  physical computing element. Much of the
  meaning for Host has to be derived from what it
  might contain. Consider the following two valid
  definitions

A Host is a physical computing element
characterized by Main Memory, a Benchmark, a
Network Adapter and an Operating System
A Host is a physical computing element
characterized by an Architecture, a Processor and
an Operating System.
29
Map conceptsbetween ontologies

• Unicore and GLUE have different philosophies for
  describing resources -(
• In Unicore, the resources are described in terms
  of resource requests
• In GLUE, resources are described in terms of the
  availability of resources.

30
Local Brokering Configurations
Client
Client
Gateway
Gateway
Broker
Broker
NJS
NJS
R-GMA
NJS
NJS
IDB
TSI/Host
GT3
Host
Host
Host
Site-Wide Brokering
Normal EUROGRID/GRIP Brokering
31
RR and RP Spaces
