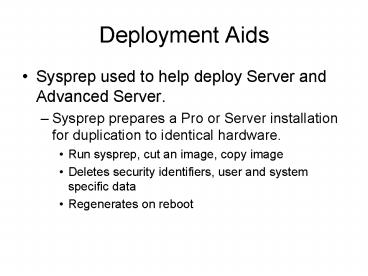

Deployment Aids

• Sysprep used to help deploy Server and Advanced
  Server.
• Sysprep prepares a Pro or Server installation for
  duplication to identical hardware.
• Run sysprep, cut an image, copy image
• Deletes security identifiers, user and system
  specific data
• Regenerates on reboot

2
Deployment

• Remote OS Installation
• Server hosted equivalent CD
• Remote Installation Service
• Requires DNS, DHCP, Active Dir.
• Installed on a shareable volume
• Cant be on the servers system drive
• Formatted as NTFS

3
Command Interface

• Start / Run / Command
• Example
• Netstat /?

4
Naming Conventions

• Distinguished Name DN
• Defines the domain and the related containers in
  which the object resides.
• Relative Distinguished Name RDN
• An attribute of an object
• Globally Unique Identifier
• Avoids duplication, ensures uniqueness, a 128 bit
  number assigned to an object on creation and
  stored with it.

5
Naming Conventions

• User Principal Name UPN
• Combines the user account name with the domain
  name where the account exists
• Domain Component DC
• Organizational Unit OU
• Common Name CN

6
(No Transcript)
7
Microsoft Directory Services

• MS does not support an extension of LDAP, called
  LDAP Duplication Update Protocol.
• Violation of directory rules can lead to
  cascading errors in directory
• Uses synchronization to populate and update
  directories

8
Microsoft Directory Services

• Microsoft left out major portions of the X.500
  protocol in the AD.
• B/C Dependent on OSI networking layer and lack of
  public interest.
• Elements include
• Dir. Access Prot, Dir. Systems Prot., Dir Info
  Shadowing Prot.,Dir Operational Binding
  Management Prot.

9
What is a directory service?

• A directory is like a database, but tends to
  contain more descriptive, attribute-based
  information. The information in a directory is
  generally read much more often than it is
  written.
• Directory updates are typically simple
  all-or-nothing changes, if they are allowed at
  all.
• Directories are tuned to give quick-response to
  high-volume lookup or search operations.

10
LDAP

• Lightweight Directory Access Protocol.
• A directory service protocol that runs over
  TCP/IP.
• The details of LDAP are defined in RFC 1777 "The
  Lightweight Directory Access Protocol."

11
LDAP

• The LDAP directory service model is based on
  entries.
• An entry is a collection of attributes that has a
  name, called a distinguished name (DN).
• Each of the entry's attributes has a type and one
  or more values.

12
LDAP

• Types are typically mnemonic strings, like "cn"
  for common name, or "mail" for email address.
• mail attribute might contain the value
  "bdobs_at_psu.edu
• jpegPhoto attribute would contain a photograph in
  jpeg format

13
How is the information arranged?

• Directory entries are arranged in a hierarchical
  tree-like structure that reflects political,
  geographic and/or organizational boundaries.
• Entries representing countries appear at the top
  of the tree.
• Below them are entries representing states or
  national organizations.
• Below them might be entries representing people,
  organizational units, printers, documents,

14
LDAP Tree
CGB
CUS
OPSU
CNRick Evans
CNRichard Evans
mailrevans_at_psu.edu
15
How is the information referenced?

• Entry is referenced by its distinguished name,
  constructed by taking the name of the entry
  itself (called the relative distinguished name,
  or RDN) and concatenating the names of its
  ancestor entries.
• For example, the entry for Rick Evans in the
  example above has an RDN of "cnRick Evans" and a
  DN of "cnRick Evans, oPSU, cUS". The full DN
  format is described in RFC 1779, "A String
  Representation of Distinguished Names."

16
Resources

• http//www.oblix.com/pointofentry/ldap/index.html

17
Trusts

• Two-way transitive trust
• Automatically achieved between domains in the
  same tree or can be established between domains
  on separate trees.
• Explicit one-way trust
• Created between specific domains in two different
  forests and provide one-way restricted
  permissions.

18
Domain Trees Child Domains

• When should a child be created?
• Is decentralized administration desired
• Do you need tight/localized administration
• Do business activities dictate separate domains
• Do account policies need to differ

19
Domain Trees Child Domains

• When should a forest be created?
• Are the business activities extremely different?
• Are there reasons for maintaining separate
  identities
• Unique trade names
• Do joint venture or partner relationships exist
  that require tighter control over network
  resources.
• Enforcing direct administrative and security
  restrictions

20
User accounts

• Unique identifier
• SID security identifier
• User and group SIDs form the security token
• Unique, must be regenerated if account is
  deleted.
• Mapped to the Access control list
• DACL discretionary access control list is a
  security descriptor, who has permission to use.

21
(No Transcript)
22
Profiles

• Local User maintained on each system in the
  users profile directory.
• Roaming allows users to move from system to
  system, located in shared directory of server.
• Mandatory restricted by sysadmin to permit
  consistent desktops.
• Ntuser.dat to Ntuser.man

23
Contents Profile Directory

• Cookies
• Desktop
• Favorites
• My documents
• Start Menu

24
All users profile

• Application Data
• Local Settings
• NetHood domains files accessed
• PrintHood
• Recent
• Send To
• Templates for Office Apps.

25
Novell NetWare

• 1983 NetWare/86 file print sharing
• NetWare 286 multitasking
• NetWare 386 larger networks
• NetWare 4.11- IntraNetware
• NetWare 4.2 NetWare for small Business
• NetWare 3.2 mid size networks/older cpus
• 1998 Netware 5.0 larger networks
• 2003 Netware 6.5 - Internet

26
NetWare

• IP protocol
• Backward compatible to IPX
• Java enabled
• NSS Novell Storage System
• Volumes Mounts

27
File Server Capacity
28
NetWare

• NetWare Loadable Modules NLMs
• Add hardware without rebooting
• Remove without stopping server
• Increase volume size while S is running
• Multiprocessor kernel MPK
• Supports symmetrical multiprocessing H/W (SMP)
• Multithreading
• Up to 32 processors - Questionable release date

29
NetWare

• NetWare Directory Services
• Organizes users, groups, devices into a tree like
  structure
• NDS Tree
• Single user login
• Scalable, up to unlimited sizing
• 1999 test had a billion users

30
NetWare

• Novell's core-services are wrapped around NDS
  eDirectory, a robust, cross-platform directory
  service.
• NDS eDirectory ships with NetWare 5.1 and is
  available in versions that run natively on Linux,
  Solaris, and Windows 2000 and NT - no NetWare
  required.

31
NetWare

• NDS - NetWare's central feature. All the services
  that ship in the NetWare 5.1 box, all those
  available from Novell separately and even most
  third-party additions plug into the directory to
  become part of a fabric of integrated services.
• This integration gives administrators a
  replicated, fail-safe, single point of
  administration.
• Users, get one place to search for enterprise
  wide resources and one point of authentication to
  gain access to those resources.

32
NetWare

• Fault tolerance (3 Levels)
• SFT1 single server, when a sector goes bad, the
  bad sector to a good one. Hot fix.
• Redundant volume data structures
• SFTII level two, has all the features of one and
  uses disk mirroring and duplexing
• Duplexing has a controller for each drive

33
Mirror
Duplex
34
NetWare

• Fault tolerance (Cont)
• SFTIII Level three consists of SFT II plus server
  mirroring, or redundant servers.
• Two servers connected using a high speed Mirrored
  Server Link (MSL)
• Nonstop operation using an entirely redundant
  server.

35
(No Transcript)
36
NetWare

• Security
• Public key infrastructure PKIS
• Enables public key cryptography and digital
  certificates. Local certificate authority SSL
• Novell International Cryptographic Infrastructure
• Enable cryptography services for confidentiality,
  integrity, and authentication
• Secure Authentication Services SAS
• Auditing

37
NetWare 5.1's security

• built on an RSA dual-key-encrypted security store
• authentication methods-- passwords, tokens,
  biometrics, smartcards and X.509 certificates
• Cryptography services in the form of Novell's
  International Cryptographic Infrastructure (NICI)
  ship with and plug into NetWare's modular
  security services and provide DES/RC2/RC4 data
  encryption of 56-bit to unlimited strength.

38
NetWare 5.1's security

• NetWare 5.1 automatically creates a
  directory-based CA and generates a server
  certificate, which it uses for the Web-accessible
  NetWare Management Portal (NMP) and the
  Enterprise Web Server.

39
NetWare 5.1's security

• SSL-enabled and secure out of the box with
  NetWare 5.1
• NetWare supports minimum password lengths,
  intruder detection lockout and unique passwords
• does not have a built-in method for identifying
  weak passwords or forcing users to use
  punctuation marks or other special characters in
  their passwords.

40
NetWare

• DNS DHCP
• LDAP
• Web Server
• Netscape FastTrack Server
• FTP Unix printing services
• NIS, telnet, XConsole

41
NetWare

• Client support
• Windows
• UNIX
• OS/2
• MacOS
• DOS

42
NetWare

• ZENWorks Zero Effort Networks

43
NetWare

• NetWare NFS services
• Two parts NFS gateway NFS server
• Gateway permits clients to access a Unix file
  system as a NetWare volume
• NFS server exports NetWare volumes to Unix and
  other NFS clients
• Access is granted using traditional Unix Mount
  commands
• Line printer/Line printer Daemon LPR/LPD
• Built on Suns NFS services 2.0

44
NetWare

• NDS for Non-NetWare Platforms
• NDS for NT
• NWAdmin Snap-in
• NDS for Unixware
• NDS for Solaris
• Others

45
NetWare

• NDS Directory Tree
• Graphical display of the network
• Consists of objects that are resources
• Displays relationships
• Objects have properties and values
• Property defines a function
• Value are the data for the property

46
NetWare

• NDS tree Objects
• Container (4)
• Root
• Country
• Organization
• Organizational Unit
• Leaf objects
• User, printer, file server (16)

47
NetWare

• File System
• File Server
• Volumes
• Directories
• Files
• Rights Supervisor,R,W,Create,Erase,Modify,File
  Scan,Access Control

48
NetWare

• Web-based management tool- NMP
• create and delete NDS users and groups, manage
  the Enterprise Web Server, the NetWare Web Search
  Server and the NetWare News Server.
• access volume management, trustee assignments,
  server management, NDS management, remote-server
  access to other NetWare 5.1 server portals and
  limited access to the file systems on NetWare 5
  and 4.x servers in the same tree.

49
NetWare

• The NMP provides hardware information, console
  screens and server-health monitors.
• mount and dismount volumes, set volume attributes
  and server parameters, restart servers, manage
  connections, broadcast messages to connected
  users, view statistics and graphical
  representations of server performance, debug
  problems, and execute console commands.

50
Costs

• Windows 2000 Advanced Server, 3,999 with 25
  client access licenses
• NetWare 5.1, 3,155 for 25-connections
• Solaris 8, free, Sun Microsystems

51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
NetWare 6 Features

• There are a broad range of features.
• Many features are not available in other NOSs.

58
Storage Management

• Server storage is divided into logical volumes.
• A volume may be one or more hard drives, CD-ROMs,
  DVDs, or SANs.
• A storage volume can contain eight terabytes.

59
Storage Management
60
Storage Management

• NetWare supports storage virtualization.
• Storage pools can be from 1 to 254 volumes.
• Storage pools can exceed the physical storage
  currently available.

61
Deployment

• No additional client software is required to
  connect to a NetWare server.
• NetWare automatically recognizes and supports
  protocols from different client operating
  systems.
• NetWare 6 can be installed incrementally to
  existing networks.

62
iPrint

• Any LAN printer can be accessible through the
  Internet.
• iPrint can create a facility floor plan that
  shows the physical location of printers.
• Users click on the printer icon to select the
  printer to use.
• Printer drivers are automatically downloaded and
  installed.

63
iPrint
64
iFolder

• Provides remote users a simple means of accessing
  files on a NetWare server.
• Files and directories are accessed by special
  software or a Web browser.
• Transmitted files are encrypted.
• iFolder provides synchronization.

65
eDirectory

• eDirectory is Novell NetWares directory service.
• It can manage users running different NOSs.
• It can create dynamic groups.
• Persistent search can take action whenever change
  occurs.

66
User Accounts

• Performed at ConsoleOne
• Name
• Surname
• Password
