Title: OPERATING SYSTEM OVERVIEW


1

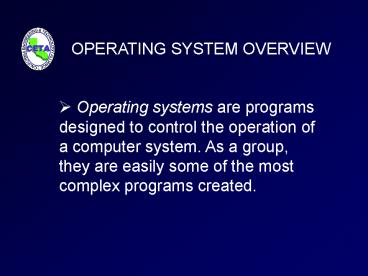

OPERATING SYSTEM OVERVIEW
  • Operating systems are programs designed to
    control the operation of a computer system. As a
    group, they are easily some of the most complex
    programs created.

2
OPERATING SYSTEM OVERVIEW
  • Every portion of the system must be controlled
    and coordinated so that the millions of
    operations that occur every second are carried
    out correctly and on time.
  • In addition, it is the job of the operating
    system to make the complexity of the PC as
    invisible as possible to the user.

3
OPERATING SYSTEM OVERVIEW
  • The operating system acts as an intermediary
    between nearly as complex software applications,
    and the hardware they run on.
  • Finally, the operating system accepts commands
    from the computer user and carries them out to
    perform some desired operation.

4
OPERATING SYSTEM OVERVIEW
  • This control is so precise that for applications
    to run correctly, they must be written within the
    control parameters of an OS, and are not portable
    to other OSs.
  • For example, an application, such as Microsoft
    Excel written for Windows NT 4, will not function
    on an UNIX computer.

5
OPERATING SYSTEM OVERVIEW
  • Literally thousands of different operating
    systems are in use with microcomputers. The
    complexity of each operating system typically
    depends on the complexity of the application the
    microcomputer is designed to fill.

6
OPERATING SYSTEM OVERVIEW
  • The operating system for a fuel mixture
    controller in an automobile is relatively simple,
    but an operating system for a multi-user computer
    system that controls many terminals is relatively
    complex.

7
OPERATING SYSTEM OVERVIEW
  • In the large, multi-user system, the operating
    system is likely to be stored on disk and have
    sections loaded into RAM when needed.
  • This type of operating system must control
    several pieces of hardware, manage files created
    and used by various users, provide security for
    each users information, and manage
    communications between different stations.

8
OPERATING SYSTEM OVERVIEW
  • A disk operating system (DOS) is a collection of
    programs used to control overall computer
    operation in a disk-based system.
  • These programs work in the background to enable
    the user of the computer to input characters from
    the keyboard, to define a file structure for
    storing records, or to output data to a monitor
    or printer. The DOS is responsible for finding
    and organizing your data and applications on the
    disk.

9
OPERATING SYSTEM OVERVIEW
  • The disk operating system (DOS) can be
    divided into three distinct sections
  • Resource management - Manages the hardware
    including CPU, memory, secondary storage, and I/O
    peripherals.
  • File management - Controls the creation,
    deletion and access of program and data files.
  • Task management - Manages the execution of tasks
    required to accomplish user-directed requests by
    giving each task a slice of CPU time and
    directing CPU interrupts.

10
OPERATING SYSTEM OVERVIEW
  • Prior to the invention of the network operating
    system, the functionality of network
    communication had to be added to an existing
    operating system.
  • This addition usually came in the form of some
    sort of communication software packages or OS
    add-on used to extend the functionality of
    standalone operating systems to be shared with
    other users.

11
OPERATING SYSTEM OVERVIEW
  • For a system to communicate in a networked
    manner, the original OS and the Network Operating
    System (NOS) extensions had to be present on a
    single computer.
  • Microsofts LAN Manager is an excellent example
    of this type of technology. It was an add-on to
    MS-DOS, Windows 3.x, and OS/2 computers to enable
    networked communications.

12
OPERATING SYSTEM OVERVIEW
  • It wasnt long before true NOSswhich were able
    to manage the activities on both standalone
    computers and network communicationsreplaced OS
    add-ons.
  • Such network operating systems include Novells
    NetWare, UNIX and Microsofts Windows 2000.

13
OPERATING SYSTEM OVERVIEW
  • NOSs require a lot of computing power.
  • To get the most power out of a hardware
    configuration, many network operating systems,
    and some non-network operating systems, make use
    of a process called multitasking, which allows an
    operating system to run numerous
    processescontrol more than one task
    simultaneously.

14
OPERATING SYSTEM OVERVIEW
  • A true multitasking OS is able to support as
    many simultaneous processes as there are CPUs.
    However, when a computer only
  • has one CPU, multitasking can be simulated
    through a technique called time slicing.

15
OPERATING SYSTEM OVERVIEW
  • Time slicing involves dividing CPU computing
    cycles (hundreds to millions of cycles per
    second) between multiple tasks.
  • You do this by giving each task a certain amount
    of process cycles, then halting that task to make
    the next task active. This process repeats until
    each task is finished.

16
OPERATING SYSTEM OVERVIEW
  • It is important to note that there are two types
    of multitasking
  •
  • Preemptive -The operating system controls which
    processes are
  • allowed access to the CPU and for how long. Once
    the assigned
  • time slice expires, the current process is
    halted and the next
  • process is given its computing time.
  •
  • Cooperative -The operating system cannot stop a
    process once
  • CPU control is given to a process, it retains
    control until the
  • process is complete. During this time, no other
    process is allowed to access the CPU

17
OPERATING SYSTEM OVERVIEW
  • A true high-performance NOS employs preemptive
    multitasking. Otherwise, the NOS couldnt
    complete many time-dependent tasks and would fail
    to complete tasks repeatedly.

18
OPERATING SYSTEM OVERVIEW
  • An important issue for Network Operating Systems
    is the ability to restrict access to network
    resources. This is called network security.
  • It provides the means to control which resources
    users can access, the extent of that access, and
    how many users can access that resource
    simultaneously at any given time. This control
    provides privacy and protection, and maintains an
    efficient networking environment.

19
OPERATING SYSTEM OVERVIEW
  • In addition to providing control of network
    resources, a NOS does the following
  •
  • - Provides logon authentication for users
  • - Manages users and groups
  • - Stores management, control, and auditing tools
    for network administration
  • - Provides fault tolerance for protection of
    network integrity

20
OPERATING SYSTEM OVERVIEW
  • System-wide services are the main facility a
    network operating system provides. These services
    come in many flavors and types.
  • Services are functions provided by the operating
    system and forms a backbone used by those
    applications, which need to interact beyond the
    simplistic boundaries imposed by the process
    concept.

21
OPERATING SYSTEM OVERVIEW
  • A service is provided by a server and accessed
    by clients. A server is a process or task that
    continuously monitors incoming service requests
    (similar to telephone operators).
  • When a service request comes in, the server
    process reacts to the request, performs the task
    requested and then returns a response to the
    requestor.

22
OPERATING SYSTEM OVERVIEW
  • Often, one or more such server processes run on
    a computer and the computer is called a server.
    However, a server process does not have to run on
    a server and the two terms are often, confusingly
    used interchangeably.

23
OPERATING SYSTEM OVERVIEW
  • Network operating systems do provide a set of
    static, predefined services, or system calls like
    the regular operating system, but in addition
    provides a much larger, richer set of dynamically
    creatable and configurable services.

24
OPERATING SYSTEM OVERVIEW
  • Any process making a request to a server process
    is called a client. A client makes a request by
    sending a message to a server containing details
    of the request and awaiting a response.
  • For each server, there is a well-defined
    protocol defining the requests that can be made
    to that server and the responses that are
    expected. In addition, any process can make a
    request that is anyone can become a client, even
    temporarily.

25
OPERATING SYSTEM OVERVIEW
  • Services provided by a network operating system
    include file service, name service, object
    service, time service, memory service and so on.

26
OPERATING SYSTEM OVERVIEW
  • The following is a listing of the more common
    operating systems that have been used in the past
    along with the more recent models

27
OPERATING SYSTEM OVERVIEW
  • DOS
  • 16-bit operating system, originally single-user,
    single task, limited ability to share resources
    across machines.
  • Version 3.1 introduced some multi-user
    functions, thus, a network operating system (NOS)
    could access DOS functions like file management
    and record-blocking.

28
OPERATING SYSTEM OVERVIEW
  • OS/2
  • Originally developed by IBM and Microsoft.
  • 32-bit operating system.
  • True multitasking.
  • OS/2 Warp Connect includes networking
    capabilities.

29
OPERATING SYSTEM OVERVIEW
  • Windows for Workgroups 3.11
  • Operating environment (not an operating system)
    working with DOS.
  • E-mail.
  • Scheduling.
  • Peer-to-peer networking.
  • Easy to attach to Novell Netware or LAN Manager.

30
OPERATING SYSTEM OVERVIEW
  • Windows 98
  • Designed to run 16-bit and 32-bit applications.
  • True multitasking.
  • Built-in TCP/IP and PPP.
  • Users who do not need the heavy duty features
    and requirements of NT.
  • plug and play concept to allow users to add
    peripheral devices.

31
OPERATING SYSTEM OVERVIEW
  • Windows NT (New Technology)
  • 32-bit operating system designed to support
    client operations in a distributed environment.
  • Built-in support for TCP/IP and SNMP network
    management.
  • Built-in file-sharing and printer sharing
    capabilities.
  • APIs (application program interface) and RPCs
    (remote procedure call) for transparent
    interfacing to distributed applications.

32
OPERATING SYSTEM OVERVIEW
  • Windows 2000 Advanced Server
  • Easy to integrate with Windows running on
    desktop PCs.
  • Strong tools like Visual Basic, Visual C, OLE.
  • Offers remote access for up to 64 incoming
    ports.
  • Runs on different processor architectures.
  • Limitations in terms of scalability.

33
OPERATING SYSTEM OVERVIEW
  • Novell NetWare
  • Novell Directory Services (NDS)
  • Global, hierarchical, object-oriented naming
    service that allows replication and distribution.
  • Enhanced security.
  • File compression and data migration.

34
OPERATING SYSTEM OVERVIEW
  • Novell Netware (cont..)
  • Its own proprietary nonstandard, non layered set
    of network protocols.
  • NLMs (Netware Loadable Modules) can be added to
    enhance network services.
  • Fast for transaction processing.

35
OPERATING SYSTEM OVERVIEW
  • UNIX
  • Supports multiple users, multiple tasks, open
    architecture, multiple platforms.
  • TCP/IP is its internet suite of protocols.
  • Choice for LAN servers running large databases
    and other enterprise-scale jobs.
Write a Comment
User Comments (0)
About PowerShow.com
