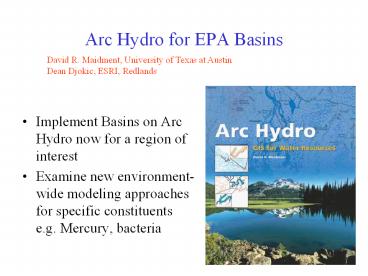

Arc Hydro for EPA Basins

1
Arc Hydro for EPA Basins
David R. Maidment, University of Texas at
Austin Dean Djokic, ESRI, Redlands

• Implement Basins on Arc Hydro now for a region of
  interest
• Examine new environment-wide modeling approaches
  for specific constituents e.g. Mercury, bacteria

2
Hydrologic Information System
Arc Hydro Geodatabase
3
Arc Hydro Extension for EPA Basins

• Arc Basins
• Builds on core Arc Hydro landscape representation
• Provides additional feature datasets and tables
  to store Basins data

Arc Hydro Feature classes
Basins feature classes
4
Arc Basins as one geodatabase
5
Arc Basins as two related databases
Connect these two databases using relationships
Geodatabase stores geographic feature classes
Relational database stores purely tabular
information
6
National Water Information System
Web access to USGS water resources data in real
time
7
(No Transcript)
8
Arc Hydro Toolset Ver 1.0
Provides tools for processing raster and vector
data and populating the attributes of the Arc
Hydro data model
9
Arc Hydro USA

• Arc Hydro Framework dataset for USA at 1500,000
  scale
• Built from USGS and National Weather Service data
• HydroPoints are active USGS stream gaging stations

10
(No Transcript)
11
ArcGIS Hydro Data Model
12
Streams Drainage Areas Hydrography Channels
Terrain Surfaces Rainfall Response Digital
Orthophotos
Thematic Layers supporting the Arc Hydro data
model (from Michael Zeiler Modeling Our World
Volume 2)
13
Data Model Based on Behavior
Follow a drop of water from where it falls on the
land, to the stream, and all the way to the ocean.
14
Integrating Data Inventory using a Behavioral
Model
Relationships between objects linked by tracing
path of water movement
15
(No Transcript)
16
(No Transcript)
17
Hydrologic Information System
Hydrologic Analysis and Modeling
Arc Hydro Geodatabase
18
(No Transcript)
19
Other Arc Hydro Implementations

• USGS
• Stream Stats
• HEC
• GeoRAS
• GeoHMS

Streamstats
20
Conclusions

• Chief innovations of ArcGIS
• Network, geodatabase, object modeling
• Chief innovations of ArcHydro so far
• HydroNetwork
• New raster tools and methodology
• HydroID relationships
• Integration of Time and Space in a single system
• Geodatabase convenient for working with large
  vector datasets (use larger packaging units than
  8-digit HUCs)

21
Arc Hydro for EPA Basins
David R. Maidment, University of Texas at
Austin Dean Djokic, ESRI, Redlands

• Implement Basins on Arc Hydro now for a region of
  interest
• Examine new environment-wide modeling approaches
  for specific constituents e.g. Mercury, bacteria
