Mesozoic

1

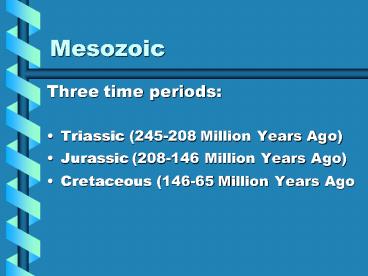

Mesozoic

• Three time periods
• Triassic (245-208 Million Years Ago)
• Jurassic (208-146 Million Years Ago)
• Cretaceous (146-65 Million Years Ago

2
Paleo-Meso Timeline

• Land Plants - Ordovician
• Air-breathing arthropods - Silurian
• Amphibians - Devonian, abundant in early
  Carboniferous
• Reptiles - Later Carboniferous

3
Paleo-Meso Timeline

• Permo-Triassic - huge extinction
• Sea level fall
• Continents locked up in Pangea in the Southern
  Hemisphere
• Ice caps cover Antarctica, parts of Australia,
  Southern parts of Africa and South America
  (Gondwanaland)

4
Paleo-Meso Timeline

• Dinosaurs - Triassic
• Mammals - Triassic
• Birds - Jurassic
• Ammonites become dominant - Jurassic
• Ammonites, Dinosaurs rule all - Cretaceous
• Flowering plants - Cretaceous

5
Paleo-Meso Timeline

• Tectonics
• http//www.ucmp.berkeley.edu/geology/

6
Big changes in the MesozoicPlants

• Early Mesozoic dominated by ferns, cycads,
  ginkgophytes, and others not widely seen today.
• Modern gymnosperms (e.g. conifers), first
  appeared in their current recognizable forms in
  the early Triassic.
• By the middle of the Cretaceous, the earliest
  angiosperms (flowering plants) had appeared and
  began to diversify - became dominant.

7
Mesozoic Developments

• After the Triassic its warmer
• Tethys sea is opening
• Marine plants
• Dinoflagellates flourish (were around in Silurian
  and Permian, but didn't do much)
• Mineralized phytoplankton (Coccolithophorids)
  begin to bloom - great fossil record

8
Mesozoic Developments

• Land Plants
• Carboniferous-Permian - big spore-bearing plants
• Mesozoic - pollinating
• Early Mesozoic -Cycads,.Ginkgoes, Seed Ferns,
  Conifers - seeds, but no flowers
• Cretaceous - Flowering plants (angiosperms) with
  enclosed seeds

9
Mesozoic Developments

• Land Invertebrates
• Shelled - some rare air-breathing snails,
  freshwater snails and clams
• Arthropods
• Carboniferous-Permian had spiders, millipedes,
  scorpions, centipedes
• Added in Mesozoic are flies, mosquitoes, earwigs,
  wasps, bees, ants and beetles
• Not yet - Butterflies, moths, termites, fleas

10
Mesozoic Developments

• Marine Invertebrates
• Big Permian extinction
• Slower rebound - not until middle Triassic
• Pelecypods expanded, eventually outdid
  brachiopods - especially oysters
• Rudists - horn-shaped shells, formed reefs just
  like corals did

11
Mesozoic Developments

• Marine Invertebrates
• Corals - same as today, with same requirements
  (zooxanthellae)
• Echinoids
• Ammonoids - good index fossils because of suturing

12
End of Mesozoic

• Cretaceous-Tertiary boundary marks a mass
  extinction
• 1/4 of all extant families died out completely
• What evidence is there for a cause?
• Iridium layer
• Shocked quartz
• Glassy spherules - tektites
• Soot from burning

13
End of Mesozoic

• Most accepted hypothesis
• Bolide impact - a big object from space smashes
  into the Earth, causing mass destruction
• Chixulub - big crater in the Yucutan peninsula of
  Mexico - appears to be approximately the right age

14
End of Mesozoic

• Alternate hypotheses
• Rain of comets -
• Planet X dislodges comets in Oort cloud
• Periodicity of extinctions about 26 million years
• No evidence
• Cosmic rays from a nearby supernova
• Doesnt explain impact-related features
• Why extinctions in ocean, then?

15
End of Mesozoic

• Alternate hypotheses -
• Terrestrial explanations
• Sea level drop - less plate activity
• Volcanoes
• How instantaneous was it?
• Not all extinctions happened at end of Cretaceous

16
Dinosaurs - Fact and Fiction
17
Dinosaurs

• Major classifications hinge on the number of
  holes in the temple area of the skull (behind the
  eyes)
• Diapsida - two openings - includes dinosaurs,
  flying reptiles, and all living reptiles except
  turtles
• Synapsida/Euryapsida - one opening - synapsids
  low opening, euryapsids high opening
• Anapsida - no openings

18
Dinosaurs

• Term coined by Sir Richard Owen in 1842 - means
  terrible lizard
• He only knew of three types Megalosaurus,
  Iguanodon, and Hylaeosaurus
• Since then there have been hundreds of species
  discovered and described, so dinosaur is a very
  broad term

19
Whats not a dinosaur?

• Dimetrodon
• Dimetrodon is a synapsid - not a reptile or a
  mammal but earlier than both

20
Whats not a dinosaur?

• Pterosaurs
• These guys are definitely reptiles, but not as
  closely related to dinosaurs
• Not ancestral to birds or bats - this is a case
  of convergent evolution

21
Whats not a dinosaur?

• Pterosaurs
• These guys are definitely reptiles and diapsids,
  but are not true dinosaurs
• Not ancestral to birds or bats - this is a case
  of convergent evolution

22
Pterosaurs

• As pterosaurs get developed, they evolve into
  more flight-adapted structures

23
Pterosaurs

• Big eyes, large brain, probably endothermic (wing
  structures show thermoregulation)

24
Pterosaurs

• How did they get to fly? How did birds get to
  fly?
• Two ideas -
• Ground up hypothesis - organisms started on the
  ground, began gliding behavior
• Arboreal hypothesis - organisms started in trees,
  developed gliding to accommodate transport (e.g.
  flying squirrel)
• Pterosaurs look like ground-up types from fossil
  record

25
Triassic reptiles

• Many new reptile groups show up in the Triassic,
  including turtles and early dinosaurs
• One main group was the archosaurs - includes
  crocodiles, pterosaurs, dinosaurs, and thecodonts
  (dinosaur ancestors)

26
Thecodonts

• Small, agile, slight reptiles
• Many were bipedal - what are the advantages of
  bipedalism?
• Some revert to four-legged walking - again
  convergent evolution toward crocodiles

27
Dinosaurs

• Supplemental reading (and source of most of these
  cool pictures)
• http//www.ucmp.berkeley.edu/mesozoic/mesozoic.htm
  l

28
Dinosaurs

• Two groups-
• Saurischia (lizard-hipped)
• Ornithischia (bird-hipped)
• First ones are about 225 Ma - Triassic
• Some saurischians are Theropods - big,
  carnivorous dinosaurs including Allosaurus and
  Tyrannosaurus.

29
Dinosaurs

• Another saurischian group is the Sauropods, large
  herbivores.
• Earliest were bipedal, but later they got huge -
  e.g. Brontosaurus (now called Apatosaurus),
  Supersaurus, Ultrasaurus (over 80 tons, 35 meters
  long). Diplodocus and Seismosaurus
• Can they live on land or in water?
• Sauropods first arrive in early Jurassic

30
Dinosaur Groups - Ornithischians
31
Dinosaur Groups - Saurischians
32
Dinosaur Groups - Ceratopsians
Triceratops
33
Ceratopsians

• Ornithischians
• Emerged at start of Cretaceous
• Some reached 5-6 tons in weight, SUV in size
• Probably traveled in herds - good way to avoid
  extensive predation by saurischians

34
Dinosaur Groups - Thyreophora

• Armored ornithischians - began at start of
  Jurassic became common and developed two best
  known forms by end of Jurassic

35
Dinosaur Groups - Theropods
Ceratosaurus - Ceratosaurians were the earliest
Theropods (from late Triassic), although this one
is Jurassic Big horns and teeth, curved neck
36
Dinosaur Groups - Theropods
Carnosaur? Coelurosaur? 15 feet tall, 40 feet
long, 6 tons in weight Big nose, thighs and
calves adapted for long walks Small eyes and
forelimbs - was this a scavenger or hunter?
37
Dinosaur Groups - Sauropods
Late Triassic Long necks, small brains Plant
eaters Had elevated nostrils
This ones Diplodocus
38
Dinosaur Groups - Hadrosaurs
Duck-billed plant eater - legs indicate it was a
fast runner (similar in size and shape to modern
runners like horses and ostriches). Crest on
head may have been breathing related or for
making sounds.
39
Dinosaur speeds

• Normally recreated from footprint sets, looking
  and distance between prints and depth and shape
  of print
• Fastest found so far was probably about 25 mph
  for a medium-sized theropod
• Very difficult to tell how fast things were

40
Dinosaurs and Birds

• Birds are technically dinosaurs
• Remember, pterosaurs werent technically
  dinosaurs
• If birds are dinosaurs, and dinosaurs are
  reptiles, then
• Yes, birds are technically reptiles

41
Birds and Dinosaurs

• What group of dinosaurs is most bird-like?
• Theropods - small, carnivorous, fast running (but
  these are saurischians, not ornithischians yes,
  the hips are wrong)
• Within the theropods, the coelurosaurs are among
  the most bird-like
• Coelurosaurs have long arms and big hinged
  ankles. This reduces rotation of the ankle and
  helps running.

42
Coelurosaurs
Deinonychus (terrible claw) 10 feet long, 180
lbs, striped (well, could be)
43
Coelurosaurs

• Coelurosaurs are a hotly-debated group whose
  membership is not always clear.
• There are many closely related species, but many
  lack key characteristics for coelurosaurs

44
Bird ancestors

• Within the Coelurosaurs, there are two
  sister-groups, the Dromaeosauridae (raptors) and
  Aves (birds)
• Both were thought to have a common ancestor
  (possibly a Dromaeosaurid) sometime in the
  Jurassic

45
Dromaeosaurs (the Raptors)
46
Dromaeosaurs

• Ranged from small (dog-sized) to big
  (limousine-sized)
• Probably hunted in packs (lots of fossils found
  near big prey fossils)
• Lots of claws and teeth, including huge talon on
  one digit of forelimbs
• Stiff, muscular tail for good balance - means
  definitely two-legged

47
Dromaeosaurs

• Probably not too fast (they have big thigh bones)
  but may have been very good leapers with the
  ability to attack with all four legs
• Velociraptors - found in a few places from late
  Cretaceous - not as big as in Jurassic Park, but
  other raptors were possibly as big

48
Ornithomimidae - bird mimicsOstrich-like
dinosaurs
49
True Birds (Aves)

• Archaeopteryx long thought to be a bird ancestor
• Still hotly debated
• Ground-Up vs. Trees-Down models of flight
• This one is Trees-Down

50
Archaeopteryx
This one is a Ground-Up representation - they
could have started flight with long
leaps Archaeopteryx is somewhat advanced, and
could have made some longish flights, but likely
not really well or all day.
51
Archaeopteryx with no artists interpretation -
(note the feathers!)
52
Feathers

• Feathers are obviously good for flight
• Feathers are also good insulators
• Its not clear which property was the impetus for
  their evolution - Archaeopteryx might well have
  just been trying to keep warm.

53
Timing of Birds

• Birds dont fossilize well - they have weak,
  light bones that are often hollow.
• From 1990-1995, the number of known bird fossils
  doubled.
• When did they start?
• Archaeopteryx is from Late Jurassic
• There were lots of birds, flying and flightless,
  by the end of the Cretaceous, including members
  of modern groups

54
Timing of Birds

• Lots of bird diversification in the Cenozoic,
  although most fossils are incomplete.
• By the Early Oligocene (35 Ma), most modern bird
  groups had arrived.
• There were unusual forms, e.g. phororhachids from
  South America - present for much of Cenozoic

55
Timing of Birds

• Controversy -Protoavis from Late Triassic
  possibly chimeric
• This would move back bird evolution about 80
  million years to the earlier parts of the
  Mesozoic, and mean they evolved from thecodonts
• Not everybody thinks this is a real bird,
  although its discoverer (Chaterjee) claims it is
  closer to modern birds than Archaeopteryx is
• Birds have lots of fans - creates interest

56
Protoavis?
57
Protoavis?
58
Warm blooded vs. Cold blooded Dinosaurs...

• Definitions
• Endothermic creates heat from inside
• Ectothermic absorbs heat from outside
• Homeothermic maintains a constant internal
  temperature
• Poikilothermic temperature fluctuates depending
  on outside conditions

59
Evidence for endothermic dinosaurs

• Fast things need to have heat available. Many
  dinosaurs appear to be fast-moving.
• Today, endotherms normally outcompete ectotherms.
  Since dinosaurs coexisted with known endotherms,
  they must also have been endothermic.
• Dinosaurs were upright walkers with legs below
  their bodies - typical of endotherms

60
Evidence for endothermic dinosaurs

• Dinosaurs had big brains, and endotherms tend to
  have big brains (but not always, and brain size
  is correlated with other things, too).
• Ectotherms arent usually found at high
  latitudes, and dinosaurs were (but it was warmer)
• Endotherm predator/prey ratio is usually low, and
  dinosaur ratios match mammals

61
Evidence for endothermic dinosaurs

• Dinosaurs were big and had large, complex hearts.
  Complex heart matches modern endotherms.
• Dinosaurs were ancestral to birds, and birds are
  endotherms.
• Endotherms tend to grow fast, and dinosaurs were
  big (but who knows how long they lived?
• Dinosaur bone structure matches modern endotherms
  better than modern ectotherms

62
Evidence for ectothermic dinosaurs

• Dinosaurs were huge - could have been effectively
  homeothermic w/o endothermy
• Dinosaurs were huge - couldnt possibly have been
  endothermic because theyd burn up.
• Mesozoic was warm - dinosaurs didnt need to be
  endothermic
• Ectotherms tend to be scaly, and dinosaurs were
  (but so are birds!)

63
Evidence for ectothermic dinosaurs

• Some dinosaurs show lines of arrested growth
  (LAGs) in bones. Modern endotherms dont have
  LAGs (unless stressed), but modern ectotherms do.
• Dinosaurs didnt have respiratory turbinates -
  bony structures at front of nasal cavity which
  are covered in mucus, which modern endotherms
  have.

64
Five current thermal hypotheses (from UCMP)

• Dinosaurs were complete endotherms, just like
  birds, their descendants.
• Some or all dinosaurs had some intermediate type
  of physiology between endothermy and ectothermy.
• We know too little about dinosaurs to hazard a
  guess at what their physiology was like.
• Dinosaurs were mostly inertial homeotherms they
  were ectothermic but maintained a constant body
  temperature by growing large. Small dinosaurs
  were typical ectotherms, maybe with a slightly
  elevated metabolic rate.
• All dinosaurs were simple ectotherms, enjoying
  the warm Mesozoic climate. But that's okay many
  ectotherms are quite active, so dinosaurs could
  be active, too.
