IPv6 and DNS

1

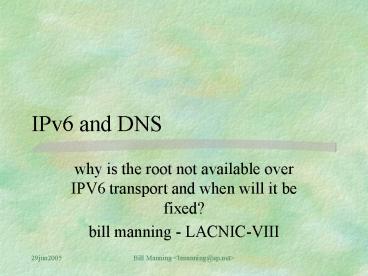

IPv6 and DNS

• why is the root not available over IPV6 transport
  and when will it be fixed?
• bill manning - LACNIC-VIII

2
Before a Priming Query

• it is proposed to augment the existing root
  servers with IPv6 capability in their transport
  and in their DNS server code. Once these
  capabilities are in place, it is expected to
  formally announce the availability of the root
  zone over both IP4 and IPv6 transport and using
  both A and AAAA resource records.
• seven of the 13 root servers have IPv6 transport
  capability and all are running IPv6 capable code.
  so what's the problem?
• Issues surrounding why there is no IPv6 native
  access to root nameservers YET.

3
DNS Resolution

Query girigiri.gbrmpa.gov.au
name server
Refer to au NS
IMR
A hints
Query girigiri.gbrmpa.gov.au
au name server
Refer to gov.au NS
au
nz
sg
Query girigiri.gbrmpa.gov.au
gov.au name server
gov
edu
Refer to gbrmpa.gov.au NS
Query girigiri.gbrmpa.gov.au
Query
Reply
gbrmpa.gov.au name server
Address of girigiri.gbrmpa.gov.au
sa
ips
gbrmpa
resolver
4
The Priming Query

• The first question asked by an IMR to the root
  servers
• Based on the beltsuspenders data - in the case
  of UNIX, the hints or root.cache file.
• What is in this file anyway?
• glue - a list of server names and the
  associated IP addresses. Today only IPv4

5
Root Hints
formerly NS.INTERNIC.NET .
3600000 IN NS A.ROOT-SERVERS.NET. A.ROOT-
SERVERS.NET. 3600000 A
198.41.0.4 formerly NS1.ISI.EDU .
3600000 NS
B.ROOT-SERVERS.NET. B.ROOT-SERVERS.NET.
3600000 A 192.228.79.201
6
What will happen when IPv6 data is added to this
file?

• the problem lies not with the augmented root
  servers or the zone file, but with the systems
  that generate priming queries.

. 3600000 NS
Z.IP6.INT. Z.IP6.INT. 3600000 A
198.32.2.66 Z.IP6.INT. 3600000 AAAA
3ffe01c620242 . 3600000
NS Y.IP6.INT. Y.IP6.INT. 3600000
AAAA 3ffe50e1
7
The agony of choice

• How does the IMR select which protocol to use
  first?
• Some use IPv4 first, then IPv6, some use IPv6
  first, then IPv4.
• How are mapped IPv4 addresses interpreted?
• Does the IMR DNS software support IPv6?
• with over 146 variants, its tough to tell.
• Some audits indicate BIND is/remains the
  predominant version for authoritative servers
  What about the IMRs?

8
How many IMRs are there and what are they running?

• IMRs are not listed in any configuration file.
• Need to audit.
• Query logs were taken from B, H, and J root
  servers.
• logs were 4, 1, and 24 hours
• Sort out the priming queries (about 3 of total
  traffic, but that is another talk)
• Fingerprint the sorted servers to identify DNS
  variant.

9
IMR distribution

• H - 243 IMRs, 14 variants, 123 running non-AAAA
  compliant
• J - 65698 IMRs, 141 variants, 22300 running
  non-AAAA compliant
• B - 21823 IMRs, 51 variants, 10556 running
  non-AAAA compliant
• 32,979 servers of 87,764 or 32 of IMRs appear
  unable to properly process AAAA addresses

10
DNS Resolution

Query girigiri.gbrmpa.gov.au
name server
Refer to au NS
IMR
AAAA/A hints
Query girigiri.gbrmpa.gov.au
au name server
Refer to gov.au NS
au
nz
sg
Query girigiri.gbrmpa.gov.au
gov.au name server
gov
edu
Refer to gbrmpa.gov.au NS
Query girigiri.gbrmpa.gov.au
Query
Reply
gbrmpa.gov.au name server
Address of girigiri.gbrmpa.gov.au
sa
ips
gbrmpa
resolver
11
Known evolution for BIND

• pre 9.2.0a1 -
• bug 628 - If the root hints contained only AAAA
  addresses, named would be unable to perform
  resolution.
• bug 799 - The ADB didn't find AAAA glue in a
  zone unless A6 glue was also present
• pre 8.4.3 -
• bug 1617 - don't pre-fetch missing additional
  address records if we have one of A/AAAA
• bug 1613 - don't lookup A/AAAA records for
  nameservers if we don't support the address at
  the transport level

12
For these systems with old code..

• Will an IMR re-prime if the first address it
  sees is a AAAA record?
• Early testing indicates that for two tested
  versions of BIND, the answer is NO. These tested
  versions comprise 2.3 of the total tested IMR
  base
• e.g. the nameserver STOPS and needs to be
  restarted (and hope that a AAAA record does not
  show up)

13
What we have not tested

• IMR OS capabilities
• Most DNS variants
• Extensive searches for more comprehensive IMR
  lists

14
Questions?

• Presuming the 32 is a valid number, is it safe
  to recommend to RSSAC ICANN to add IPv6
  addresses to the root servers and make this
  publicly available?
• What is the IMR client base? A given IMR may be
  the only recursive view into the DNS for
  thousands of endsystems.
• Other issues w/ old BIND (and by extrapoltation -
  other DNS code?) http//www.isc.org/sw/bind/bin
  d4.php
• Upgrading - even in the face of known security
  lapses - is nearly impossible to force.
• What do you think?
• Carrot? - delay native IPv6 - maintain
  stability
• Stick? - add native IPv6 - force software
  upgrades

15
Thank You
