On evaluating GPFS

1

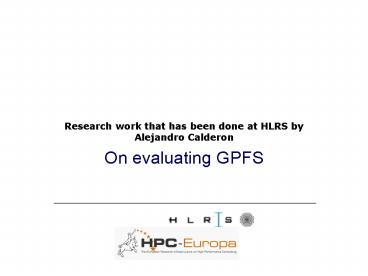

On evaluating GPFS
Research work that has been done at HLRS
by Alejandro Calderon
2
On evaluating GPFS

• Short description
• Metadata evaluation
• fdtree
• Bandwidth evaluation
• Bonnie
• Iozone
• IODD
• IOP

3
GPFS description http//www.ncsa.uiuc.edu/UserInf
o/Data/filesystems/index.html

• General Parallel File System (GPFS) is a parallel
  file system package developed by IBM.
• History
• Originally developed for IBM's AIX operating
  system then ported to Linux Systems.
• Features
• Appears to work just like a traditional UNIX
  file system from the user application level.
• Provides additional functionality and enhanced
  performance when accessed via parallel
  interfaces such as MPI-I/O.
• High performance is obtained by GPFS by striping
  data across multiple nodes and disks.
• Striping is performed automatically at the block
  level. Therefore, all files (larger than the
  designated block size) will be striped.
• Can be deployed in NSD or SAN configurations.
• Clusters hosting a GPFS file system can allow
  other clusters at different geographical
  locations to mount that file system.

4
GPFS (Simple NSD Configuration)
5
GPFS evaluation (metadata)

• fdtree
• Used for testing the metadata performance of a
  file system
• Create several directories and files, in several
  levels
• Used on
• Computers
• noco-xyz
• Storage systems
• Local, GPFS

6
fdtree local,NFS,GPFS
7
fdtree on GPFS (Scenario 1)ssh x,...
fdtree.bash -f 3 -d 5 -o /gpfs...
nodex

P1
Pm

• Scenario 1
• several nodes,
• several process per node,
• different subtrees,
• many small files

8
fdtree on GPFS (scenario 1)
9
fdtree on GPFS (Scenario 2)ssh x,...
fdtree.bash -l 1 -d 1 -f 1000 -s 500 -o /gpfs...
nodex

• Scenario 2
• several nodes,
• one process per node,
• same subtree,
• many small files

P1
Px

10
fdtree on GPFS (scenario 2)
11
Metadata cache on GPFS client

• Working in a GPFS directory with 894 entries
• ls las need to get each file attribute from GPFS
  metadata server
• In a couple of seconds, the contents of the cache
  seams disappear

• hpc13782 noco186.nec 304 time ls -als wc -l
• 894
• real 0m0.466s
• user 0m0.010s
• sys 0m0.052s

hpc13782 noco186.nec 306 time ls -als wc
-l 894 real 0m0.033s user 0m0.009s sys
0m0.025s
hpc13782 noco186.nec 305 time ls -als wc
-l 894 real 0m0.222s user 0m0.011s sys
0m0.064s
hpc13782 noco186.nec 307 time ls -als wc
-l 894 real 0m0.034s user 0m0.010s sys
0m0.024s
12
fdtree results

• Main conclusions
• Contention at directory level
• If two o more process from a parallel application
  need to write data, please be sure each one use
  different subdirectories from GPFS workspace
• Better results than NFS (but lower that the local
  file system)

13
GPFS performance (bandwidth)

• Bonnie
• Read and write a 2 GB file
• Write, rewrite and read
• Used on
• Computers
• Cacau1
• Noco075
• Storage systems
• GPFS

14
Bonnie on GPFS write re-write
GPFS over NFS
15
Bonnie on GPFS read
GPFS over NFS
16
GPFS performance (bandwidth)

• Iozone
• Write and read with several file size and access
  size
• Write and read bandwidth
• Used on
• Computers
• Noco075
• Storage systems
• GPFS

17
Iozone on GPFS write
18
Iozone on GPFS read
19
GPFS evaluation (bandwidth)
next -gt

• IODD
• Evaluation of disk performance by using several
  nodes
• disk and networking
• A dd-like command that can be run from MPI
• Used on
• 2, and 4 nodes, 4, 8, 16, and 32 process (1,
  2, 3, and 4 per node) that write a file of 1,
  2, 4, 8, 16, and 32 GB
• By using both, POSIX interface and MPI-IO
  interface

20
How IODD works
nodex
P1
P2

Pm

a b .. n
a b .. n
a b .. n

• nodex 2, 4 nodes
• processm 4, 8, 16, and 32 process (1, 2, 3, 4
  per node)
• file sizen 1, 2, 4, 8, 16 and 32 GB

21
IODD on 2 nodes MPI-IO
22
IODD on 4 nodes MPI-IO
23
Differences by using different APIs
GPFS (2 nodes, MPI-IO)
GPFS (2 nodes, POSIX)
24
IODD on 2 GB MPI-IO, directory
25
IODD on 2 GB MPI-IO, ? directory
26
IODD results

• Main conclusions
• The bandwidth decrease with the number of
  processes per node
• Beware of multithread application with
  medium-high I/O bandwidth requirements for each
  thread
• It is very important to use MPI-IO because this
  API let users get more bandwidth
• The bandwidth decrease with more than 4 nodes too
• With large files, the metadata management seams
  not to be the main bottleneck

27
GPFS evaluation (bandwidth)

• IOP
• Get the bandwidth obtained by writing and reading
  in parallel from several processes
• The file size is divided between the process
  number so each process work in an independent
  part of the file
• Used on
• GPFS through MPI-IO (ROMIO on Open MPI)
• Two nodes writing a 2 GB files in parallel
• On independent files (non-shared)
• On the same file (shared)

28
How IOP works
File per process (non-shared)
Segmented access (shared)

P1
P2

P1
P2
Pm
Pm

a b .. x a b .. x a b .. x
a a ..
b b ..
x x ..
n
n

• 2 nodes
• m 2 process (1 per node)
• n 2 GB file size

29
IOP Differences by using shared/non-shared
30
IOP Differences by using shared/non-shared
31
GPFS writing in non-shared files
GPFS writing in a
shared file
32
GPFS writing in shared filethe 128 KB magic
number
33
IOP results

• Main conclusions
• If several process try to write to the same file
  but on independent areas then the performance
  decrease
• With several independent files results are
  similar on several tests, but with shared file
  are more irregular
• Appears a magic number 128 KBSeams that at that
  point the internal algorithm changes and it
  increases the bandwidth
