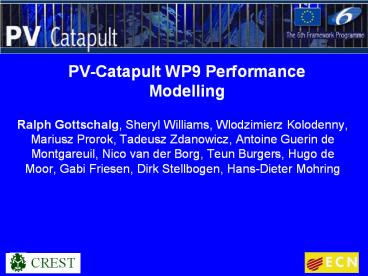

PVCatapult WP9 Performance Modelling

1
PV-Catapult WP9 Performance Modelling

• Ralph Gottschalg, Sheryl Williams, Wlodzimierz
  Kolodenny, Mariusz Prorok, Tadeusz Zdanowicz,
  Antoine Guerin de Montgareuil, Nico van der Borg,
  Teun Burgers, Hugo de Moor, Gabi Friesen, Dirk
  Stellbogen, Hans-Dieter Mohring

2
Outline

• Overview of Aims and Objectives
• Approach
• Review of modelling methodologies evaluated in
  the RR
• Results of RR1
• Results of RR2
• Conclusions

3
Aim of this WP

• Plan and execute one modelling round robin (RR)
  test
• Evaluate State of the Art of European
  Photovoltaic Module Modelling
• Identify measurement accuracy of European
  measurement methodologies limited to modules
• Demonstrate that a 5 accuracy is possible
• Performance also added
• Identify pitfalls for future RR
• Make available knowledge and infrastructure to
  Performance

4
Partners

• Modelling Partners
• CEA
• CREST
• ECN
• SUPSI
• WrUT

• Data and other input
• FhG-ISE
• JRC
• TTU
• TÜV
• ZSW

5
Timeline

• Start of work November 2004
• Questionnaire of current methods sent out January
  2005
• First RR completed June 2005
• Re-Modelling of same site/module/year (ideal
  case)
• Modelling same module at same site, different
  year
• Second RR completed January 2006
• Predicting same site, different module
• Predicting different module, different site
• Predicting same module, different site
• Dissemination/discussion meeting for future work
  January 2006

6
European Performance Models
7
1st Round Robin

• How different are the different sites
• How accurate are modelling approaches in ideal or
  close to ideal conditions

8
Sites for testing
9
Effect of Data Treatment Variation amongst the
Different Modelling Groups
10
Comparison of Energy Yield (measured vs modelled)
Year 1
11
Comparison of Energy Yield (measured vs modelled)
Year 2
12
Lessons Learnt RR1

• ORGANIZATIONAL
• Dataset format
• Database Structure
• Data filter and handling
• Not as conclusive as wanted because groups
  dropped out (budget cuts)
• Late start but on time to complete all tasks

• SCIENTIFIC
• Temporal predict was successful, virtually all
  lt6
• Different sites result in different accuracy
• Surprisingly small problems for double junction

13
Comparison of MethodologiesZSW Dataset
Base Modules
Predicted Modules
CIS_6 CdTe_17
CIS_16 CdTe_20
Same Loc.
CIS_17 CIS_20 CdTe_1 CdTe_4
Different Loc.
14
2nd Round Robin

• How much does the module variability influence
  energy calculations
• How well can we cope with the variability in TF
  devices
• Are there site specific differences between the
  different data sets
• Test
• Same site different module
• Same module different site
• Different module, different site

15
Results of 2nd RR (ZSW Dataset)
16
Results of 2nd RR (ZSW Dataset)
17
Comparison of MethodologiesPVCatapult Meas. RR
Dataset
Predicted Modules
Base Modules
Loc.1
SolarLab
CEA
Loc.2
ECN
CREST
Loc.3
18
Comparison of MethodologiesPVCatapult Meas. RR
Dataset
19
Results of 2nd RR( PVCatapult Dataset)
Measured at ECN
20
Lessons Learnt

• Module to module production effect dominate
• Modelling based on outdoor measurements needs
  careful cleaning
• Overfiltering might result in statistically
  insignificant corrections which might introduce
  large errors
• Not detecting/cleaning outliers will result in
  deviations also introducing large errors
• Models work well for c-Si
• Accuracy not as good as desirable for thin films

21
Conclusions

• Main impact is the module-to-module variation
• Different environments are no problem if the
  module data is known accurately
• Error analysis of the measurement campaign is
  ongoing
• The work of WP9 provide a good foundation for
  further investigation of performance modelling

22
Dissemination Efforts
23
Workshop

• 35 participants
• Visitors from US Japan
• Presentation of results
• Discussion of
• Presentations in general
• Further need for research

24
Publications

• EUPVSEC-20, Barcelona
• Williams, S. R., et al. (2005) Evaluating the
  State of the Art of Photovoltaic Performance
  Modelling in Europe.
• WCPEC-3
• Zdanowicz, T. et al (2006) Photovoltaic
  Performance Measurements in Europe PV-Catapult
  Round Robin Tests
• EuroSun 2006
• Strobel, M.B. et al (2006) Measurement Accuracy
  of Energy Yield of Photovoltaic Systems

25
Publications 2

• Dresden
• Gottschalg et al (2006) Round Robin Comparison
  of European Outdoor Measurement Systems
• Gottschalg et al (2006) Variability of
  Electrical Parameters Determined by Using
  Different Solar Simulation Systems for Different
  PV Module Technologies
• Williams et al (2006) Variability of Electrical
  Parameters Determined by European Research
  Facilities for Different PV Module Technologies

26
Other Dissemination Efforts

• Expert participation in IEA-PVPS Task 2
• Expert participation in IEA TC82-WG2
• Expert participation in CENELEC TC82-WG1
• WP 8/9 asks question, IP Performance will answer
  these
