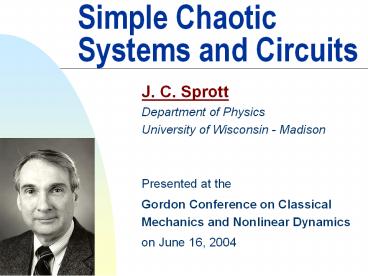

Simple Chaotic Systems and Circuits

• J. C. Sprott
• Department of Physics
• University of Wisconsin - Madison
• Presented at the
• Gordon Conference on Classical Mechanics and
  Nonlinear Dynamics
• on June 16, 2004

2
Lorenz Equations (1963)

• dx/dt Ay Ax
• dy/dt xz Bx y
• dz/dt xy Cz
• 7 terms, 2 quadratic nonlinearities, 3 parameters

3
Rössler Equations (1976)

• dx/dt y z
• dy/dt x Ay
• dz/dt B xz Cz
• 7 terms, 1 quadratic nonlinearity, 3 parameters

4
Lorenz Quote (1993)

• One other study left me with mixed feelings.
  Otto Roessler of the University of Tübingen had
  formulated a system of three differential
  equations as a model of a chemical reaction. By
  this time a number of systems of differential
  equations with chaotic solutions had been
  discovered, but I felt I still had the
  distinction of having found the simplest.
  Roessler changed things by coming along with an
  even simpler one. His record still stands.

5
Rössler Toroidal Model (1979)
Probably the simplest strange attractor of a 3-D
ODE
(1998)

• dx/dt y z
• dy/dt x
• dz/dt Ay Ay2 Bz
• 6 terms, 1 quadratic nonlinearity, 2 parameters

6
Sprott (1994)

• 14 examples with 6 terms and 1 quadratic
  nonlinearity
• 5 examples with 5 terms and 2 quadratic
  nonlinearities

J. C. Sprott, Phys. Rev. E 50, R647 (1994)
7
Gottlieb (1996)

• What is the simplest jerk function that gives
  chaos?
• Displacement x
• Velocity dx/dt
• Acceleration d2x/dt2
• Jerk d3x/dt3

8
Linz (1997)

• Lorenz and Rössler systems can be written in jerk
  form
• Jerk equations for these systems are not very
  simple
• Some of the systems found by Sprott have simple
  jerk forms

9
Sprott (1997)
Simplest Dissipative Chaotic Flow

• dx/dt y
• dy/dt z
• dz/dt az y2 x
• 5 terms, 1 quadratic nonlinearity, 1 parameter

10
Bifurcation Diagram
11
Return Map
12
Zhang and Heidel (1997)

• 3-D quadratic systems with fewer than 5 terms
  cannot be chaotic.
• They would have no adjustable parameters.

13
Linz and Sprott (1999)

• dx/dt y
• dy/dt z
• dz/dt az y x 1
• 6 terms, 1 abs nonlinearity, 2 parameters (but
  one 1)

14
General Form

• dx/dt y
• dy/dt z
• dz/dt az y G(x)
• G(x) (bx c)
• G(x) b(x2/c c)
• G(x) b max(x,0) c
• G(x) (bx c sgn(x))
• etc.

15
Universal Chaos Approximator?
16
First Circuit
17
Bifurcation Diagram for First Circuit
18
Strange Attractor for First Circuit
Calculated
Measured
19
Second Circuit
20
Chaos Circuit
21
Third Circuit
22
Fourth Circuit
D(x) min(x, 0)
23
Bifurcation Diagram for Fourth Circuit
K. Kiers, D. Schmidt, and J. C. Sprott, Am. J.
Phys. 72, 503 (2004)
24
(No Transcript)
25
References

• http//sprott.physics.wisc.edu/
  lectures/gordon04.ppt (this talk)
• http//www.css.tayloru.edu/dsimons/ (circuit 4)
• sprott_at_physics.wisc.edu (to contact me)
