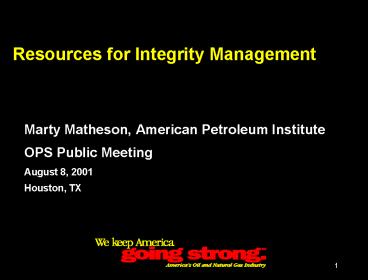

Resources for Integrity Management

1
Resources for Integrity Management

• Marty Matheson, American Petroleum Institute
• OPS Public Meeting
• August 8, 2001
• Houston, TX

2
OPS Integrity Management Goals

• Accelerate integrity assessment of pipelines in
  high consequence areas
• Improve integrity management systems within
  companies
• Improve the governments role in reviewing
  adequacy of integrity plans
• Provide increased public assurance

3
Our vision is an oil pipeline industry that --

• conducts operations safely and with respect for
  the environment
• respects the privilege to operate granted to it
  by the public and
• provides reliable transportation of the crude oil
  and refined products upon which America and all
  Americans rely.

4
The History Improving Record, 1968-2000
First six years, Annl Avg 359 spills 368,000
barrels Last six years, Annl Avg 169 spills
146,000 barrels
Source RSPA 7000-1
5
Resources on the Industry Safety Record

• The U.S. Oil Pipeline Industrys Safety
  Performance (Trench report), 1999 (with update
  to be issued in the near future)
• API Publication 1158, Analysis of DOT Reportable
  Incidents for Hazardous Liquids Pipelines
  (1986-1996)
• Annual review of pipeline accidents by ASME B31.4
  Committee

6
ASME CausesVolumes Lost, 1994-99
3rd Party
Corrosion
Equipment
Miscellaneous
Weather
Incorrect Operation
Prev. Damaged Pipe
Unknown
Manufacturer
Constr/Repair
Vandalism
Line Pipe Tank/Pump
37 4
17 18
13 38
16 3
1 26
6 9
5 0
4 -
2 2
1 -
100 100
7 -
Based on re-examination of OPS data by B31.4
Committee of the American Society of Mechanical
Engineers. Tank/Pump tank farms, pumping
stations, all other system parts
7
An Upcoming Report --

• Oil Pipeline Characteristics and Risk Factors
  Illustrations from the Decade of Construction
• Authors
• Cheryl Trench, Allegro Energy Group
• John Kiefner, Kiefner Associates
• Analyses of data from the Pipeline Performance
  Tracking Initiative

8
Pipeline Performance Tracking

• Incidents down to 5 gallons
• 20 cause categories based on ASME
• Detail, detail, detail
• Over 140,000 miles of pipe or more than 90 of
  OPS mileage
• Infrastructure information
• Miles by diameter
• Miles by decade of construction, etc.

9
Oil Pipeline Characteristics and Risk Factors

• History of pipe and pipeline technology
• Data on pipeline mileage by decade of
  construction
• Analyses of OPS incident data (1986-1999) based
  on the historical perspective of technology and
  practices and the decade of construction
• Findings and recommendations for use in risk
  analysis

10
Pipeline Mileage by Decade of Construction
Compare PPTS 143.6 K miles with 157 K OPS User
Fee Miles (91) 200 K Estimated Total Miles (72)
Survey Miles
Decade of construction data from Pipeline
Performance Tracking System updated 05/29/01
11
All Incidents and Pipeline Miles by Decade of
Construction
If share of incidents (?) is higher than share of
miles (?), decade has a high rate of incidents
per mile. If lower, decade has a low rate.
Causes based on Kiefner Assoc. classification
for ASME B31.4 Committee, 1986-99 line
pipe only excludes incidents where year of
installation was unspecified.
12
Findings and Recommendations

• General findings
• Specific recommendations for pipe
• Pre-1930s
• 30s and 40s
• 50s and 60s
• 1970 and later

13
Our vision is an oil pipeline industry that --

• conducts operations safely and with respect for
  the environment
• respects the privilege to operate granted to it
  by the public and
• provides reliable transportation of the crude oil
  and refined products upon which America and all
  Americans rely.
