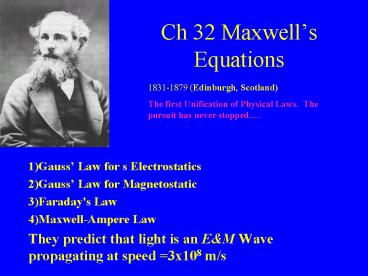

Ch 32 Maxwells Equations

1
Ch 32 Maxwells Equations
1831-1879 (Edinburgh, Scotland) The first
Unification of Physical Laws. The pursuit has
never stopped.

• 1)Gauss Law for s Electrostatics
• 2)Gauss Law for Magnetostatic
• 3)Faraday's Law
• 4)Maxwell-Ampere Law
• They predict that light is an EM Wave
  propagating at speed 3x108 m/s

2
Can you ever just get a north pole or a south
pole ???
3
Gausss Law for Magnetism

• Reminder of the definition of magnetic flux

As of today 4/21/05 there is no evidence of
magnetic monopoles See Phys.Rev.Lett.855292,2000

4
Gausss Law for Magnetism

• Only magnetic dipoles exist

5
The Search for magnetic monopoles Goes ON!
Null result sets the lower bound on a monopole
mass to be about m295-495 GeV
6
Carl Friedrich Gauss 1777-1855
The total flux passing through a closed surface
is proportional to the charge enclosed within
that surface.
7
KEY TO USING Gausss Law

• The shape of the surrounding surface is one that
  MIMICS the symmetry of the charge distribution ..

8
Faraday Changing Flux due to moving permanent
magnet
1791-1867 British Physicist
9
Induced EMF produced by a changing Magnetic
Flux!
10
Induced electric fields
We will assume here that B is increasing into
the page
11
Electric Field circulates about a changing
magnetic field (into the page here)
12
Maxwell thought is there a symmetry here? Can
there be a circulating magnetic field around a
changing electric field?
Maxwells Law of Induction
WAIT!!! Didnt we already see that B circulates
around a current carrying WIRE ?!!?
13
Recall Amperes Law Andre Marie Ampere
(1775-1836)
14
Long Straight Wire with a constant current
For rgtR, radius of wire the magnetic field must
have cylindrical symmetry
15
Ampere-Maxwell Law and Maxwells Displacement
current
16
Displacement Current
17
Maxwells Equations
18
Information AGE, Medicine, Engineering .

• Based on the physics of EM waves
• T.V. telecommuncations, radio transmission, radar

• Challenge of todays engineers to try to envision
  what global interconnections will be in 20 years
  (Halliday and Resnick 04)
• Starting point understanding Electro-mag waves
  which is summarized by Maxwells rainbow!

19
EM Waves and Maxwell

• Crowning achievement was to show that light is a
  traveling EM wave
• The basis for the study of optics! Phys. 213 and
  Dr. Romberger Phys. Science 440
• In mid 1800s only infrared, visible and
  ultraviolet forms of light were only EM waves
  know
• Heinrich Hertz later showed that what we call
  radio waves also ..

20
Maxwells Rainbow
21
Human Eye Sensitivity
22
Traveling Waves
Consider a transformer A generating LC circuit
which establishes a frequencey and a secondary
coil with a dipole antenna. You have a changing E
and B field coupled together!!! However, changes
dont appear instantaneously, they happen a the
speed of light with the disturbance traveling
outward at that speed. Will see
23
Looking toward the wave front the amplitudes are
related by the cross product Wave is
transverse/perpendicular to the direction of
travel Field vary sinusoidally
At speed of light!!
24
Traveling EM waveNo need for a medium on wave
generates the other. Prediction of Maxwells
equation and proved by Einstein with a little bit
of symmetry 1905 Phys. 214 next Fall!!!
25
Faradays Law of InductionMaxwells Law of
Induction
26
Faradays Law of induction
27
Maxwells Law of induction
28
The Wave Equation

• Source free region ie no wires and no charges

29
Spherical WaveEnergy
