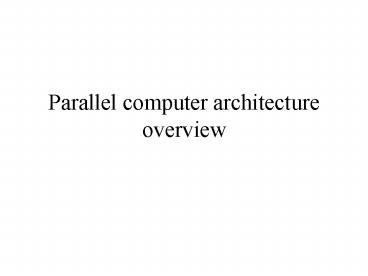

Parallel computer architecture overview

1
Parallel computer architecture overview
2

• Parallel computers definition A collection of
  processing elements that cooperate to solve
  large problems fast.
• Some broad issues that distinguish parallel
  computers
• Resources
• how large a collection?
• how powerful are the elements?
• how much memory?
• Data access, communication and synchronization
• how do the elements cooperate and communicate?
• how are data transmitted between processors?
• what are the abstractions and primitives for
  cooperation?
• Performance and scalability
• how does it all translate into performance?
• how does it scale?

3
Trend in parallel computer architecture
development

• History diverse and innovative organizational
  structures, often tied to novel programming
  models
• The architecture is often built around one or two
  good ideas in software or hardware.
• Rapidly matured under strong technological
  constraints
• The microprocessor is ubiquitous
• Laptops and supercomputers are fundamentally
  similar!
• Technological trends cause diverse approaches to
  converge
• Technological trends make parallel computing
  inevitable
• Mainstream computing
• Need to understand fundamental principles and
  design tradeoffs, not just taxonomies

4
Technology trend

• Figure from Pattersons parallel architectures
  book (1999)
• The performance of micro-processors is catching
  up with that of supercomputers.

5

• In terms of performance improvement, nothing
  beats micro-processors.
• To maintain the improvement, more and more
  supercomputer features are built in
  micro-processors.
• Use commodity micro-processors to build
  everything (if you cant beat them, join them).
• Mainframes and minicomputers pretty much
  disappear in todays world, replaced by server
  farms (clusters of servers).
• Virtualization on clusters.
• Many supercomputers are clusters of
  servers/workstations (see www.top500.org).

6
Parallel architectures

• Shared memory architectures
• Distributed memory architectures
• Hybrid

7
Shared memory architectures

• All processors access all memory as global
  address space
• Changes made by one processor are visible by
  other processors
• Two types based on the differences in memory
  access speed
• Uniform memory access (UMA)
• Non-uniform memory access (NUMA)

8
UMA Shared memory architecture (mostly bus-based
MPs)

• Micro on a chip makes it natural to connect many
  to shared memory
• dominates server and enterprise market, moving
  down to desktop
• Faster processors began to saturate bus, then
  bus technology advanced
• today, range of sizes for bus-based systems,
  desktop to large servers (Symmetric
  Multiprocessor (SMP) machines).

9
Bus bandwidth in Intel systems
10
NUMA Shared memory architecture

• Identical processors, processors have different
  time for accessing different part of the memory.
• Often made by physically linking SMP machines
  (Origin 2000, up to 512 processors).
• The next generation SMP interconnects (Intel
  Common System interface (CSI) and AMD
  hypertransport) have this flavor, but the
  processors are close to each other.

11
Cache coherence issue in shared memory
architecture

• Cache coherence
• There are multiple versions of data (memory copy,
  and cache copies).
• How to maintain a consistent system view?
• Need some mechanism to make the memory system
  appear coherent.
• Cache coherence protocols.

12
Shared memory architecture advantages and
disadvantages

• Advantages
• Globally shared memory provides user-friendly
  programming perspective to programmers.
• Disadvantage
• Lack of scalability
• No hope for UMA
• What about NUMA
• A lot of small traffic through the interconnect
• adding processors changes the traffic requirement
  of the Interconnect.
• Writing correct shared memory parallel programs
  is not straight forward.

13
Distributed memory architectures

• Processors have their own local memory. Memory
  addresses in one processor do not map to another
  processor.
• no concept of global address space.
• No concept of cache coherency.
• To access data in another processor, use explicit
  communication.

14
Distributed memory architectures

• The networks can be very different for
  distributed memory architectures
• Massively parallel processors (MPP) usually use
  a specially designed network (and node).
• IBM Bluegene, IBM SP series
• Clusters usually use commodity system/local area
  networks Infiniband, Quadrics, Myrinet, 10 Gbps
  Ethernet.
• Lemieux at PSC uses Quadrics
• Ranger (NO. 2 top supercomputer) at TACC uses
  Infiniband
• UC-TG at Argonne uses Myrinet
• The raw speed of the network matches that of the
  specially designed network.
• May not provide some customized support such as
  reduction network.
• Grid computers use the Internet as the networks.

15
Distributed memory architectures

• MPP, clusters and grid computers targets
  different types of applications
• MPP and clusters support tightly coupled
  applications (large amount of interactions among
  processes).
• Communicate every 1 microsecond.
• Grid computers can only support coarse-grain
  parallel applications or embarrassingly parallel
  applications.
• Communicate every second.

16
Advantages and disadvantages

• Advantages
• Memory is scalable with number of processors.
  Increase the number of processors and the size of
  memory increases proportionately.
• Each processor can rapidly access its own memory
  without interference and without the overhead
  incurred with trying to maintain cache coherency.

• Cost effectiveness can use commodity,
  off-the-shelf processors and networking
• Disadvantages
• The programmer is responsible for the details
  associated with data communication.
• It may be difficult to map existing data
  structures, based on global memory, to this
  memory organization.

17
Converging of the distributed and shared memory
architectures

• The contemporary distributed and shared memory
  architectures are converging.
• Nodal architectures have always been similar.
• Both requires high bandwidth and low latency
  interconnect.
• The hardware for these two types of machines
  becomes very similar.

18
Hybrid distributed memory systems

• SMP-CMP clusters are the current
  price/performance sweet spot.
• The architecture will dominate for the
  foreseeable future.
• Two-level hierarchy
• How to best use this type of architecture is
  still under heavy investigation.
