Developing a Distributed Data Dictionary Service

1

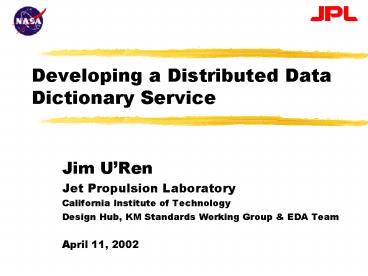

Developing a Distributed Data Dictionary Service

• Jim URen
• Jet Propulsion Laboratory
• California Institute of Technology
• Design Hub, KM Standards Working Group EDA Team
• April 11, 2002

2
Problem

• 1. Data dictionaries mean different things to
  different people
• Vocabularies - human readable collections of
  terms and definitions pertaining to a domain
• Data element dictionaries - machine interpretable
  collections of data elements (from ISO/IEC 11179)
• Schemas (information models) - structured,
  machine interpretable collections of information
  models consisting of structured relationships
  between data elements
• 2. Dictionaries do not communicate with each other

3
What is Needed

• A mechanism that can be used to access, publish,
  update, relate and integrate data dictionaries
  (vocabularies, data elements, and data models)
• Mechanism must be able to span domains and
  subdomains, e.g., engineering, science, and
  administrative
• Mechanism must have both manual and automated
  interfaces
• Mechanism should follow the distributed service
  model (e.g., DNS, Internet Domain Name Service,
  x.500 Directory, etc.)

4
A Solution

• Develop a distributed data dictionary service
  using
• LDAP Internet service protocol (LightWeight
  Directory Access Protocol)
• ISO11179 - a specification for standard data
  elements
• DSML XML DTD/Schema (Directory Service Markup
  Language)
• Dublin Core Meta-data
• the Service will store and relate vocabulary,
  data elements, and data model information

5
Advantages of LDAP

• LDAP has many advantages, including
• Universal Access - Internet directory standard,
  widely adopted and implemented by numerous
  vendors and open source software solutions
• Simple - a relatively simple, high-level protocol
  with a straightforward API
• Extensible - easily extended and adapted
• Access Control and Security - connections can be
  authenticated and secured layered Internet
  security mechanims
• Multi-Platform Development - C/C, Perl, Java,
  JavaScript, Python, PHP and other APIs are
  available, making LDAP services accessible from
  virtually any language, platform, or development
  environment

6
What is LDAP?

• An Internet Standard from an IETF working
  group
• RFC 1777 Lightweight Directory Access Protocol
• RFC 1778 String Representation of Standard
  Atribute Syntaxes
• RFC 1779 String Representation of Distinguished
  Names
• RFC 1959 LDAP URL Format
• RFC LDAP API
• A distributed, hierarchial data base
• Uses a multi-part naming convention to create
  unique records (distinguished names)
• cnbehaviour, dcvocabulary, dcPart233,
  dc10303, dcISO
• cnrequirement_set, dcdata-element, dcPart233,
  dc10303, dcISO
• cnTBR-apha1, dcshema, dcPart233, dc10303,
  dcISO
• Includes ability to implement multiple levels of
  security

7
Example of an LDAP tree
ISO
10303
14496
9000
. . .
237
235
. . .
233
203
210
209
Vocabulary
Schema
Data Elements
8
Advantages of ISO 11179

• an established international standard
• widely supported - US Census Bureau, NIST,
  Defense Information System Agency, Environmental
  Security, DoE, DoJ, Bureau of Labor Statistics,
  DoT, EPA, etc.
• Flexible use of elements within the schema
• Easily implemented in an LDAP directory service -
  flexible and easily configured LDAP servers well
  suited to flexible 11179 schema

9
Data Dictionary Components for a given namespace
10
A Distributed Data Dictionary Serviceusing
Standards-based technology LDAP Protocol ISO
11179 meta-data schema DSML Dublin Core
Prototype service viewable at http//step.jpl.nas
a.gov/ldap
Supporting Automated Processes
Supporting Validation Scenarios
Supporting Data Modeling Activities
Supporting Terminology Lookups
11
A Proposed Data Element Naming Convention

• A structured, multi-part naming system
• similar to IP addressing and URLs
• dot delimited names
• follows convention used by Dublin Core Meta-data
  Initiative
• short-name aliases could be supported in the
  planned distributed data dictionary service
• e.g. author DC.Creator, keywordDC.Subject,
  etc.
• Names would consist of domains, descriptors and
  qualifiers.

12
Examples of the Data Element Naming Convention
within JPL Domains

• Dublin Core Meta-data Initiative (a JPL adopted
  standard)
• DC.Date
• DC.Date.Created
• DC.Date.LastModified
• JPLs Planetary Data System (PDS)
• PDS.Target_Name
• PDS.Sampling_Factor
• JPLs Product Data Management System (PDMS)
• PDMS.Version
• PDMS.ReferenceDesignator
• JPL New Business System (NBS)
• NBS.HR.start_date
• NBS.HR.employee_status

13
Terminology Lookup Scenarios

• Resolving Ambiguous Terminology - an end user,
  needing to clarify use and meaning of a word used
  in a specific context, performs a multi-domain
  vocabulary lookup across multiple DD services
  looking for published vocabulary of referenced
  domain
• Finding the Correct Acronym - an end user,
  confronted with a number of new acronyms used in
  a presentation, accesses a local DD service to
  look up the acronyms based within probable
  domains, thereby eliminating the alternative
  meanings e.g., searching for STEP standards work
  versus the JPL STEP project
• Enabling Improved Search Engine Performance - as
  a search engine scans through a document, it
  discovers a keyword list and finds a reserved
  word the document includes a reference to a
  domain-specific vocabulary list in a DD service
  the search engine uses this vocabulary to be
  certain it is indexing the keywords in the right
  context
• Building Glossaries for Technical Papers - an
  engineer or scientist writing a technical paper,
  needs to include a glossary of relevant terms in
  the paper by performing a multi-service search,
  terms and definitions that relate to the topic of
  the paper are quickly found and inserted into the
  paper with the corresponding attributions

14
Validation Scenarios

• Validating Units of Measure - a system integrator
  receives an MCAD geometry model (e.g., STEP AP203
  Part 21 file) of a component to be integrated
  into any assembly automatically, a standard
  validation routine is performed against the
  schema located in a referenced data dictionary
  that checks for use of the units of measure
  called for in the contract and identified in the
  exchange file
• Enabling Automated Repository Check-In - as a
  STEP model is checked into a PDM system, an
  automated validation routine checks the model
  using the schema (located in the DD service) that
  is identified in the Part 21 data file
• Improving Quality of Data Handoffs - an MCAD
  geometry model is sent from design to thermal
  analysis and validation is performed using the
  correct schema version as referenced in the
  model validation is an automated process that
  occurs before any work is done with the model as
  it is transferred between domains
• Validating for Adequacy and Range the PDS
  (NASAs Planetary Data System) central node
  receives a dataset description in template format
  to be ingested into the dataset catalogue
  database. Automatically, a standard validation
  routine is performed that checks for required
  keywords, key word values and value types in the
  dataset in template format against a
  corresponding structure stored in the PDS domain
  of the data dictionary service

15
Data Modeling Scenarios

• Data Reuse in Modelling Activities- a data
  modeller, charged with developing an information
  model for a new application, uses data elements
  published in several DD services (much like a
  parts library), ensuring that the new information
  model will have compatible interfaces with data
  sets that share the same data elements or
  collection of elements
• Creating a TDP (technical data package) - an
  application performs a schema check against
  objects about to be wrapped into a TDP (e.g.,
  STEP AP232 or PDM Schema TDP) to ensure their
  correct structure and meta-data content
• Data Integration Enabled - an analyst, charged
  with integrating data from two or more data sets,
  accesses the correct version of each schema as
  referenced in the data set from the DD service
  space allowing them to identify/map interfaces
  between the data sets, e.g., MCAD-ECAD-cost data
• Extending a schema - to solve a "local" problem,
  a data modeller uses data elements from a
  published collection of data items to extend an
  existing official schema the new schema is
  published in the DD service with traces/links
  back to the official schema

16
Whats next? (Completing the prototype )

• Architecture development
• UML Model (50)
• Naming Convention (50)
• Linking ontology (25)
• Server configuration
• 2nd and 3rd DD test nodes (33)
• Wrapping existing DD DBs (10 )
• Client configurations
• LDAP URL (75 ) Java (33)
• Python (33) Perl (33)
• C/C (75) Unix Shell (25)
• PHP (25) Native clients(25)
