Guidelines for IPFIX Implementations on Middleboxes <draft-quittek-ipfix-middlebox-00.txt>

1

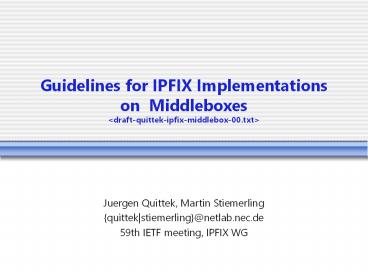

Guidelines for IPFIX Implementations on
Middleboxesltdraft-quittek-ipfix-middlebox-00.txtgt

• Juergen Quittek, Martin Stiemerling
• quittekstiemerling_at_netlab.nec.de
• 59th IETF meeting, IPFIX WG

2
Middleboxes

• A middlebox is defined as any intermediary
  device performing functions other than the
  normal, standard functions of an IP router on the
  datagram path between a source host and
  destination host. (RFC3234)

3
Middleboxes in RFC 3234

• 1. NAT,
• 2. NAT-PT,
• 3. SOCKS gateway,
• 4. IP tunnel endpoints,
• 5. packet classifiers, markers, schedulers,
• 6. transport relay,
• 7. TCP performance enhancing proxies,
• 8. load balancers that divert/munge
  packets,
• 9. IP firewalls,
• 10. application firewalls,
• 11. application-level gateways,
• 12. gatekeepers / session control boxes,
• 13. transcoders,
• 14. proxies,
• 15. caches,
• 16. modified DNS servers,
• 17. content and applications distribution
  boxes,
• 18. load balancers that divert/munge URLs,
• 19. application-level interceptors,

• Bold printed middleboxes
• act per packet
• do not modify application level payload
• do not insert additional packets
• Only those are considered.

4
Traffic Flow Scenarios

• Uni-directional traffic flow traversing a
  middlebox
• Uni-directional traffic flow traversing a
  middlebox with multicast function
• Bi-directional unicast traffic traversing a
  middlebox
• Bi-directional traffic flow traversing a tunnel
  endpoint

Middlebox
T
T
Middlebox
T_l
T_r
5
Location of Observation Point

• MUST clearly indicate location of observation
  point
• Observation point located within middlebox
• Leads to ambiguous result since packet properties
  may change in middlebox
• Example NAT must be clear if reported source IP
  address was observed before or after address
  translation
• Observation point should be located outside of
  the middlebox
• Observation point at composed middleboxes
• May be inside
• But MUST be located between middlebox functions

6
Reporting Flow-related Mbox Internals

• Even if observation point is located outside of
  middlebox reporting middlebox internals might be
  desirable.
• Recommendations given for
• Packet dropping middleboxes
• Middleboxes changing DSCP
• Middleboxes changing addresses
• IP addresses and port numbers
• Tunnel endpoints

7
Packet Dropping Middleboxes

• SHOULD report number of dropped packets per
  reported flow
• Considered middleboxes
• 1. NAT,
• 2. NAT-PT,
• 3. SOCKS gateway,
• 5. packet classifiers, markers, schedulers,
• 9. IP firewalls,
• 10. application firewalls

8
Middleboxes changing DSCP

• SHOULD report beside observed value of the DSCP
  also the value of the DSCP on the other side if
  the middlebox
• Considered middleboxes
• 5. Packet markers

9
Middleboxes changing addresses

• SHOULD report beside observed value also the
  translated value
• Translated value means value on other side of
  middlebox, independent of flow direction
• Considered middleboxes
• 1. NAT
• 2. NAPT
• 3. SOCKS gateway
• 21. Involuntary packet redirection
• Those middleboxes potentially modify
• IP version field
• IP source and destination address field
• TCP source and destination port number
• UDP source and destination port number

10
Tunnel endpoints

• SHOULD report corresponding tunnel ID

Report Tunnel ID
Report nothing
11
Open Issues

• Do NATS change DSCP?
• Investigate security implications of reporting
  middlebox internals
• Shall this become an IPFIX WG work item?
