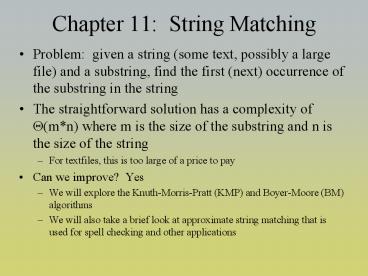

Chapter 11 String Matching

• Problem given a string (some text, possibly a
  large file) and a substring, find the first
  (next) occurrence of the substring in the string
• The straightforward solution has a complexity of
  ?(mn) where m is the size of the substring and n
  is the size of the string
• For textfiles, this is too large of a price to
  pay
• Can we improve? Yes
• We will explore the Knuth-Morris-Pratt (KMP) and
  Boyer-Moore (BM) algorithms
• We will also take a brief look at approximate
  string matching that is used for spell checking
  and other applications

2
Straightforward Algorithm

• Let s be our string and sub be our substring
• Start searching s and sub at position 0
• If we have a match, increment both string
  pointers
• If we have a mismatch, start over at s from the
  next position after the previous match began and
  start sub at 0

current1 0 current2 0 current 0 found
false while(!found current m
while(s.charAt(current1) sub.charAt(current2
)) current1 current2
if(current2 m) found true
else current
current1 current current2 0

current
s sub
Search until mismatch then realign to start at
current1
3
Example

• Consider s AAAAAAAAAAAAAAB and sub AAAB
• Start with current 0, current1 0, current2
  0
• We immediately have a match, so increment
  current1 and current2 and again, we have a match
• increment current1 and current2 and again, we
  have a match
• increment current1 and current2 and again, but
  now we have a mismatch
• So, reset current to 1, reset current1 to 1,
  reset current2 to 0 and start again and we will
  have 3 more matches
• And so on
• When do we finally get a full match? Only on our
  12th iteration of our outer while loop
• Number of comparisons 48, size of s 15, size
  of sub 4, the complexity is (n m 1) m,
• So, this search is ?(mn), much too inefficient

4
Knuth-Morris-Pratt Algorithm

• Observation from our previous example, notice
  that if we had a match in our substring of AAAB
  up to the B, what does that tell us?
• It tells us that the string has a sequence of
  AAAx (where x is some character other than B)
• Once we found a mismatch, did we have to start
  our substring matching over at 0? No, we could
  actually have realigned our matching to start at
  our last A in the substring
• we know that the string had AAAx
• if we start comparing our substring again
  starting in the strings next position, this is
  AAx, but we already know that AA matched, so the
  first two As do not need to be repeated
• so, lets realign our substring at a clever
  position and start matching from there if we do
  this successfully, it will reduce the complexity
  of our string searching

5
Creating an Align Array

• In order to figure out where to start searching
  in our substring, we need to figure out how to
  realign it to the string after a failure
• Note the book presents this idea as a finite
  automaton but this makes the idea somewhat more
  complicated that we need to think about
• In truth, we can just create an align array
• If we have a mismatch at character k in our
  substring, at what character do we start over
  again in the substring?
• The align array will tell us this
• Note the book calls this array fail, so we will
  call it that from now on
• If we have a mismatch at k, we realign sub to
  position failk

6
Character Repetition

• The fail array is generated by only considering
  the substring itself, looking for repetition
• Once repetition is found, we build on that
  repetition
• Reconsider our substring AAAB
• If we have a mismatch after the second A, it
  means that the preceding character in the string
  was A (for instance, we matched against AABB),
  and we do not need to start our substring over
  from the start, we already have 1 matching A
• If we have a mismatch after the third A, it means
  that two preceding characters have already
  matched (for instance, if the string is AAAC) so
  we already have 2 matching As
• So, we look for repetition in the substring
• What about ABCABC, is there repetition there?
  Yes, consider a mismatch against ABCABF after
  we match 5 characters, we have a mismatch, but we
  do not have to start our substring over, we
  already know there is a match up to AB

7
Generating the Fail Array

• This algorithm is somewhat tricky to understand
• We have a substring sub of length m
• fail1 is always 0 (we cannot fail before we
  have 1 comparison)
• If we fail after the first character, we must
  realign to the beginning and thus fail2 1
• However at this point, if we fail, it is based on
  repetition found

fail1 0 for(k2kfailk-1 more true while(s 1
more) if(sub.charAts !
sub.charAtk-1) sfails
else more false failk s1
Note that this algorithm iterates from
1..m whereas java and c arrays start at 0, so
we will have to make a modification when dealing
with java/c/c code
8
Complexity of Constructing Fail Array

• The complexity is no more than ?(m2)
• there is a for-loop that iterates m times and
  within the loop, we iterate while there is no
  repetition between the previous character (k-1)
  and the character at fails
• However, is it really as bad as ?(m2) ?
• If there is a match between (k-1) and fails
  then we exit the inner loop
• If there is no match, then we backup to fails
  which itself is a value based on a lack of
  previous repetition
• If there is no repetition for some character j,
  then failj 1, so if there is no repetition,
  we are all the way back to the beginning of the
  string and we exit the inner while loop
• So ultimately, the number of times through the
  inner while loop is bound by the amount of
  repetition
• This will be more apparent when we look at some
  examples next
• The complexity of this code is then ?(m)

9
Some Examples of the Fail Array

• AAAB
• fail1 0 and fail2 1 by default
• for k 3, let s fail2 1
• does sub.charAt(s) sub.charAt(k-1)? Yes A
  A so set failk s1 2
• for k 4, let s fail3 2
• does sub.charAt(s) sub.charAt(k-1)? Yes A
  A so set failk s1 3
• So AAAB has a fail array of 0, 1, 2, 3
• ABACAB
• fail1 0, fail2 1
• for k 3, let s fail2 1, since
  sub.charAt(s) ! sub.charAt(k-1) (no repetition
  between 2nd and 3rd characters), set s fails
  fail1 0, so fail3 s 1 1
• for k 4, let s fail3 1, since
  sub.charAt(s) sub.charAt(k-1) (there is
  repetition between 1st and 3rd characters), set
  failk s1 2
• for k 5, let s fail4 2, since sub.char(s)
  ! sub.charAt(k-1) (no repetition between 2nd and
  4th characters), set s fails fail2 1
• for k 6, let s fail5 1, since sub.char(s)
  sub.charAt(k-1) (repetition between 1st and
  5th characters), set failk s1 2
• So ABACAB has a fail array of 0, 1, 1, 2, 1, 2

10
More Fail Array Examples

• SSSSHH
• fail1 0, fail2 1
• k3, s fail2 1, repetition between 1st and
  2nd characters, so fail3 s 1 2
• k4, s fail3 2, repetition between 2nd and
  3rd characters, so fail4 s 1 3
• k5, s fail4 3, repetition between 3rd and
  4th characters, so fail4 s 1 4
• k6, s fail5 4, no repetition between 4th
  and 5th characters, so s fails fail4 3,
  no repetition between 3rd and 5th characters
  either, so s fails fail3 2, no
  repetition between 2nd and 5th characters, so s
  fails fail2 1, so fail6 1
• SSSSHH has a fail array of 0, 1, 2, 3, 4, 1
• ABCABC
• will have a fail array of 0, 1, 1, 1, 2, 3
• ABCDE
• Will have a fail array of 0, 1, 1, 1, 1

11
The KMP Scan Algorithm

• Now that we have seen how to generate the fail
  array, how do we use it?
• In the straightforward matching algorithm, for
  any mismatch, we started over at both the
  beginning of sub and at the next position in s
  after the first match
• Here, however, we have scanned successfully up
  through some point in s until we have a mismatch
• We need to realign sub appropriately using the
  fail array and continue searching s at the point
  of failure
• Code given to the right
• The complexity of this code is ?(n)
• Note KMPs complexity is ?(n m) because it
  requires first computing the fail array

match -1 j 1 k 1 while(j k if (k m) match j m //
success else if (k
0) j
k 1 // start pattern over
else if (s.charAt(j)
sub.charAt(k) j k
else k failk
12
Example

• s AABACAABACABAAB
• sub ABACAB with fail 0, 1, 1, 2, 1, 2
• Start with j1, k1, match, increment j and k
• At j2, k2, we have a mismatch, so reset k
  fail2 1 (start sub over)
• At j2, k1, match, increment j and k
• At j3, k2, match, increment j and k
• At j4, k3, match, increment j and k
• At j5, k4, match, increment j and k
• At j6, k5, match, increment j and k
• At j7, k6, mismatch (bummer), reset k fail6
  2
• At j7, k2, mismatch, reset k fail2 1
• At j7, k1, match, increment j and k
• At j8, k2, match, increment j and k
• matches at j9, k3, and j10, k4, and j11,
  k5
• At j12, k6, match, increment j and k
• k 7 m so we have found our substring at j-m
  (13-6 7)

13
Another Idea Boyer-Moore

• Consider if our substring is hello
• Rather than starting at position 1 in the string,
  lets look ahead to position 5 to see if it is an
  o
• If so, then I have to back up and check more of
  hello out, but what if it is not an o, does
  that tell me something?
• If I also determine that the 5th character is not
  an h, e, or l, I can jump ahead 5 more
  characters and try again
• If I can apply this idea correctly, I can improve
  over KMP by a factor of m, that is, instead of
  taking ?(nm) I should be able to perform my
  scanning in about ?(n/m m)
• Of course there are problems, how do I know if I
  can skip over m characters? I have to compare
  the character at position j of the string to all
  m characters of sub, which defeats the whole
  purpose unless I can be clever
• Also, if there are partial matches, I have to
  back up, so that reduces the improvement, but it
  will still be better than KMP

14
Jump Array

• Like KMPs fail array, we need an array to tell
  us where to reposition our substring
• But in this case, we will jump back in the string
  if we have a match of a character in s
• And jump ahead in the string if we have a
  mismatch
• The amount to jump back depends on character
  matched in sub
• The amount to jump ahead depends on how large sub
  is
• We compute this array in a similar way as to the
  KMP fail array see the code to the right

• Assign each letter of the alphabet to have a jump
  of m (jump over m characters)
• unless the character is an element of sub, then
  jump backward an appropriate amount to be at the
  potential beginning of sub in the string

char ch int k for(ch0 ch jumpch m for(k1kjumpsub.charAt(k)m k

• Notice that the first loop iterates once for
  every character in the alphabet
• ASCII has 128 characters
• Unicode has 65,536
• So, this algorithm is ?(alphabet m)

15
Enhancement

• Notice that if we have a match
• we may not have to compare all characters, only
  those until we have a mismatch
• and if we have a mismatch, we can take advantage
  of knowing the repetition in our substring to
  jump ahead some intermediate amount
• So, we enhance the skip array by including the
  KMP fail information
• This makes the algorithm to compute jump
  extremely complicated, we will skip the details
• the algorithm itself is given on page 501
• but the idea is that the jump array now
  represents how far to jump ahead on a miss and
  jump behind on a match
• The algorithm to compute the backward skips is
  ?(alphabet m)
• The algorithm to compute the forward jumps is
  ?(m)
• So, the overall complexity of computing jump in
  the Boyer-Moore algorithm is ?(alphabet m)

16
Boyer-Moore Scan Algorithm

• Like the KMP algorithm, the BM algorithm simply
  searches through both the string and substring
  looking for matches
• Upon a match however, we scan backwards
• On a mismatch, we jump either forward or backward
  depending on whether the character in the string
  exists in the substring at all or not
• This algorithm is given on page 503, but is
  omitted here
• The complexity of BM is, in the worst case, ?(n)
  but can improve to be as good as ?(n/m)
• Based on empirical studies, if m 5, BM only
  has to examine 24-30 of the text, a vast
  improvement over KMP which must examine 100 of
  the text!

17
Approximate String Matching

• A variation of the string matching application is
  to determine if a string partially matches
• This is much more difficult, what is a partially
  match?
• Consider the string approximate. Which of
  these are partial matches?
• aproximate approximately appropriate
  proximate approx approximat
  apropos approxximate
• A partial match can be thought of as one that has
  k differences from the string where k is some
  small integer (for instance 1 or 2)
• A difference occurs if the string1.charAt(j) !
  string2.charAt(j) or if string1.charAt(j) does
  not appear in string2 (or vice versa)
• The former case is known as a revise difference,
  the latter is a delete or insert difference (a
  character has been deleted or inserted)
• What about two characters that appear out of
  position? For instance, approximate vs.
  apporximate? Should that be 1 or 2 differences?
• A spell checker will determine the number of
  differences between the given word and all
  closely matching words in the dictionary and
  order the words based on number of differences
  (fewer differences at the top starting with 1
  difference and going to some maximum k such as
  k3)

18
Determining Differences a DP Solution

• Comparing two strings to determine the number of
  differences is challenging
• A dynamic programming example is given in section
  11.5 in which Dij is the number of
  differences that occur between characters 1..i of
  string1 and 1..j of string2
• We define 4 costs
• matchCost Di-1j-1 if string1.charAt(i)
  string2.charAt(j)
• reviseCost Di-1j-1 1 if string1.charAt(i)
  ! string2.charAt(j)
• insertCost Di-1j 1
• deleteCost Dij-1 1
• Dij minimum(matchCost, reviseCost,
  insertCost, deleteCost)
• Now, compute D for all i starting at 0 up to
  length of string 1 and for all j starting at 0 up
  to length string2
• If n is the size of the larger string (string2),
  and we are searching for up to k differences, the
  algorithm is ?(kn)
• A brief example is shown on page 508, table 11.2
