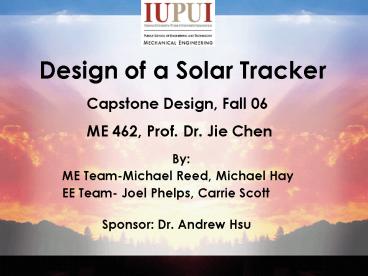

Design of a Solar Tracker

1
Design of a Solar Tracker
Capstone Design, Fall 06 ME 462, Prof. Dr. Jie
Chen

• By
• ME Team-Michael Reed, Michael Hay
• EE Team- Joel Phelps, Carrie Scott

Sponsor Dr. Andrew Hsu
2
Project Background
Why should the solar panel face the most
illuminating source of light?

• Increase Solar Panel Output
• Maximize Power per unit Area
• Provide Educational Demonstration of Renewable
  Energy

3
Project Background
Solar Panel Output
4
Design Requirements

• Customer Requirements
• Movement
• Smooth Transitions
• Simultaneous in 3-D
• Demonstrational
• Easy to Carry
• Futuristic Appearance
• Special Requirements
• Functions by it self
• Tracks Light
• Self-Contained
• Self-Sustaining (Power)

• Engineering Requirements
• Movement
• Slow Rotation minimal Jerk
• 2 Degrees of motion
• Demonstrational
• Light Weight, Compact
• Intriguing, Grasp Attention
• Special Requirements
• Functions Autonomously
• Faces most illuminating light
• Self-Contained
• Can Power itself indefinitely

5
Design Targets
6
Concept Design
7
Pro-E Design
8
(No Transcript)
9
Design Evaluation

• Areas of concern were analyzed using ANSYS
  workbench
• The main concern was whether the materials used
  in the design would be sufficient to hand the
  expected loads and forces on the system
• The loads applied were gravity and a 65 mph wind
  normal to the solar panel
• The system weight, size and functionality was
  also evaluated

10
Design Evaluation
11
Final Product

• Added Features
• Lockable door
• Safety Feature
• Battery Charger
• In case of long periods of inactivity
• Clear Display Casing
• Water Resistant
• With addition of cocking to the case

12
Does it work????
Stepper motors were unable to provide specified
torque

• The Problem

• Stepper Motor Rated Torque 0.280 Nm
• Experimentally Observed Torque 0.019 Nm

Overall the motors are providing 7 of their
rated torque and unable to turn either shaft
13
Product Evaluation
14
Conclusion
Engineering ..Targets
Customer Requirements
Design Phase
Product
The Mechanical Engineering portion of this
project is complete and meets our customers
requirements
15
Questions????
