LP earthquakes, Chouet Nature 1996

1

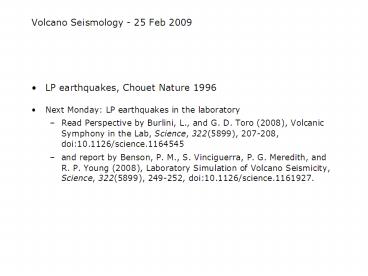

Volcano Seismology - 25 Feb 2009

• LP earthquakes, Chouet Nature 1996
• Next Monday LP earthquakes in the laboratory
• Read Perspective by Burlini, L., and G. D. Toro
  (2008), Volcanic Symphony in the Lab, Science,
  322(5899), 207-208, doi10.1126/science.1164545

• and report by Benson, P. M., S. Vinciguerra, P.
  G. Meredith, and R. P. Young (2008), Laboratory
  Simulation of Volcano Seismicity, Science,
  322(5899), 249-252, doi10.1126/science.1161927.

2
LP earthquakes, Chouet Nature 1996

• Source of LPs
• Eruption prediction based on LPs
• Introduction - VTs vs. LPs (and tremor)
• VTs
• are more spread out in space and time
• originate in the solid rock
• LPs
• are typically shallow
• Exceptions (e.g., Pinatubo, Mauna Loa) sometimes
  precede eruptions

• LPs and tremor have similar temporal and spectral
  components indicting a common source process

• Related to pressurization of magmatic and/or
  hydrothermal fluids and the coupling to the
  solid


3
LP earthquakes, Chouet Nature 1996

• Source of LPs
• Common at volcanoes, but not recognized due to
  different names

• B type, screw (tornillo), butterfly, N-type,
  tremor-like earthquakes, single-frequency
  earthquakes

• Waveform characteristics had been commonly
  attributed to path affects, but studies show
  source affects are more important

• Artificial source studies show broadband
  characteristics

• Many types of events originate from same source
  region

• Originate in fluid
• Magma conduit
• Water/steam/gas-filled cracks adjacent to
  conduit

• VTs originate in rock - brittle failure events

4
Example LP earthquakes

• All signals have a harmonic coda following a
  higher-frequency onset

• HF onset is absent at larger distances
• Note that some might call these hybrid events
  due to the HF onset

• Typical frequency range 0.2-2 Hz (0.5-5 sec
  period)

• h - source depth
• r - epicentral distance

5
Example volcanic earthquakes

• Waveforms and spectrograms from Redoubt
• LP, hybrid and shallow VT occurred 1.4-1.7 km
  below crater

• LP
• Dominant f1.5Hz
• Broadband onset
• Hybrid (mixed 1st motions)
• Non-dispersive coda
• Shallow VT
• Broadband body waves
• Dispersive coda not obvious
• Deep VT
• Shorter coda (less efficient at generating
  surface waves)


• Tremor
• resembles LP spectral content
• Dominant f1.5Hz

6
Source processes

• Classification based on source process offers a
  way to interpret seismicity in terms of processes
  in the fluid or solid

• Shear and tensile sources are in solid
• Related to response of volcano to pressure,
  cooling, etc.

• Volumetric sources in fluid-filled bodies
• Fluid (gas or liquid) may be magmatic or
  hydrothermal in origin

• Kilaua - basalt magma with gas
• Many other places steam seems most likely
• Hybrid events represent a class that involves
  both brittle failure and volumetric components

• Shear failure in conduit wall or faults
  connecting fluid-filled cracks

• High pressure (greater than lithostatic) fluids
  could induce fracture - hydrofrac


7
Source processes

• Chouets source hypothesis
• Shallow LPs and tremor are manifestations of
  pressurization in a magmatic/hydrothermal system

• Offer a window into fluid dynamics
• If LP activity is more intense, pressure is
  greater - eruption potential is greater

• Sealed system may support strong pressurization
  and energetic LP swarm

• Redoubt (1980) - a few events per minute -
  sealed, pressurized system

• Galeras (1993) - 1-2 events per day - leaky
  system

• Mount St. Helens (2005) event every few minutes
• Crack model for LPs
• Acoustic signal consistent with emission for
  every event

8
Event families

• Repeating similar events are commonly seen
• Suggests a common, nondestructive source process,
  such as

• Repeated excitation in a fluid-filled conduit
  capable of resonance

9
Event families
10
Chouets crack model

• Crack might be most reasonable shape given
  differential stresses - dikes seem common to many
  systems

• Two important parameters
• Crack stiffness, C
• Controls resonant frequencies
• Impedance contrast, Z
• Controls duration of radiated signal and affects
  frequency

• Fluid viscosity
• Related to energy loss and signal duration

11
Chouets crack model

• Crack stiffness, C
• Velocity of crack wave decreases with increasing
  C

• As crack stiffness increases resonant frequency
  decreases

• Permits reasonable crack sizes for explaining
  observed resonant frequencies

• Related to
• aspect ratio (crack length aperture)
• Ratio bulk modulus fluidshear modulus crack

12
Chouets crack model

• Impedance contrast, Z
• Solid density X solid ? fluid density X fluid
  acoustic velocity

• Increased bubble content increases Z by
  decreasing fluid density and velocity

13
Chouets crack model

• Radiated seismic signal
• Spectrum related to ratio of crack width to
  length as well as C and Z

• Note that you dont need a large crack to have
  low frequencies (large C), just a large aspect
  ratio

14
Synthetic LP earthquakes

• a) Galeras LP
• b) synthetic LP
• c) spectra of both
• Z15
• C100
• L/d3600

15
Synthetic LP earthquakes

• Most spectral peaks due to path effects, but
  consistent 3.8 Hz peak associate with source
  resonance

• Other peaks vary according to receiver location

16
Synthetic LP earthquakes

• Peaks associated with resonant source are
  independent of source-receiver location

• Peaks associated with path effects vary according
  to crack position

• Crack resonance is the same for both the
  homogeneous and layered medium

• Although there are significant differences in the
  spectra, LP and tremor have similar dominant
  peaks


17
MSH LPs

• Stacking of spectra from receivers with distinct
  locations should enhance source-related spectral
  peaks and attenuate path effects

18
MSH LPs

• 1.7 Hz peak always observed, but not always the
  dominant peak

• Why?

19
LP earthquakes - Model for Mt. Redoubt

• Model for LP earthquakes and time history of
  LP and tremor intensity at Redoubt on 13-14 Dec,
  1989.
