Whats a Pattern Whats an Idiom

1

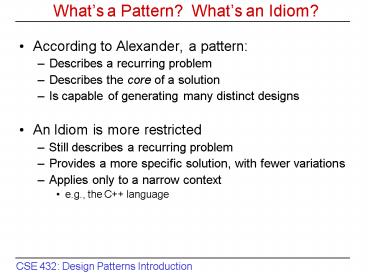

Whats a Pattern? Whats an Idiom?

• According to Alexander, a pattern
• Describes a recurring problem
• Describes the core of a solution
• Is capable of generating many distinct designs
• An Idiom is more restricted
• Still describes a recurring problem
• Provides a more specific solution, with fewer
  variations
• Applies only to a narrow context
• e.g., the C language

2
Gang of Four Pattern Structure

• Gang of Four (GoF) Gamma, Johnson, Helm,
  Vlissides
• Authors of the popular Design Patterns book
• A pattern has a name
• e.g., the Command pattern
• A pattern documents a recurring problem
• Design forces that constrain the solution space
• e.g., Issuing requests to objects without knowing
  in advance whats to be requested or of what
  object
• A pattern describes the core of a solution
• e.g., class roles, relationships, and
  interactions
• Important this is different than describing a
  design
• A pattern considers consequences of its use
• Trade-offs, unresolved forces, other patterns to
  use

3
Simple Pattern Form Example Singleton

• Problem
• Want to ensure a single instance of a class,
  shared by all uses throughout a program
• Context
• Need to address initialization versus usage
  ordering
• Solution
• Provide a global access method (e.g., a static
  member function in C)
• First use of the access method instantiates the
  class
• Constructors for instance can be made private
• Consequences
• Object is never created if its never used
• Object is shared efficiently among all uses

4
A More Complete Pattern Form Command

• Problem
• Want to issue requests to objects
• Dont know in advance which request(s) will be
  made
• Dont know in advance to what object(s) they will
  go
• Solution core
• Encapsulate function call parameters and target
  object reference inside an execute method
• Consequences
• Decouples invocation/execution
• Commands are first-class objects (elevates
  functions)
• Easy to compose, add new ones
• Example weve seen already
• STL function objects

5
Structure Diagram Example Command

• Shows fixed class/interface roles in the pattern
• Shows fixed relationships between roles

client role
command role



execute ( )
inheritance


execute ( )
action(args)
state_
6
Collaboration Diagram Example Command

• Shows dynamic interactions between pattern roles
• Labels show what interaction does (here, labels
  show methods called)
• Often used to diagram each of several key
  scenarios
• Happy path when everything works, plus
  different error cases

aCommand
anInvoker
aClient
aReceiver
construct
store
time
/ /
/ /
/ /
/ /
execute
action
7
Idiom Example Guard

• Problem
• Want to tie key scoped behaviors to actual
  program scopes
• e.g., program trace, resource acquisition/release,
  locking
• However, tying functions to functions is
  error-prone
• e.g., forgetting the release call, exceptional
  return paths
• Solution
• Design a special adapter class whose constructor
  and destructor call the key scope entry and exit
  behaviors
• Create a guard object on the program call stack
  (in a scope)
• Context limitations
• Mainly limited to languages with
  constructor/destructor

8
What is a Pattern Language?

• A pattern resolved some forces
• But may leave others unresolved
• Applying additional patterns helps resolve them
• Repeat until all forces are resolved
• A well-chosen sequence of patterns
• Resolves all design forces adequately
• Is some times called generative
• Self-consistent, can produce/generate a good
  design
• A pattern language is a narrative
• Of the trade-offs in navigating from requirements
  to design
• Chapters in Pattern Hatching give small pattern
  languages
• This is different than a pattern catalog (the GoF
  book)

9
Pattern-Oriented Design

• Well start by outlining a simple design exercise
  (Part I)
• Idea maintain a portfolio of stocks and bonds
• Design goals
• Traverse the portfolio and print out each element
• Print out the portfolio in different orders
• Provide a common interface to a single portfolio
  instance
• Calculate current and projected values of the
  portfolio
• Well see how key patterns drive the design (Part
  II)
• Iterator access elements sequentially no matter
  how stored
• Factory method create a related type
  polymorphically
• Singleton provides access to a single instance
• Strategy makes behaviors pluggable via common
  interfaces
• Adapter converts an interface you have into one
  you want
• Visitor allows interaction with heterogeneous
  collections
• Well talk about how weve evolved a pattern
  language (Part III)
• Can be reused different design settings where the
  same issues arise

10
Part I Design Exercise Outline

• Idea keep track of a portfolio of stocks and
  bonds
• Abstractly, both stocks and bonds are securities
• Each has a name, a number of shares, a current
  value, and a projected value
• Stocks and bonds are distinct abstractions,
  however
• Stocks can have a dividend thats paid out
  periodically
• Bonds can earn interest thats also paid out
  periodically
• Design goals
• Traverse the portfolio and print out each element
• Print out the portfolio in different orders
• Provide a common interface to a single portfolio
  instance
• Calculate current and projected values of the
  portfolio

11
Basic Abstractions Security, Stock, Bond

• struct Security
• Security (char name,
• int shares,
• int current_value,
• int projected_value)
• virtual Security ()
• char name_
• int shares_
• int current_value_
• int projected_value_
• struct Stock public Security
• Stock (char name, int shares,
• int current_value,
• int projected_value,
• int dividend)
• virtual Stock ()

struct Bond public Security Bond (char
name, int shares, int current_value,
int projected_value, int interest)
virtual Bond ()   int interest_
12
Portfolio Abstraction A Collection of Securities

• class Portfolio
•   public
• enum error_condition
• not_found 1, already_there
• Portfolio ()
• virtual Portfolio ()
• void add (Security ) // takes ownership
• void remove (Security ) // releases
  ownership
• void print ()
• int current_value ()
• int projected_value ()
•
• private
•
• deque securities_
• // prevent copy construction, assignment
• Portfolio (const Portfolio )

13
Part II Applying Patterns to the Design

• Now well look at how key patterns drive the
  design forward
• Iterator access elements sequentially no matter
  how stored
• Factory method create a related type
  polymorphically
• Singleton provides access to a single instance
• Strategy makes behaviors pluggable via common
  interfaces
• Adapter converts an interface you have into one
  you want
• Visitor allows interaction with heterogeneous
  collections
• Our first challenge is how to iterate through the
  collection of securities in the portfolio so that
  we can print out its contents
• Motivates use of the Iterator pattern here, in
  ways that should be familiar
• Motivates use of the Factory Method pattern, also
  in familiar ways
• Well look at each of these patterns first
• Then well look at code that takes advantage of
  them

14
Iterator Pattern

• Problem
• Want to access aggregated elements sequentially
• E.g., traverse a container of securities and
  print them out
• Context
• Dont want to know/manage details of how theyre
  stored
• E.g., could be in a list or an array, but in fact
  theyre kept in a deque (nicely balances ease of
  sorting, iteration, addition, and erasure)
• Solution core
• Provide an interface for iteration over each
  container
• Consequences
• Frees user from knowing details of how elements
  are stored
• Decouples containers from algorithms (crucial in
  C STL)
• Other examples weve seen before
• C pointers, C STL listiterator

15
Factory Method Pattern

• Problem
• You want a type to create another related type
  polymorphically
• E.g., a container should create appropriate begin
  and end iterators
• Context
• Each type knows which related type it should
  create
• Solution core
• Polymorphic creation
• E.g., declare abstract method that derived
  classes override
• E.g., provide traits and common interface as in
  the STL (what well use)
• Consequences
• Type thats created matches type(s) its used
  with
• E.g., appropriately positioned dequeiterators are produced by the deque
  begin() and end() methods

16
Basic Use of Iterator, Factory Method Patterns

• void Portfolioprint ()
• for (dequeiterator i
  securities_.begin()
• i ! securities_.end() i)
• cout shares_ (i)-name_
• (i)-current_value_
• (i)-projected_value_
•
• cout current_value()
• cout projected_value()

• Now onto the next design challenges well address
• Only need a single portfolio instance, want easy
  access to it
• Well see how the Singleton pattern helps with
  this
• Want to sort the portfolio in different ways
  before printing it
• Well see how the Strategy and Adapter patterns
  help with this

17
Singleton Pattern

• Problem
• Want to ensure a single instance of a class,
  thats shared by all uses throughout a program
  (e.g., the Portfolio)
• Context
• Need to address initialization versus usage
  ordering
• Solution core
• Provide a global access method (static member
  function)
• First use of the access method instantiates the
  class
• Constructors for instance can be hidden (made
  private)
• Can hide destructor too if a fini method is
  also provided
• Consequences
• Object is never created if its never used
• Object is shared efficiently among all uses

18
Basic Use of the Singleton Pattern

• class Portfolio
• public
• static Portfolio instance()
• static void fini()
• private
• static Portfolio instance_
•   Portfolio ()
• virtual Portfolio ()
• Portfolio Portfolioinstance_ 0
• Portfolio Portfolioinstance()
• if (instance_ 0)
• instance_ new Portfolio
• return instance_

int main (int, char )   try   Bond b
new Bond ("City Infrastructure",
10, 2, 3, 5) Stock s new Stock
("Alice's Restaurant",
20, 7, 11, 13) Portfolioinstance()-add
(b) Portfolioinstance()-add (s)
Portfolioinstance()-print ()
Portfoliofini() catch (Portfolioerror_c
ondition e) cout cout -2   return 0
19
Strategy Pattern

• Problem
• Want to plug in a family of alternative
  parameters to modify behavior (e.g., for sorting
  the securities before printing them)
• Context
• Need a common interface for the family of
  parameters (e.g., less, greater, plus any
  parameters we want to define)
• Need polymorphic substitution of parameter
  objects
• Solution core
• Give the different parameter objects a common
  interface
• Plug these strategies in to modify other behavior
  (e.g., sort)
• Consequences
• Behavior of algorithms (etc.) is easily modified
• Can extend family of parameters as needed (see
  example)

20
(Attempted) Basic Use of the Strategy Pattern

• Wed like to have something like the code below
• Although the top part works, the bottom part
  doesnt
• STL algorithms take arguments by value (class
  slicing)
• Cant instantiate PrintOrderFunctor due to pure
  virtual
• Needs a better way to use the abstract base class

• struct PrintOrderFunctor
• virtual PrintOrderFunctor ()
• virtual bool operator () (Security lhs,
  Security rhs) const 0
• void Portfolioprint (PrintOrderFunctor ppof)

•
• if (ppof)
• sort (securities_.begin(), securities_.end(),
  ppof)
•

21
Adapter Pattern

• Problem
• We have an interface thats close to (but not
  exactly) what we need (cannot use it as is)
• Context
• Want to re-use an existing class
• Cant change its interface
• Impractical to extend class hierarchy more
  generally
• Solution core
• Wrap the interface we have with the interface we
  need
• Consequences
• For a bit more effort, get reuse of what you
  started with

22
Basic Use of the Adapter Pattern

• struct PrintOrderFunctor
• virtual PrintOrderFunctor ()
• virtual bool operator () (Security lhs,
  Security rhs) const 0
• struct PrintOrderFunctorAdapter
• PrintOrderFunctor pof_
• PrintOrderFunctorAdapter (PrintOrderFunctor
  pof) pof_(pof)
• bool operator () (Security lhs, Security
  rhs) return pof_(lhs, rhs)
• void Portfolioprint (PrintOrderFunctor ppof)

• if (ppof) PrintOrderFunctorAdapter pofa
  (ppof)
• sort (securities_.begin(),
  securities_.end(), pofa)
•

• One last design challenge (at least for the
  moment)
• How can we calculate the projected value of the
  portfolio?
• Need to consider either stock dividend or bond
  interest
• How can we know which is which when traversing
  the securities?

23
Visitor Pattern

• Problem
• We have a heterogeneous collection of objects
  over which we need to perform type-specific
  operations
• Context
• Run-time type identification adds overhead and
  complexity
• Want to avoid unnecessary interactions among
  types
• Types in collection change less frequently than
  the set of operations that are to be performed
  over them
• Solution core
• Modify types in the collection to support double
  dispatch
• Consequences
• Once modified in this way, any of the types can
  handshake with arbitrary visitors to give
  correct behavior

24
Basic Use of the Visitor Pattern

• struct SecurityVisitor
• virtual SecurityVisitor()
• virtual void
• visit_stock (Stock ) 0
• virtual void
• visit_bond (Bond ) 0
• struct Security
•
• virtual void
• accept (SecurityVisitor sv) 0
• void
• Stockaccept (SecurityVisitor sv)
• if (sv) sv-visit_stock(this)

struct ProjectedValueFunctor public
SecurityVisitor int value_
ProjectedValueFunctor (int value) virtual
ProjectedValueFunctor () void operator ()
(Security s) s-accept(this)
virtual void visit_stock (Stock s) if (s)
value_ s-shares_
(s-projected_value_
s-dividend_) virtual void visit_bond
(Bond b) if (b) value_ b-shares_
(b-projected_value_
b-interest_) int Portfolioprojected_v
alue () int value 0 for_each
(securities_.begin(),
securities_.end(), ProjectedValueFunct
or(value)) return value
25
Part III A Design Pattern Language

• Weve now evolved whats called a pattern
  language
• A recurring sequence of design patterns that can
  be applied to solve a recurring sequence of
  design challenges each time you see it
• To identify such pattern languages, look for
  repetition not only of individual patterns, but
  also of combinations and sequences of patterns
• Then, look for repetition of the design problems,
  and apply the language
• This pattern language can be reused when same
  issues arise
• E.g., any design involving a single collection of
  heterogeneous elements
• E.g., instead of a portfolio of stocks and bonds,
  a zoo of zebras and birds
• In parts IV to VI well evolve another design
  pattern language
• To address additional challenges raised by
  multiple interacting agents
• Well apply the pattern language to further
  extend todays design
• Well add multiple agents, each with their own
  portfolio
• Well add (closed agent-to-agent) cross trading
  of securities among them
• Well add a market to mediate event triggered
  open trading of securities

26
From Patterns to Pattern Languages

• So far weve looked at pattern-oriented software
  design
• We looked for key challenges at each step of the
  design process
• We matched each challenge with a suitable design
  pattern
• The pattern let us overcome that challenge and
  move on to the next one
• This lecture will take that same approach
• New focus additional design issues related to
  multi-agent interactions
• A fresh look at the Singleton pattern
• New design patterns (from Gamma et al.)
• Well talk about how sets of patterns are
  combined/navigated
• A look back at the design patterns weve used
  this week

27
Developing (and Using) a 2nd Pattern Language

• Well further extend our design from last time
  (Part I)
• Idea add agents who trade stocks and bonds
• Design goals
• Allow multiple agents, each with their own
  portfolio, who can trade directly
• Allow agents to enter and leave the group of
  agents currently trading
• Add a market to mediate event triggered open
  trading of securities
• Well see again how key patterns drive the design
  (Part II)
• Singleton variant provides key-discriminated
  access to a single instance
• Prototype a type can produce a duplicate
  instance of the same type
• Memento package up object state without
  violating encapsulation
• Command encapsulates a future function call
  inside a functor
• Observer tell registered observers when state
  changes
• Well see how weve evolved another pattern
  language (Part III)
• Can be reused in different design settings where
  the same issues arise
• I.e., many with interacting agents
  (interestingly, even distributed ones)

28
Part IV Design Exercise Outline

• Idea add agents who trade stocks and bonds
• We define an agent as a potentially
  independently acting software entity (software
  engineering notion rather than AI)
• Shifts the focus from a single portfolio to the
  group of agents
• Design goals
• Allow multiple agents, each with their own
  portfolio
• Support (closed agent-to-agent) cross trading of
  securities
• Need to consider all of the common data (shares,
  current and projected values, name) when testing
  securities for equivalence
• Assume trades are for all (or none) of the shares
  in a security object
• Add a market to mediate (event triggered) open
  trading
• Allow agents to enter and leave the group thats
  trading
• I.e., they can save and restore their portfolio
  and their reserve

29
Part V Applying Patterns to the Design

• First challenge each agent needs their own
  portfolio
• Dont let an agent access anothers portfolio
  (security)
• However, want to keep previous benefits of using
  singleton
• Reconsider how we have applied the Singleton
  pattern
• Need to maintain a separate portfolio instance
  per agent
• First access by an agent still creates their
  specific portfolio
• Still want a single global access method, but
  index into it
• Well use each agents memory address as the
  index key
• Simplifying assumption Agents memory locations
  are hard to infer
• Not true actually probe ksizeof(Agent) bytes
  away from this
• In practice youd use cryptographic keys instead
  for secure indexing

30
New Variation of the Singleton Pattern

• class Portfolio
• public
• static Portfolio instance(Agent )
• static void fini(Agent )
• ...
• private
• static map instances_
• Portfolio ()
• virtual Portfolio ()
• ...
• map Portfolioinstances_
• Portfolio Portfolioinstance(Agent a)
• Portfolio p 0
• mapiterator i
• instances_.find(a)
• if (i instances_.end())

void Portfoliofini(Agent a)
map iterator i
instances_.find(a) if (i ! instances_.end())
Portfolio p i-second
instances_.erase(i) delete p void
Agentbuy (Security s) int cost
s-shares_ s-current_value_ if
(cost reserve_) throw cannot_afford
Portfolioinstance(this)- add(s)
reserve_ - cost AgentAgent ()
Portfoliofini(this)
31
Buying and Selling Securities

• Second challenge how to duplicate securities
• We distinguish securities by their common data
  but not by their concrete types (or type-specific
  data)
• I.e., we encapsulate whether a security is a
  stock or bond
• I.e., use visitor to handshake with it as needed,
  otherwise dont care
• What if we need to give away a new instance?
• If we dont know a securitys type, do we create
  a stock or a bond?
• Could rewrite portfolios remove method to work
  around this
• Remove the security and return a pointer to it
  rather than destroying it
• However, may want this later (say for extension
  to sell part of shares)
• Motivates use of the Prototype pattern
• Creates an instance of the original type,
  polymorphically
• Similar in idea and implementation to Factory
  Method pattern
• Emulates virtual copy constructor (C doesnt
  have that)

32
Prototype Pattern

• Problem
• Need to duplicate objects with different dynamic
  types
• Context
• Virtual constructors are not available (e.g., in
  C)
• However, polymorphic method invocations are
  supported
• Solution core
• Provide a polymorphic method that returns an
  instance of the same type as the object on which
  the method is called
• Polymorphic method calls copy constructor,
  returns base class pointer or reference to
  concrete derived type
• Consequences
• Emulates virtual copy construction behavior
• Allows anonymous duplication of heterogeneous
  types

33
Use of the Prototype Pattern

• struct Security
• public
• virtual Security clone () 0
• ...
• Security Stockclone ()
• return new Stock(this)
• Security Bondclone ()
• return new Bond(this)

Security Agentsell (Security s)
Security current Portfolioinstance(this)
-find(s) if (current 0) throw
cannot_provide Security copy
current-clone() Portfolioinstance(this)-r
emove(current) reserve_ copy-shares_
copy-current_value_ return
copy
34
Adding State Persistence

• Third challenge allow agents to depart and
  return
• Need to save and restore agents portfolio and
  reserve
• Let agent serialize state to/from a persistent
  file, map, etc.
• Well only implement the save part for now
• Restore may draw on other patterns we wont cover
  (e.g., interpreter)
• Motivates use of the Memento pattern
• Serializes agents portfolio and reserve into
  opaque cookie
• Format of cookie can be tailored to storage
  format
• Also Motivates use of the Command pattern
• Encapsulates actions on objects within a functor
• Here, provides a different kind of double
  dispatch to collect strings representing the
  states of individual securities

35
Memento Pattern

• Problem
• Want to externalize state of an object without
  violating encapsulation
• Context
• A snapshot of object state is needed
• Providing a state interface would violate
  encapsulation
• Solution Core
• Create a memento class with methods to get, set
  state
• Provide an opaque representation of state itself
• Consequences
• Can use memento to send object state over a
  socket,
• save it in a file, put it into a checkpoint/undo
  stack, etc.

36
Command Pattern

• Problem
• Want to issue requests to objects
• Context
• Dont know in advance which request(s) will be
  made
• Dont know in advance to what object(s) they will
  go
• Solution core
• Encapsulate function call parameters and target
  object reference inside an execute method
• Consequences
• Decouples invocation/execution
• Commands are first-class objects (generalizes
  functions)
• Easy to compose existing ones, or add new ones
• Example weve seen already
• STL function objects

37
Use of the Memento and Command Patterns

• struct Security
• ...
• virtual string memento () 0
• ...
• string Stockmemento ()
• ostringstream oss
• oss
• string s oss.str() "\n"
• return s
• string Bondmemento ()
• ostringstream oss
• oss

struct MementoFunctor string str_
MementoFunctor (string str) str_(str)
void operator () (Security sec) str_
sec-memento() string Portfoliomemento
() string s for_each (securities_.begin(),
securities_.end(),
MementoFunctor(s)) return s string
Agentmemento () ostringstream oss oss name_ "\n" Portfolioinstance(this)-
memento() return s
38
Use of the Memento Pattern, Continued
void Caretakersave_me(Agent a) if (a
0) return mapiterator
i mementos_.find(a-name()) if (i
mementos_.end()) mementos_.insert(make_pair(
a-name(), a-memento()))
else i-second a-memento()
void Agentsave() Caretakerinstance(
)-save_me(this) void Agentrestore()
Caretakerinstance()-restore_me(this)

• class Caretaker
• public
• static Caretaker instance()
• void save_me(Agent a)
• void restore_me(Agent a)
• private
• Caretaker ()
• Caretaker ()
• map mementos_
• static Caretaker instance_

39
Adding a Market

• Fourth challenge need to coordinate market,
  agents
• Agents independently choose when (and whether) to
  trade
• Whenever a trade is made in the market, agents
  are notified
• Motivates use of the Observer pattern
• Helps to keep agents independent
• Separates registration, notification, trading
  interactions
• Allows coordination between market and the agents

40
Observer Pattern

• Problem
• Need to update multiple objects when the state of
  one object changes
• Context
• Multiple objects depend on the state of one
  object
• Set of dependent objects may change at run-time
• Solution core
• Allow dependent objects to register with object
  of interest, notify them of updates when state
  changes
• Consequences
• When observed object changes others are notified
• Useful for user interface programming, other
  applications

41
Use of the Observer Pattern

• class Market
• public
• static Market instance()
• void bind(Agent )
• void unbind(Agent )
• void make_advertisement()
• void fetch_advertisements()
• private
• ...
• void notify ()
• set observers_
• void Marketbind(Agent a)
• setiterator i observers_.find(a)
• if (i observers_.end()) observers_.insert(a)

• void Marketunbind(Agent a)
• setiterator i observers_.find(a)
• if (i ! observers_.end())

void Marketmake_advertisement()
notify() void Marketfetch_advertisements()
... void Marketnotify () for (setiterator i observers_.begin()
i ! observers_.end() i)
(i)-update() AgentAgent (const char
name, int reserve) name_(name),
reserve_(reserve) Marketinstance()-bind(th
is) AgentAgent () Marketinstance()-u
nbind(this) Portfoliofini(this) void
Agentupdate() Marketinstance()-fetch_adve
rtisements()
42
Part VI 2nd Design Pattern Language

• Weve evolved another pattern language
• A recurring sequence of design patterns that can
  be applied to solve a recurring sequence of
  design challenges each time you see it
• Think of the patterns as a design vocabulary
  that you can use
• E.g., combine command, proxy, and memento to
  serialize an object, send it from one computer to
  another across a socket, re-constitute it
• This pattern language can be reused when same
  issues arise
• E.g., designs for multiple interacting agents
  with similar requirements
• E.g., instead of agents and a market, client and
  server computers
• Gamma et al. (GoF Book) takes this idea of reuse
  even farther
• Shows how the patterns can be collected into a
  design evolution map
• Describes how the resulting pattern map can be
  reused

43
Summary

• Weve now looked at quite a few patterns
• Iterator access elements sequentially no matter
  how stored
• Factory method create a related type
  polymorphically
• Singleton provides access to a single instance
  (possibly per index)
• Strategy makes behaviors pluggable via common
  interfaces
• Adapter converts an interface you have into one
  you want
• Visitor allows interaction with heterogeneous
  collections
• Prototype allows polymorphic duplication of
  heterogeneous types
• Memento packages up object state without
  violating encapsulation
• Command packages up a function as an object
• Observer tell registered observers when state
  changes
• More importantly weve looked at how they can
  drive design
• From basic abstractions towards a working program
  (despite obstacles)
• A design vocabulary and related sequences
  within it
• CSE 432 focuses on combining patterns of this
  sort (design)
• CSE 532 focuses on other kinds of patterns
  (architectural)
