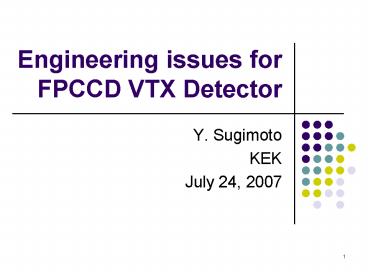

Engineering issues for FPCCD VTX Detector

1
Engineering issues for FPCCD VTX Detector

• Y. Sugimoto
• KEK
• July 24, 2007

2
FPCCD

• 5mm pixel size, 15mm epi-layer
• Accumulate signal during a train and read out
  between trains
• Moderate readout speed 10Mpix/s
• No power cycling
• Two wafers make a doublet, and three doublets
  make the detector
• Operate at low temperature 220K ?ladders are put
  inside a cryostat

3
Readout channels

• One readout channel covers 128x13000(L1-L2)/128x20
  000(L3-L6) pixels
• For outer layers, larger pixel size may be
  acceptable and could be 128x13000

4
Engineering challenge

• Power consumption and cooling method
• Wafer thinning and the ladder design
• Installation method
• .
• .
• .

5
Power consumption

• Heat source
• Ohmic loss in gate electrode (probably
  negligible)
• CCD source follower and load resister
• Readout ASIC
• Clock driver
• CCD and ASIC must be inside the cryostat
• Clock driver may be put outside the cryostat
• Most of power is consumed by drivers
• No heat source in the image area

Our RD goal Electronics lt 100 W in the
cryostat Mechanics Compatible with 100W
6
Power consumption

• RD status
• Sensor RD
• First custom CCD in FY2007
• 4ch/chip, 4 different source follower designs
• Smallest power consuming channel 10mW/ch
• Readout ASIC
• Amp, CDS, and charge-sharing SAR ADC
• Design completed, submission in September
• 4ch/chip
• lt 10mW/ch if output is not connected (driving
  100W load with 1V pulse consumes 10mW!)

7
Wafer thinning

• Two methods are considered
• Partial thinning by etching (like DEPFET collab)
• Easy to handle
• More material (thick frame)
• Total thinning by etching or mechanical method
• Less material
• Hard to handle (wire bonding OK?)
• Flatness ?

8
Partial thinning

• Sample CCDs Front side processed
• 300mm thick frame and 20mm thick image area
• Flatness is poor ? 20mm looks too thin

9
FEA of Ladders
RVC (Reticulated Vitreous Carbon)
Epoxy
Si (CCD wafer)
10 cm
Deformation by self-weight is calculated by FEA
program COMSOL
10
FEA of Ladders

• Parameters (assumption)
• Geometry

0.08X0/layer
11
FEA of Ladders

• Results
• Maximum deformation
• Without gap vmax0.536 mm
• With 0.2mm gap vmax0.723 mm
• For longer ladders
• vmax l4 ? 8.6 mm for 20cm ladder without gap

12
Summary and future prospect

• Among many engineering issues to be studied for
  FPCCD vertex detector, we have started study for
• Power consumption (sensor/ASIC RD)
• Wafer thinning and ladder design
• Due to lack of resources, these studies are at
  very primitive stage
• As a long term goal (2012?), construction of
  full size engineering model (dummy detector)
  would be necessary
