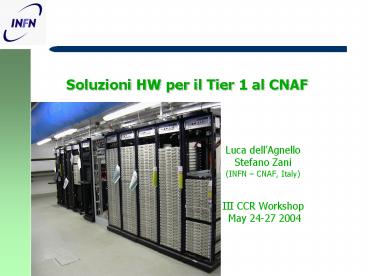

Soluzioni HW per il Tier 1 al CNAF

1
Soluzioni HW per il Tier 1 al CNAF

• Luca dellAgnello
• Stefano Zani
• (INFN CNAF, Italy)
• III CCR Workshop
• May 24-27 2004

2
Tier1

• INFN computing facility for HEP community
• Ending prototype phase last year, now fully
  operational
• Location INFN-CNAF, Bologna (Italy)
• One of the main nodes on GARR network
• Personnel 10 FTEs
• 3 FTE's dedicated to experiments
• Multi-experiment
• LHC experiments(Alice, Atlas, CMS, LHCb), Virgo,
  CDF, BABAR, AMS, MAGIC, ...
• Resources dynamically assigned to experiments
  according to their needs
• 50 of the Italian resource for LCG
• Participation to experiments data challenge
• Integrated with Italian Grid
• Resources accessible also in traditional way

3
Logistics

• Recently moved to a new location (last January)
• Hall in the basement (-2nd floor)
• 1000 m2 of total space
• Computing Nodes
• Storage Devices
• Electric Power System (UPS)
• Cooling and Air conditioning system
• Garr GPop
• Easily accessible with lorries from the road
• Not suitable for office use (remote control
  needed)

4
Electric Power

• Electric Power Generator
• 1250 KVA ( 1000 KW)
• ? up to 160 racks
• Uninterruptible Power Supply (UPS)
• Located into a separate room (conditioned and
  ventilated)
• 800 KVA ( 640 KW)
• 380 V three-phase distributed to all racks
  (Blindo)
• Rack power controls output 3 independent 220 V
  lines for computers
• Rack power controls sustain burden up to 16 or 32
  A
• 32 A power controls needed for Xeon 36
  bi-processors racks
• 3 APC power distribution modules (24 outlets
  each)
• Completely programmable (allows gradual servers
  switching on)
• Remotely manageable via web
• 380 V three-phase for other devices (tape
  libraries, air conditioning, etc)

5
Cooling Air Conditioning

• RLS (Airwell) on the roof
• 700 KW
• Water cooling
• Need booster pump (20 mts T1 ?? roof)
• Noise insulation
• 1 Air Conditioning Unit (uses 20 of RLS
  refreshing power and controls humidity)
• 12 Local Cooling Systems (Hiross) in the
  computing room

6
WN typical Rack Composition

• Power Controls (3U)
• 1 network switch (1-2U)
• 48 FE copper interfaces
• 2 GE fiber uplinks
• 34-36 1U WNs
• Connected to network switch via FE
• Connected to KVM system

7
Remote console control

• Paragon UTM8 (Raritan)
• 8 Analog (UTP/Fiber) output connections
• Supports up to 32 daisy chains of 40 nodes
  (UKVMSPD modules needed)
• Costs 6 KEuro 125 Euro/server (UKVMSPD module)
• IP-reach (expansion to support IP transport)
  evaluted but not used
• Autoview 2000R (Avocent)
• 1 Analog 2 Digital (IP transport) output
  connections
• Supports connections up to 16 nodes
• Optional expansion to 16x8 nodes
• Compatible with Paragon (gateway to IP)
• Evaluating Cyclades Alterpath KVM via serial line
  (cheaper)

8
Networking (1)

• Main Network infrastructure based on optical
  fibres ( 20 Km)
• To ease adoption of new (High Performances)
  transmission technologies
• To insure a better electrical insulation on long
  distances
• Local (Rack wide) links with UTP (copper) cables
• LAN has a classical star topology
• GE core switch (Enterasys ER16)
• NEW core switch is going to be shipped (Next
  july)
• 120 Gbit Fiber (Scale up to 480 ports)
• 12 10 Gbit Ethernet (Scale up to max 48 ports)
• Farms up-link via GE trunk (Channel) to core
  switch
• Disk Servers directly connected to GE switch
  (mainly fibre)

9
Networking (2)

• WN's connected via FE to rack switch (1 switch
  per rack)
• Not a single brand for switches (as for wn's)
• 3 Extreme Summit 48 FE 2 GE ports
• 3 3550 Cisco 48 FE 2 GE ports
• 8 Enterasys 48 FE 2GE ports
• 7 switch Summit400 48 GE copper 2 GE ports
  (2x10Gb ready)
• Homogeneous characteristics
• 48 Copper Ethernet ports
• Support of main standards (e.g. 802.1q)
• 2 Gigabit up-links (optical fibers) to core
  switch
• CNAF interconnected to GARR-G backbone at 1 Gbps.
• Giga-PoP co-located
• 2 x 1 Gbps test links to CERN, Karlsruhe

10
Network Configuration
Internal services
SSR8600
1st Floor
F.C.
F.C.
F.C.
F.C.
F.C.
FarmSWG2
Disk Server
F.C.
131.154.99.121
T1
S.Zani
11
L2 Configuration

• Each Experiment has its own VLAN
• Solution adopted for complete granularity
• Port based VLAN
• VLAN identifiers are propagated across switches
  (802.1q)
• Avoid recabling (or physical moving) of machines
  to change farm topology
• Level 2 isolation of farms
• Possibility to define multi-tag (Trunk) ports
  (for servers)

12
Power Switches

• 2 models used at Tier1
• Old APC MasterSwitch Control Unit AP9224
  controlling 3x8 outlets 9222 PDU from 1 Ethernet
• New APC PDU Control Unit AP7951 controlling 24
  outlets from 1 Ethernet
• zero Rack Unit (vertical mount)
• Access to the configuration/control menu via
  serial/telnet/web/snmp
• 1 Dedicated machine running APC Infrastruxure
  Manager Software (in progress)
• See also http//www.cnaf.infn.it/cnafdoc/CD0044.d
  oc

13
Remote Power Distribution Unit
Screenshot of APC Infrastruxure Manager Software
with the status of all TIER1 PDU
14
Computing units

• 400 1U rack-mountable Intel dual processor
  servers
• 800 MHz 2.4 GHz
• 240 wns ( 480 CPUs) available for LCG
• To be shipped June 2004
• 32 1U bi-processors Pentium 2.4 GHz
• 350 1U bi-processors Pentium IV 3.06 GHz
• 2 x 120 GB HDs
• 4 GB RAM
• 2159 euro each
• Tendering
• HPC farm with MPI
• Servers interconnected via Infiniband
• Opteron farm (near future)
• To allow experiments to test their software on
  AMD architecture

15
Storage Resources

• 50 TB RAW Disk Space ON LINE.
• NAS
• NAS1NAS4 (3Ware low cost) Tot 4.2 TB
• NAS2NAS3 (Procom) Tot 13.2 TB
• SAN
• Dell Powervault 660f Tot 7 TB
• Axus (Brownie) Tot 2 TB
• STK Bladestore Tot 9 TB
• Infortrend ES A16F-R Tot 12 TB
• IBM Fast-T 900 (in few weeks) Tot 150 TB
• See also
• http//www.lnf.infn.it/sis/preprint/pdf/INFN-TC-03
  -19.pdf

16
STORAGE resource
CLIENT SIDE
STK180 with 100 LTO (10Tbyte Native)
CASTOR Serverstaging
WAN or TIER1 LAN
RAIDTEC 1800 Gbyte 2 SCSI interfaces
IDE NAS1,NAS4 Nas4.cnaf.infn.it 18002000
Gbyte CDF LHCB
STK L5500 robot (max 5000) 6 LTO-2
Gadzoox Slingshot FC Switch 18 port
Fileserver CMS diskserv-cms-1
Fileserver Fcds2 Alias diskserv-ams-1
diskserv-atlas-1
Infortrend ES A16F-R 12 TB
PROCOM NAS2 Nas2.cnaf.infn.it 8100 Gbyte VIRGO
ATLAS
PROCOM NAS3 Nas3.cnaf.infn.it 4700 Gbyte ALICE
ATLAS
AXUS BROWIE Circa 2200 GByte 2 FC interface
DELL POWERVAULT 7100 GByte 2 FC interface
STK BladeStore Circa 10000 GByte 4 FC interface
FAIL-OVER support
17
Storage management and access (1)

• Tier1 storage resources accessible as classical
  storage or via grid
• Non grid disk storage accessible via NFS
• Generic WNs also have AFS client
• NFS mount volumes configured via autofs and ldap
• unique configuration repository eases
  maintenance
• in progress integration of ldap configuration
  with Tier1 db data
• Scalability issues with NFS
• Experienced stalled mount points
• Recent nfs versions use synchronous export
  needed to revert to async and use reduced rsize
  and wsize to avoid huge amount of retransmissions


18
Storage management and access (2)

• Part of disk storage used as front-end to CASTOR
• Balance between disk and CASTOR according to
  experiments needs
• 1 stager for each experiment (installation in
  progress)
• CASTOR accessible both directly or via grid
• CASTOR SE available
• ALICE Data Challenge used CASTOR architecture
• Feedback to CASTOR team
• Need optimization for file restaging

19
Tier1 Database

• Resource database and management interface
• Postgres database as back end
• Web interface (apachemod_sslphp)
• Hw servers characteristics
• Sw servers configuration
• Servers allocation
• Possible direct access to db for some
  applications
• Monitoring system
• Nagios
• Interface to configure switches and interoperate
  with installation system.
• Vlan tags
• dns
• dhcp

20
Installation issues

• Centralized installation system
• LCFG (EDG WP4)
• Integration with a central Tier1 db
• Moving from a farm to another implies just
  changes in IP address (not name)
• Unique dhcp server for all VLANs
• Support for DDNS (cr.cnaf.infn.it)
• Investigating Quattor for future needs

21
Our Desired Solution for Resource Access

• SHARED RESOURCES among all experiments
• Priorities and reservations managed by the
  scheduler
• Most of Tier1 computing machines installed as LCG
  Worker Nodes, with light modifications to support
  more VOs
• Application Software not directly installed on
  WNs but accessed from outside (NFS, AFS, )
• One or more Resource Manager to manage all the
  WNs in a centralized way
• Standard way to access Storage for each
  application
