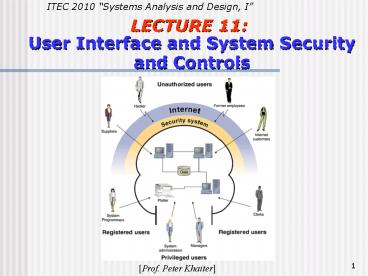

User Interface and System Security and Controls

1
ITEC 2010 Systems Analysis and Design, I
LECTURE 11
User Interface and System Security and Controls
Prof. Peter Khaiter
2
Topics

• Inputs and Outputs
• User and System Interface
• User-Centered Design
• Metaphors for HCI
• Designing System Inputs
• Designing System Outputs
• Designing Integrity Controls
• Designing Security Controls
• Managing User Access
• Data Security

3
Identifying and Classifying Inputs and Outputs

• Identified by analyst when defining system scope
• Requirements model produced during analysis
• Event table includes trigger to each external
  event
• Triggers represent inputs
• Outputs are shown as responses to events

4
Traditional and OO Approaches to Inputs and
Outputs

• Traditional approach to inputs and outputs
• Shown as data flows on context diagram, data flow
  diagram (DFD) fragments, and detailed DFDs
• OO approach to inputs and outputs
• Defined by message entering or leaving system
• Documented in system sequence diagram (SSD)?
• Actors provide inputs for many use cases
• Use cases provide outputs to actors

5
User versus System Interface

• System interfaces I/O requiring minimal human
  interaction
• User interfaces
• I/O requiring human interaction
• User interface is everything end user comes into
  contact with while using the system
• To the user, the interface is the system
• Analyst designs system interfaces separate from
  user interfaces
• Requires different expertise and technology

6
Understanding the User Interface

• Physical aspects of the user interface
• Devices touched by user, manuals, documentation,
  and forms
• Perceptual aspects of the user interface
• Everything else user sees, hears, or touches such
  as screen objects, menus, and buttons
• Conceptual aspects of the user interface
• What user knows about system and logical function
  of system

7
Aspects of the User Interface
8
User-Centered Design

• Focus early on the users and their work by
  focusing on requirements
• Usability - system is easy to learn and use
• Iterative development keeps focus on user
• Continually return to user requirements and
  evaluate system after each iteration
• Human-computer interaction (HCI)
• Study of end users and interaction with computers
• Human factors engineering (ergonomics)?

9
Metaphors for Human-Computer Interaction

• Direct manipulation metaphor
• User interacts with objects on display screen
• Document metaphor
• Computer is involved with browsing and entering
  data in electronic documents
• WWW, hypertext, and hypermedia
• Dialog metaphor
• Much like carrying on a conversation

10
Desktop Metaphor Based on Direct Manipulation
Shown on Display Screen
11
Document Metaphor Shown as Hypermedia in Web
Browsers
12
Dialog Metaphor Expresses the Messaging Concept
13
Guidelines for Designing User Interfaces

• Visibility
• All controls should be visible
• Provide immediate feedback to indicate control is
  responding
• Affordance
• Appearance of control should suggest its
  functionality purpose for which it is used
• System developers should use published interface
  design standards and guidelines

14
Eight Golden Rules for Interactive Interface
Design
15
Documenting Dialog Designs

• Done simultaneously with other system activities
• Based on inputs and outputs requiring user
  interaction
• Used to define menu hierarchy
• Allows user to navigate to each dialog
• Provides overall system structure
• Storyboards, prototypes, and UML diagrams

16
Overall Menu Hierarchy DesignEach Use Case is
Listed Under a MenuUtilities, Preferences, and
Help Are Added
17
Dialogs and Storyboards

• Many methods exist for documenting dialogs
• Written descriptions following flow of activities
  like in use case description
• Narratives
• Sketches of screens
• Storyboarding showing sequence of sketches of
  display screen during a dialog

18
Storyboard for the Downtown Videos Rent Videos
Dialog
19
Guidelines for Designing Windows and Browser
Forms

• Each dialog might require several windows forms
• Standard forms are widely available
• Windows Visual Basic, C, C, Java
• Browser HTML, VBScript, JavaScript, ASP, Java
  servlets
• Implementation
• Identify objectives of form and associated data
  fields
• Construct form with prototyping tools

20
Form Design Issues

• Form layout and formatting consistency
• Headings, labels, logos
• Font sizes, highlighting, colors
• Order of data-entry fields and buttons
• Data keying and data entry (use standard
  controls)?
• Text boxes, list boxes, combo boxes, and so on
• Navigation and support controls
• Help support tutorials, indexes,
  context-sensitive

21
Design for RMO Phone-Order Dialog

• Steps in dialog models
• Record customer information
• Create new order
• Record transaction details
• Produce order confirmation
• Traditional approach use structure charts
• OO approach expand SSD to include forms

22
Required Forms for RMO

• Main menu
• Customer
• Item search
• Product detail
• Order summary
• Shipping and payment options
• Order confirmation

23
Design Concept for Sequential Approach to Create
New Order Dialog
24
Design Concept for Order-Centered Approach to
Create New Order Dialog
25
Prototype Main Menu Form for Order-Centered
Approach to Dialog
26
Order Summary and Product Detail Forms
27
Completed Order Summary and Shipping Payment Forms
28
Identifying System Interfaces

• System interfaces are broadly defined as inputs
  or outputs with minimal or no human intervention
• Inputs from other systems (messages, EDI)?
• Highly automated input devices such as scanners
• Inputs that are from data in external databases
• Outputs to external databases
• Outputs with minimal HCI
• Outputs to other systems
• Real-time connections (both input and output)?

29
Just for Fun!
http//www.informationaddicts.com
30
Full Range of Inputs and Outputs
31
Design of System Inputs

• Identify devices and mechanisms used to enter
  input
• High-level review of most up-to-date methods to
  enter data
• Identify all system inputs and develop list of
  data content for each
• Provide link between design of application
  software and design of user and system interfaces
• Determine controls and security necessary for
  each system input

32
Input Devices and Mechanisms

• Capture data as close to original source as
  possible
• Use electronic devices and automatic entry
  whenever possible
• Avoid human involvement as much as possible
• Seek information in electronic form to avoid data
  re-entry
• Validate and correct information at entry point

33
Prevalent Input Devices to Avoid Human Data Entry

• Magnetic card strip readers
• Bar code readers
• Optical character recognition readers and
  scanners
• Radio-frequency identification tags
• Touch screens and devices
• Electronic pens and writing surfaces
• Digitizers, such as digital cameras and digital
  audio devices

34
Defining the Details of System Inputs

• Ensure all data inputs are identified and
  specified correctly
• Can use traditional structured models
• Identify automation boundary
• Use DFD fragments
• Segment by program boundaries
• Examine structure charts
• Analyze each module and data couple
• List individual data fields

35
Automation Boundary on a System-Level DFD
36
Create New Order DFD with an Automation Boundary
37
List of Inputs for Customer Support System
38
Data Flows, Data Couples, and Data Elements
Making Up Inputs
39
Using Object-Oriented Models

• Identifying user and system inputs with OO
  approach has same tasks as traditional approach
• OO diagrams are used instead of DFDs and
  structure charts
• System sequence diagrams identify each incoming
  message
• Design class diagrams and sequence diagrams
  identify and describe input parameters and verify
  characteristics of inputs

40
Partial System Sequence Diagram for Payroll
System Use Cases
41
System Sequence Diagram for Create New Order
42
Input Messages and Data Parameters from RMO
System Sequence Diagram
43
Designing System Outputs

• Determine each type of output
• Make list of specific system outputs required
  based on application design
• Specify any necessary controls to protect
  information provided in output
• Design and prototype output layout
• Ad hoc reports designed as needed by user

44
Defining the Details of System Outputs

• Types of reports
• Printed reports
• Electronic displays
• Turnaround documents
• Can use traditional structured models to identify
  outputs
• Data flows crossing automation boundary
• Data couples and report data requirements on
  structure chart

45
Table of System Outputs Based on Traditional
Structured Approach
46
Using Object-Oriented Models

• Outputs indicated by messages in sequence
  diagrams
• Originate from internal system objects
• Sent to external actors or another external
  system
• Output messages based on an individual object are
  usually part of methods of that class object
• To report on all objects within a class,
  class-level method is used that works on entire
  class

47
Table of System Outputs Based on OO Messages
48
Designing Integrity Controls

• Mechanisms and procedures built into a system to
  safeguard it and information contained within
• Integrity controls
• Built into application and database system to
  safeguard information
• Security controls
• Built into operating system and network

49
Objectives of Integrity Controls

• Ensure that only appropriate and correct business
  transactions occur
• Ensure that transactions are recorded and
  processed correctly
• Protect and safeguard assets of the organization
• Software
• Hardware
• Information

50
Points of Security and Integrity Controls
51
Input Integrity Controls

• Used with all input mechanisms
• Additional level of verification to help reduce
  input errors
• Common control techniques
• Field combination controls
• Value limit controls
• Completeness controls
• Data validation controls

52
Database Integrity Controls

• Access controls
• Data encryption
• Transaction controls
• Update controls
• Backup and recovery protection

53
Output Integrity Controls

• Ensure output arrives at proper destination and
  is correct, accurate, complete, and current
• Destination controls - output is channeled to
  correct people
• Completeness, accuracy, and correctness controls
• Appropriate information present in output

54
Integrity Controls to Prevent Fraud

• Three conditions are present in fraud cases
• Personal pressure, such as desire to maintain
  extravagant lifestyle
• Rationalizations, including I will repay this
  money or I have this coming
• Opportunity, such as unverified cash receipts
• Control of fraud requires both manual procedures
  and computer integrity controls

55
Fraud Risks and Prevention Techniques
56
Designing Security Controls

• Security controls protect assets of organization
  from all threats
• External threats such as hackers, viruses, worms,
  and message overload attacks
• Security control objectives
• Maintain stable, functioning operating
  environment for users and application systems (24
  x 7)?
• Protect information and transactions during
  transmission outside organization (public
  carriers)?

57
Security for Access to Systems

• Used to control access to any resource managed by
  operating system or network
• User categories
• Unauthorized user no authorization to access
• Registered user authorized to access system
• Privileged user authorized to administrate
  system
• Organized so that all resources can be accessed
  with same unique ID/password combination

58
Users and Access Roles to Computer Systems
59
Managing User Access

• Most common technique is user ID / password
• Authorization Is user permitted to access?
• Access control list users with rights to access
• Authentication Is user who they claim to be?
• Smart card computer-readable plastic card with
  embedded security information
• Biometric devices keystroke patterns,
  fingerprinting, retinal scans, voice
  characteristics

60
Data Security

• Data and files themselves must be secure
• Encryption primary security method
• Altering data so unauthorized users cannot view
• Decryption
• Altering encrypted data back to its original
  state
• Symmetric key same key encrypts and decrypts
• Asymmetric key different key decrypts
• Public key public encrypts private decrypts

61
Symmetric Key Encryption
62
Asymmetric Key Encryption
63
Digital Signatures and Certificates

• Encryption of messages enables secure exchange of
  information between two entities with appropriate
  keys
• Digital signature encrypts document with private
  key to verify document author
• Digital certificate is institutions name and
  public key that is encrypted and certified by
  third party
• Certifying authority
• VeriSign or Equifax

64
Using a Digital Certificate
65
Secure Transactions

• Standard set of methods and protocols for
  authentication, authorization, privacy, integrity
• Secure Sockets Layer (SSL) renamed as Transport
  Layer Security (TLS) protocol for secure
  channel to send messages over Internet
• IP Security (IPSec) newer standard for
  transmitting Internet messages securely
• Secure Hypertext Transport Protocol (HTTPS or
  HTTP-S) standard for transmitting Web pages
  securely (encryption, digital signing,
  certificates)?

66
The End!
http//www.visualjokes.com
